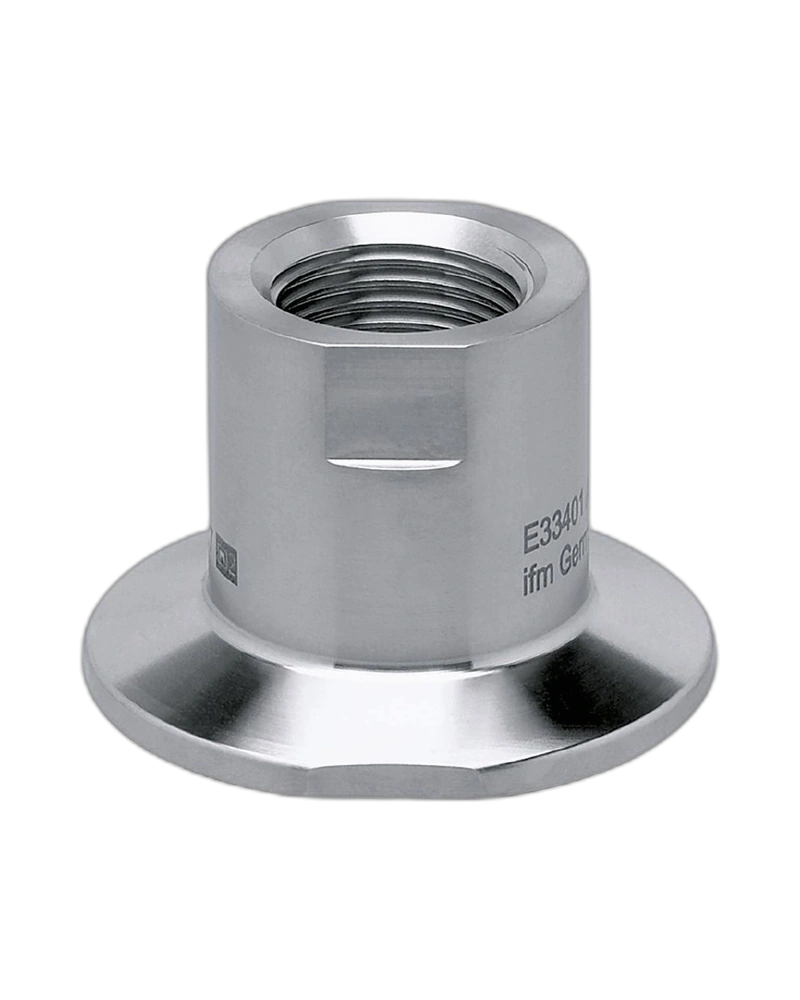

The IFM E33401 Tri-Clamp process adapter provides a hygienic connection between compatible process sensors and DN25 to DN40 sanitary pipe systems. It features a G1/2 sealing cone, DIN 32676 clamp connection and stainless steel 316L construction. With Ra < 0.4 µm surface characteristics and a 25 bar pressure rating, it is designed for reliable food, beverage and hygienic process installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33401 is a hygienic Tri-Clamp process adapter designed to connect compatible process sensors to sanitary pipe installations.
The adapter is manufactured from stainless steel 1.4435/316L and has smooth wetted-part surface characteristics of Ra < 0.4 µm / Rz = 4 µm.
The sensor side uses a G1/2 sealing cone, while the process side uses a DIN 32676 / ISO 2852 clamp connection suitable for DN25 to DN40 pipe sizes.
The E33401 has a pressure rating of 25 bar / 2.5 MPa. Its compact stainless steel construction provides a dependable connection for hygienic process sensor installations.
G1/2 sealing cone
DIN 32676 / ISO 2852 clamp connection
DN25 to DN40 process compatibility
Stainless steel 316L construction
Ra < 0.4 µm surface finish
25 bar pressure rating
Hygienic process design
Compact sensor mounting solution
Suitable for sanitary piping
Pack quantity of 1 piece
Food processing
Beverage processing
Sanitary pipelines
Process tanks
Pressure measurement
Fluid monitoring
Hygienic automation
Industrial process equipment
| Specification | Details |
|---|---|
| Product Code | E33401 |
| Product Type | Process adapter Tri-Clamp |
| Model | ADAPT G1/2-CLAMP DIN32676/1 |
| Sensor Connection | G1/2 sealing cone |
| Process Connection | Clamp DN25...DN40 |
| Standard | DIN 32676 / ISO 2852 |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Pressure Rating | 25 bar / 2.5 MPa |
| Weight | Approx. 204.5 g |
| Pack Quantity | 1 piece |
