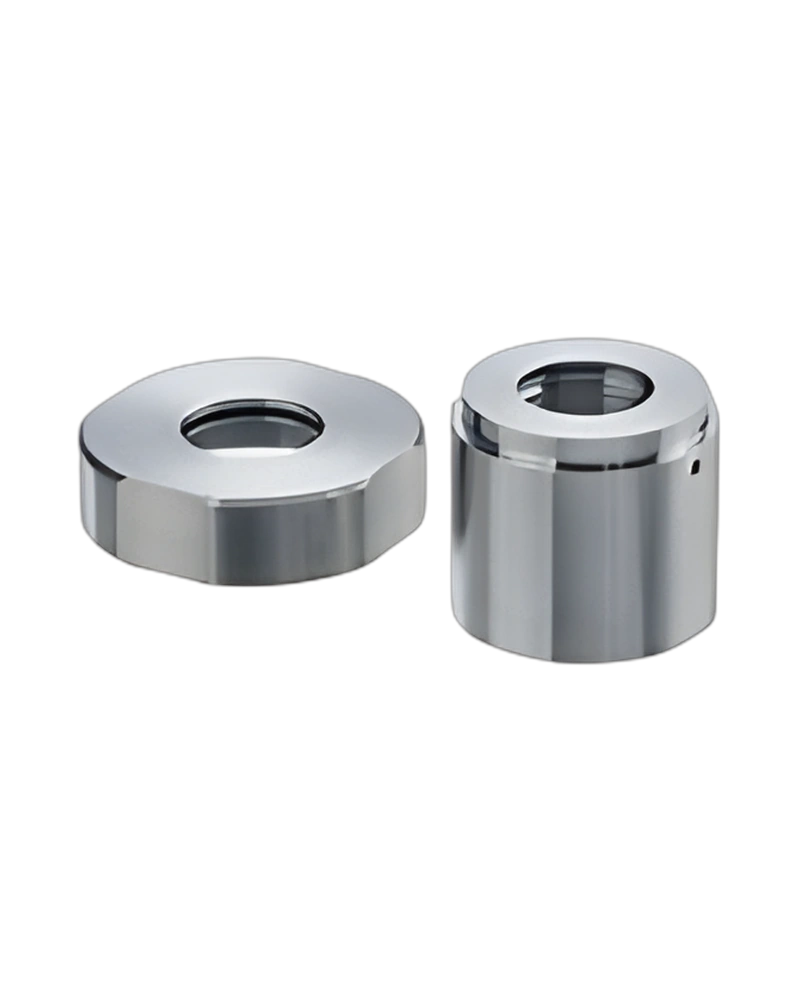

The IFM E33350 universal process adapter is designed for installing compatible process sensors into hygienic tanks and process vessels. It provides a G1 Aseptoflex Vario sensor connection and a stainless steel 316L construction with a smooth Ra < 0.4 µm surface. With a 16 bar pressure rating and H4 hygienic classification, it is suitable for food, beverage and sanitary process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33350 is a universal process adapter developed for secure installation of compatible process sensors in tanks and process vessels. Its design enables simple, fast and reliable sensor mounting.
The adapter is manufactured from stainless steel 1.4435/316L and provides smooth wetted-part surface characteristics of Ra < 0.4 µm / Rz = 4 µm. This makes it suitable for hygienic process environments.
The sensor side features a G1 Aseptoflex Vario connection for compatible IFM process sensors. The universal process side is designed for suitable tank shell installations.
The E33350 provides a 16 bar pressure rating and H4 hygienic equipment classification. EPDM, FKM and FDA-compliant sealing options support reliable installation in suitable process applications.
Universal process adapter design
G1 Aseptoflex Vario sensor connection
Stainless steel 316L construction
Ra < 0.4 µm surface finish
16 bar pressure rating
H4 hygienic equipment classification
Suitable for tank installation
Fast and secure sensor mounting
EPDM and FKM sealing options
Suitable for food and beverage applications
Hygienic process tanks
Food processing equipment
Beverage production systems
Process sensor installation
Pressure measurement
Fluid monitoring
Sanitary process equipment
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E33350 |
| Product Type | Universal process adapter |
| Model | ADAPT UNI |
| Sensor Connection | G1 Aseptoflex Vario |
| Process Connection | Universal process adapter |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Pressure Rating | 16 bar / 4 MPa |
| Hygienic Class | H4 according to DIN 11866 |
| Sealing | Gasket |
| Weight | Approx. 1019.3 g |
| Pack Quantity | 1 piece |
