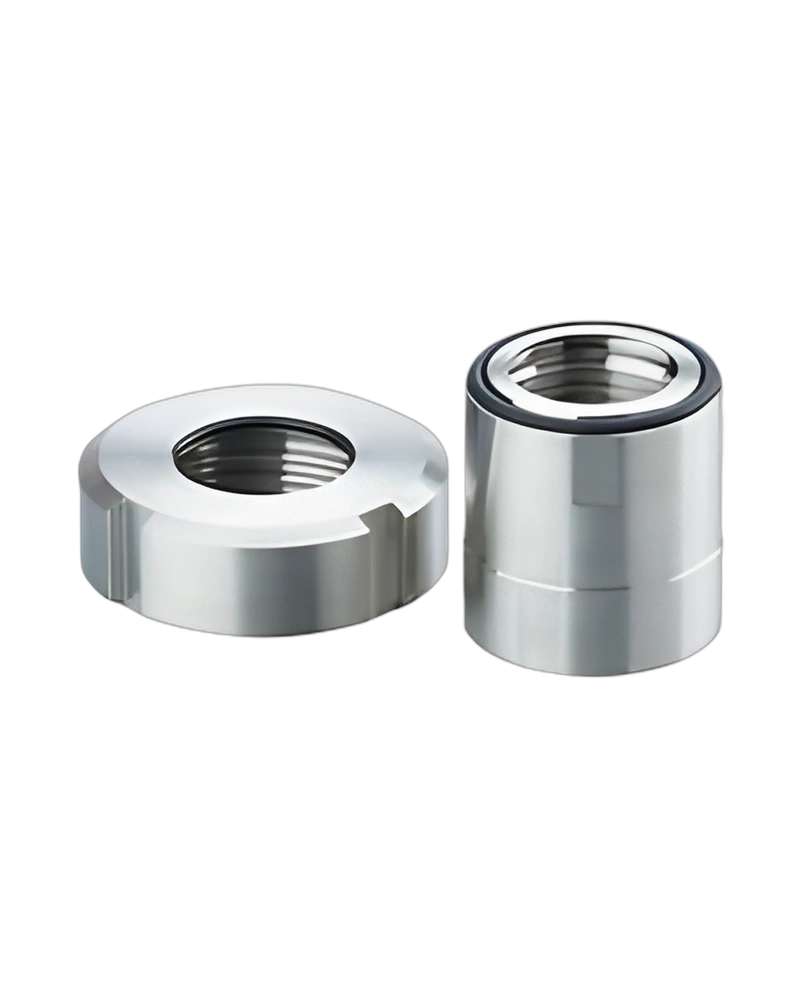

The IFM E33349 universal process adapter is designed for integrating Aseptoflex Vario process sensors with compatible RD52 universal process interfaces. It provides a G1 sensor connection, stainless steel 316L construction and smooth Ra < 0.4 µm wetted surface. The adapter includes leakage monitoring and multiple sealing options, supporting hygienic process installations with a 16 bar pressure rating.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33349 is a universal process adapter developed for connecting compatible Aseptoflex Vario sensors to selected RD52 universal process adapters.
The wetted parts are manufactured from stainless steel 1.4435/316L and feature Ra < 0.4 µm / Rz = 4 µm surface characteristics. The product has H4 hygienic equipment classification.
The adapter is designed for use with compatible Endress+Hauser universal process adapter interfaces, including RD52 and Uni 6-inch D85 applications. This allows flexible integration into existing process installations.
The E33349 includes a leakage port and dedicated sealing areas. It is supplied with EPDM and FKM O-rings, with optional FKM and PEEK sealing components available. The pressure rating is 16 bar.
Universal RD52 process adapter
G1 Aseptoflex Vario sensor connection
Compatible with RD52 interfaces
Compatible with selected Uni 6-inch D85 interfaces
Integrated leakage port
Stainless steel 316L construction
Ra < 0.4 µm surface finish
16 bar pressure rating
H4 hygienic equipment class
Multiple sealing options
Hygienic process sensor installation
Food processing systems
Beverage processing
Pharmaceutical equipment
Process tanks
Pressure measurement
Fluid monitoring
Existing RD52 process installations
| Specification | Details |
|---|---|
| Product Code | E33349 |
| Product Type | Universal process adapter |
| Model | ADAPT UNI RD52 |
| Sensor Connection | G1 Aseptoflex Vario |
| Process Connection | Universal process adapter Rd52 |
| Compatible Interfaces | Endress+Hauser RD52 / Uni 6" D85 |
| Leakage Port | Yes |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Pressure Rating | 16 bar / 4 MPa |
| Sealing | Gasket |
| Hygienic Class | H4 according to DIN 11866 |
| Weight | Approx. 390.1 g |
| Pack Quantity | 1 piece |
