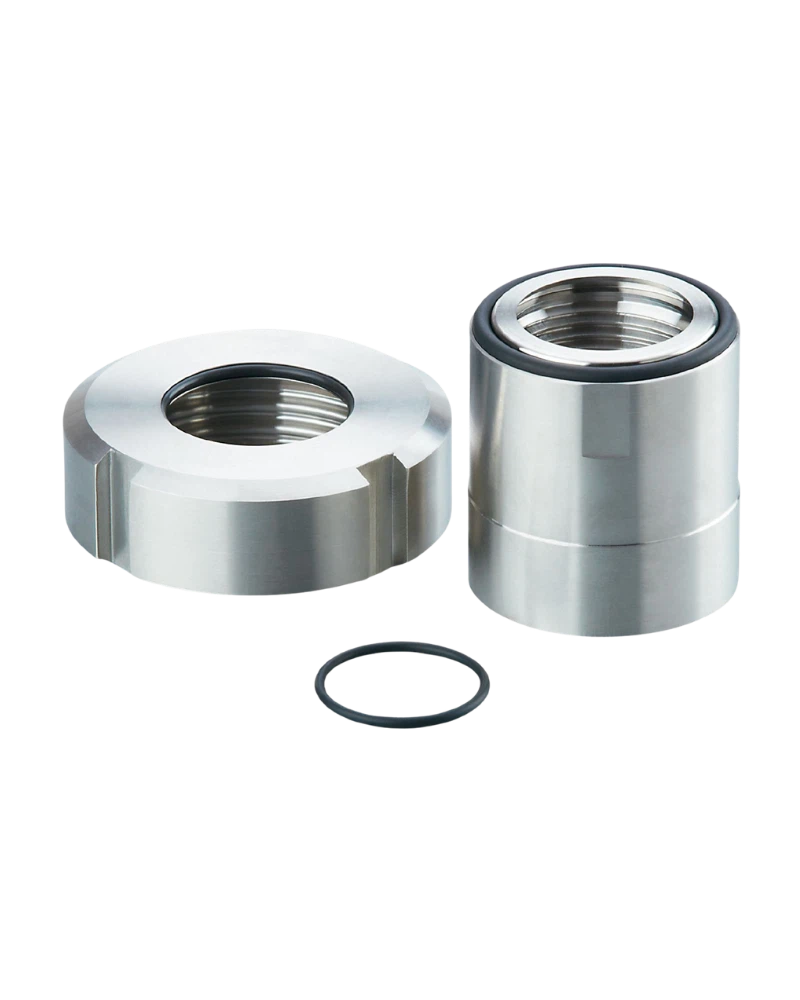

The IFM E33341 universal process adapter provides a reliable interface for installing Aseptoflex Vario process sensors on compatible Rd52 process connections. It uses a G1 sensor connection and stainless steel 316L construction with Ra < 0.4 µm surface characteristics. With H4 hygienic classification and a 16 bar pressure rating, it is suitable for hygienic food, beverage and industrial process installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33341 is a universal process adapter designed to connect compatible Aseptoflex Vario process sensors with RD52 process interfaces.
The adapter is manufactured from stainless steel 316L/1.4435 and provides Ra < 0.4 µm / Rz = 4 µm surface characteristics on wetted parts.
A G1 Aseptoflex Vario sensor connection provides a secure interface for compatible process sensors. The process side is designed as a universal Rd52 process adapter.
The E33341 has a pressure rating of 16 bar / 4 MPa and uses gasket sealing. EPDM and FKM O-rings are included for suitable installations, with additional PEEK sealing options available.
Universal RD52 process adapter
G1 Aseptoflex Vario sensor connection
Stainless steel 316L construction
Ra < 0.4 µm surface finish
16 bar pressure rating
H4 hygienic equipment class
EPDM FDA-compliant O-ring
FKM O-ring supplied
PEEK sealing option
Pack quantity of 1 piece
Hygienic process installations
Food processing
Beverage production
Process sensor mounting
Process tanks
Fluid measurement
Pressure monitoring
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E33341 |
| Product Type | Universal process adapter |
| Model | ADAPT UNI RD52 |
| Sensor Connection | G1 Aseptoflex Vario |
| Process Connection | Universal process adapter Rd52 |
| Material | Stainless steel 316L / 1.4435 |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Pressure Rating | 16 bar |
| Sealing | Gasket |
| Hygienic Class | H4 according to DIN 11866 |
| Weight | Approx. 378 g |
| Pack Quantity | 1 piece |
