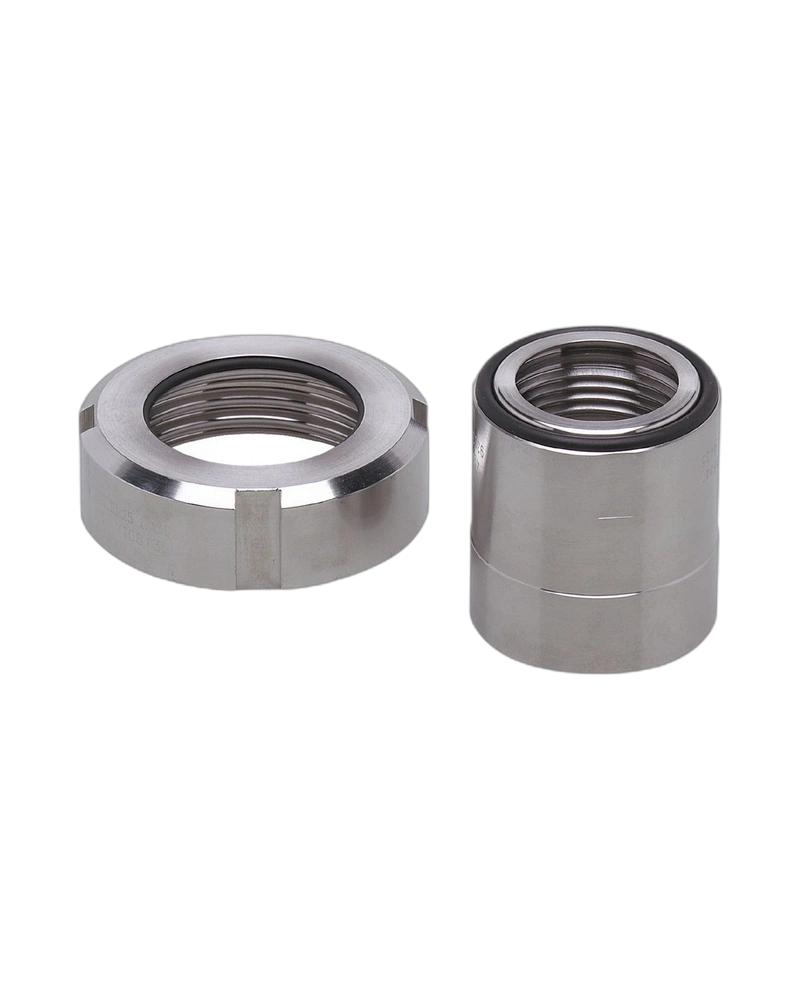

The IFM E33340 universal process adapter is designed for connecting Aseptoflex Vario process sensors to compatible Rd52 universal process adapters. It features a G1 internal sensor thread and stainless steel 316L construction with smooth Ra < 0.4 µm surface characteristics. The adapter supports hygienic installations with H4 classification and a 16 bar pressure rating.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33340 is a universal process adapter designed to provide a reliable interface between Aseptoflex Vario sensors and suitable RD52 process connections.
The wetted parts are manufactured from stainless steel 1.4435/316L. The surface characteristics are Ra < 0.4 µm / Rz = 4 µm, supporting hygienic process applications.
The sensor side features a G1 internal Aseptoflex Vario thread, allowing compatible process sensors to be securely mounted to the adapter.
The adapter uses gasket-based sealing and has a pressure rating of 16 bar / 1.6 MPa. EPDM and FKM O-rings are supplied for suitable connection configurations.
Universal RD52 process adapter
G1 internal Aseptoflex Vario thread
Stainless steel 316L construction
Ra < 0.4 µm surface finish
16 bar pressure rating
H4 hygienic equipment class
EPDM FDA-compliant O-ring
FKM O-ring
PEEK sealing option
Pack quantity of 1 piece
Process sensor installation
Hygienic process equipment
Food processing
Beverage processing
Process tanks
Fluid monitoring
Pressure measurement
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E33340 |
| Product Type | Universal process adapter |
| Model | ADAPT UNI RD52 |
| Sensor Connection | G1 internal Aseptoflex Vario |
| Process Connection | Universal process adapter Rd52 |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Pressure Rating | 16 bar / 1.6 MPa |
| Sealing | Gasket |
| Hygienic Class | H4 according to DIN 11866 |
| Weight | Approx. 364.5 g |
| Pack Quantity | 1 piece |
