The IFM E33255 T-piece is designed for reliable installation of compatible Aseptoflex Vario process sensors in hygienic 1-inch ASME process piping. It combines a G1 internal sensor connection with a 1-inch T-piece process connection and leakage detection port. Stainless steel 316L construction, hygienic surface characteristics and 40 bar pressure capability make it suitable for demanding food, beverage and industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

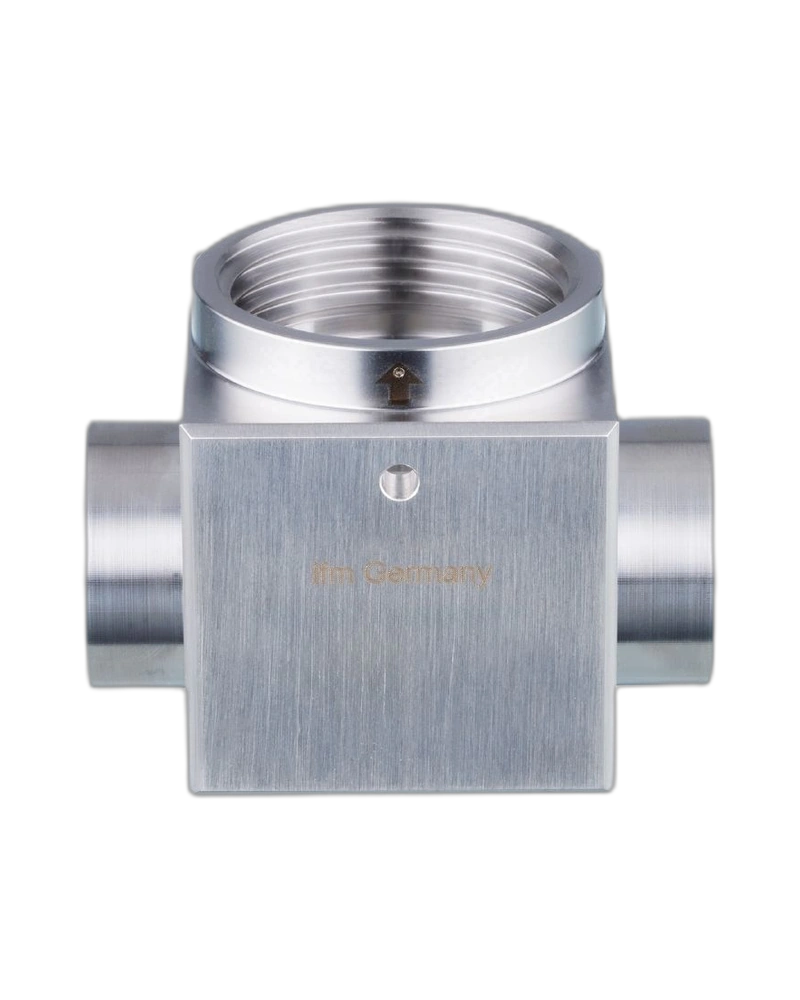

The E33255 is a hygienic T-piece adapter for integrating Aseptoflex Vario process sensors into 1-inch process pipelines. Its compact design provides a secure connection between the sensor and process line.
The wetted parts are manufactured from stainless steel 1.4435/316L with surface characteristics of Ra < 0.8 µm / Rz = 4 µm. This supports hygienic installation and cleaning requirements in process industries.
The adapter provides a G1 internal Aseptoflex Vario sensor connection and a 1-inch ASME-BPE T-piece process connection. The process dimensions are 25.4 × 1.65 mm according to DIN 11866 Series C.
The integrated leakage detection opening helps identify potential sealing problems. The adapter provides a pressure rating of 40 bar / 4 MPa for the sensor-to-adapter connection.
G1 internal Aseptoflex Vario sensor connection
1-inch ASME-BPE process connection
25.4 × 1.65 mm process dimensions
Integrated leakage detection opening
Stainless steel 316L construction
Ra < 0.8 µm surface characteristic
40 bar pressure rating
Hygienic process design
EPDM O-ring supplied
Compact T-piece configuration
Hygienic process pipelines
Food processing equipment
Beverage processing systems
Pharmaceutical installations
Process measurement
Pressure monitoring
Fluid processing equipment
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E33255 |
| Product Type | T-piece |
| Model | T-ADAPT G1 1" (ASME) |
| Sensor Connection | G1 internal Aseptoflex Vario |
| Process Connection | T-piece 1" |
| Standard | DIN 11866 Series C / ASME-BPE |
| Process Dimensions | 25.4 × 1.65 mm |
| Leakage Detection | Yes |
| Material | Stainless steel 1.4435 / 316L |
| Surface Characteristics | Ra < 0.8 µm / Rz = 4 µm |
| Pressure Rating | 40 bar / 4 MPa |
| Sealing | EPDM O-ring |
| Pack Quantity | 1 piece |
