The IFM E33253 T-piece is designed for hygienic installation of compatible Aseptoflex Vario process sensors in 1.5-inch ASME process piping. It provides a G1 internal sensor connection, 1.5-inch ASME T-piece process connection and integrated leakage port. Stainless steel 316L construction and a 40 bar pressure rating provide a robust solution for food, beverage and other demanding hygienic process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

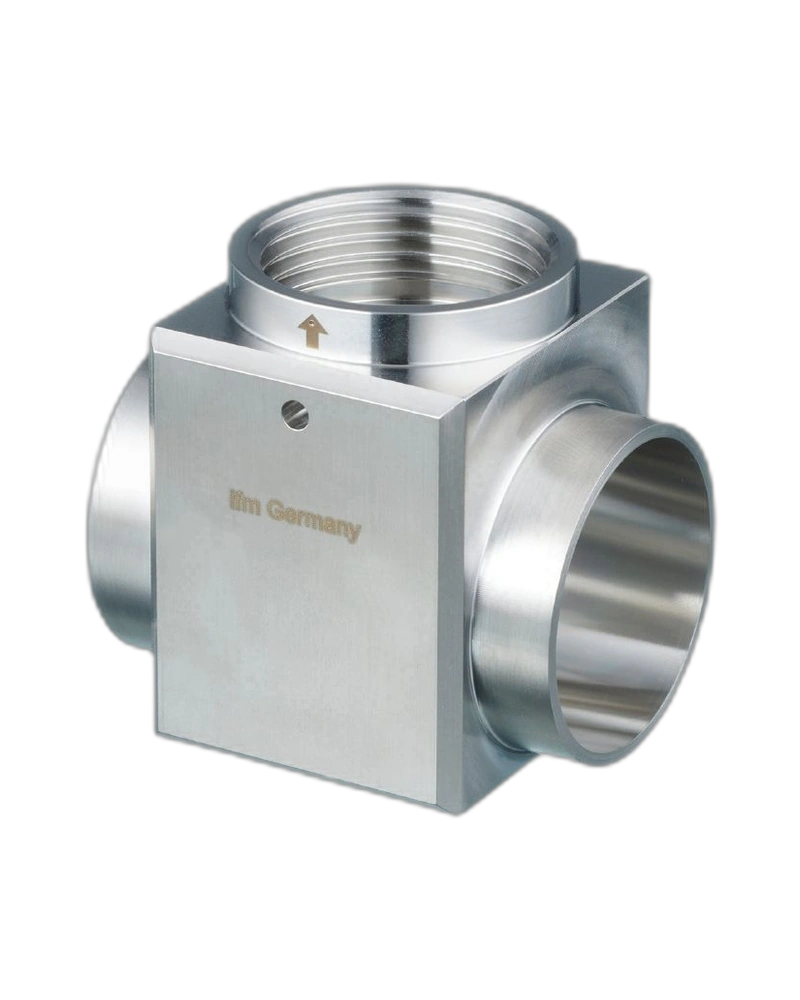

The E33253 is a stainless steel T-piece designed to connect compatible Aseptoflex Vario process sensors to 1.5-inch ASME process piping.
The adapter is manufactured from stainless steel 316L/1.4435 and has surface characteristics of Ra < 0.8 µm / Rz = 4 µm. This makes it suitable for hygienic process installations.
The integrated leakage port provides additional monitoring of the sealing area. This is useful in process installations where early detection of leakage is important.
The E33253 combines a G1 internal Aseptoflex Vario sensor connection with a 1.5-inch ASME T-piece. The process connection corresponds to 38.1 × 1.65 mm dimensions and the pressure rating is 40 bar.
T-piece process adapter
G1 internal Aseptoflex Vario thread
1.5-inch ASME process connection
38.1 × 1.65 mm process dimensions
Integrated leakage port
Stainless steel 316L construction
Ra < 0.8 µm surface characteristic
40 bar pressure rating
Hygienic process design
Pack quantity of 1 piece
Hygienic process pipelines
Food processing
Beverage production
Pharmaceutical equipment
Process tanks
Pressure measurement
Fluid monitoring
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E33253 |
| Product Type | T-piece |
| Model | T-ADAPT G1 1.5" (ASME) |
| Sensor Connection | G1 internal Aseptoflex Vario |
| Process Connection | T-piece 1.5" |
| Standard | ASME |
| Process Dimensions | 38.1 × 1.65 mm |
| Leakage Port | Yes |
| Material | Stainless steel 316L / 1.4435 |
| Surface Characteristics | Ra < 0.8 µm / Rz = 4 µm |
| Pressure Rating | 40 bar |
| Weight | Approx. 402.4 g |
| Pack Quantity | 1 piece |
