The IFM E33252 T-piece is designed for integrating compatible Aseptoflex Vario process sensors into DN15 hygienic pipe systems. It features a G1 Aseptoflex Vario sensor connection and a DN15 welding adapter with a 19 mm diameter. Stainless steel 316L construction, smooth surface characteristics and a 25 bar pressure rating provide a reliable solution for compact hygienic process installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

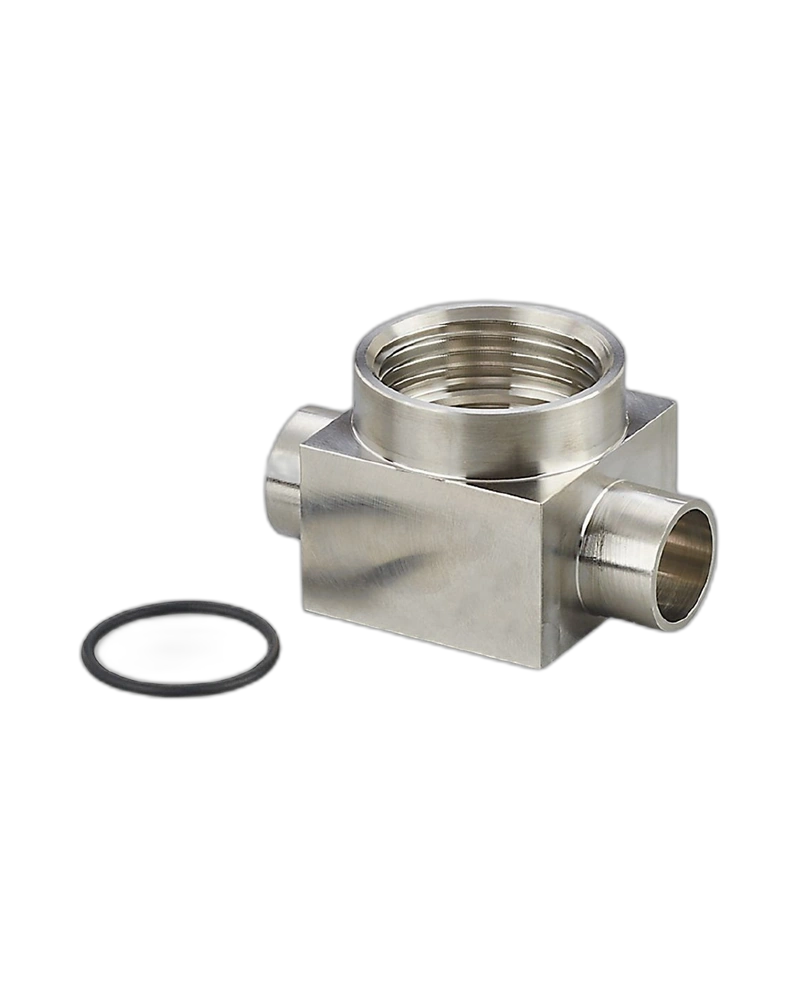

The E33252 is a compact stainless steel T-piece designed for mounting compatible Aseptoflex Vario process sensors into DN15 process piping.
The T-piece provides a G1 Aseptoflex Vario sensor connection and a DN15 process connection. The welding adapter has a diameter of approximately 19 mm and is designed for integration into compatible pipework.
The adapter is manufactured from stainless steel 1.4404/316L and features surface characteristics of Ra < 0.8 µm / Rz = 4 µm. This supports hygienic process applications.
The E33252 has a 25 bar pressure rating for the sensor-to-adapter connection. EPDM and FKM FDA-compliant O-rings are supplied for suitable sealing configurations.
T-piece process adapter
G1 Aseptoflex Vario sensor connection
DN15 process connection
Ø19 mm welding adapter
Stainless steel 316L construction
Ra < 0.8 µm surface characteristic
25 bar pressure rating
Compact hygienic design
EPDM and FKM sealing options
Pack quantity of 1 piece
DN15 process piping
Food processing
Beverage systems
Hygienic process equipment
Pressure measurement
Fluid monitoring
Process automation
Pharmaceutical applications
| Specification | Details |
|---|---|
| Product Code | E33252 |
| Product Type | T-piece |
| Model | T-ADAPT G1 DN15 |
| Sensor Connection | G1 Aseptoflex Vario |
| Process Connection | DN15 welding adapter |
| Welding Adapter Diameter | Ø19 mm |
| Material | Stainless steel 1.4404 / 316L |
| Surface Characteristics | Ra < 0.8 µm / Rz = 4 µm |
| Pressure Rating | 25 bar |
| Weight | Approx. 273.5 g |
| Sealing | EPDM and FKM O-rings |
| Pack Quantity | 1 piece |
