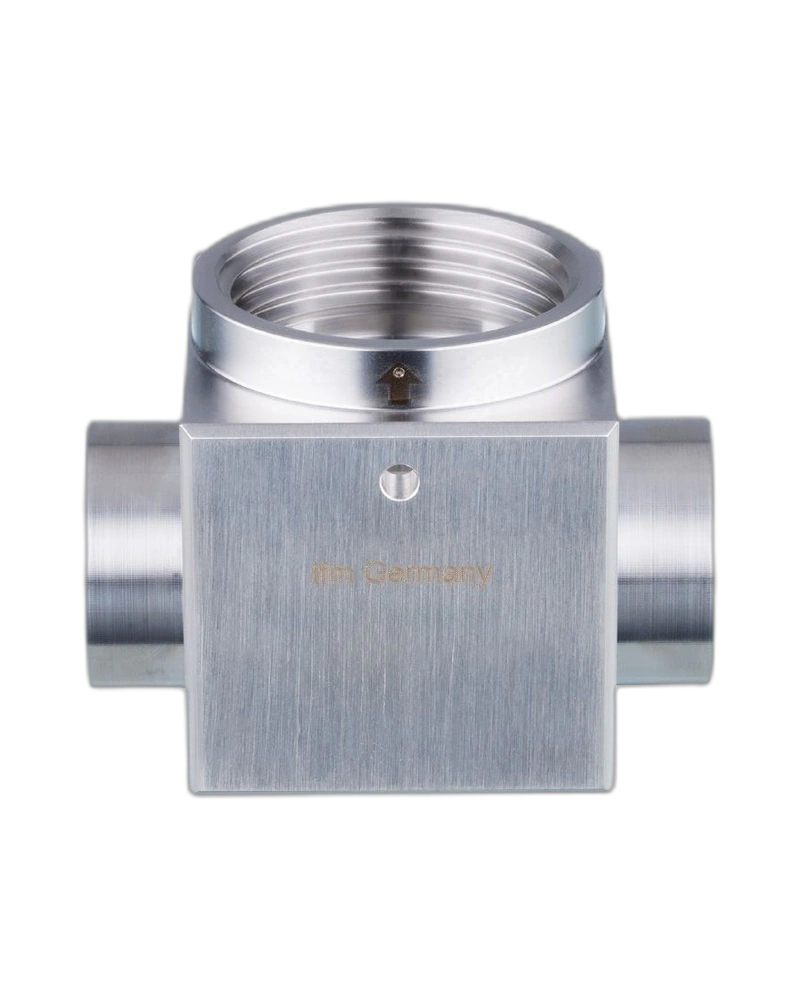

The IFM E33251 T-piece provides a hygienic process connection for compatible Aseptoflex Vario sensors in 3/4-inch ASME process piping. It combines a G1 internal Aseptoflex Vario sensor connection with a 3/4-inch T-piece process connection and integrated leakage port. Its stainless steel construction and 40 bar pressure rating make it suitable for demanding hygienic process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33251 is a hygienic T-piece adapter designed to connect compatible Aseptoflex Vario process sensors to 3/4-inch process piping.
The T-piece uses stainless steel construction with smooth surface characteristics of approximately Ra < 0.8 µm / Rz = 4 µm. This supports hygienic process installations.
An integrated leakage port is provided around the sealing area. This design allows potential leakage at the process connection to be identified more effectively during operation or maintenance.
The E33251 provides a G1 internal Aseptoflex Vario sensor connection and a 3/4-inch ASME T-piece process connection. The pressure rating is 40 bar / 4 MPa, making it suitable for demanding process applications.
Hygienic T-piece process adapter
G1 internal Aseptoflex Vario thread
3/4-inch ASME process connection
Integrated leakage port
Stainless steel construction
Ra < 0.8 µm surface characteristic
40 bar pressure rating
Compact process sensor integration
Suitable for hygienic applications
Pack quantity of 1 piece
Hygienic process piping
Food processing equipment
Beverage processing
Pharmaceutical systems
Process measurement
Pressure monitoring
Fluid monitoring
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E33251 |
| Product Type | T-piece |
| Model | T-ADAPT G1 3/4" (ASME) |
| Sensor Connection | G1 internal Aseptoflex Vario |
| Process Connection | T-piece 3/4" |
| Standard | ASME |
| Leakage Port | Yes |
| Material | Stainless steel |
| Surface Characteristics | Ra < 0.8 µm / Rz = 4 µm |
| Pressure Rating | 40 bar / 4 MPa |
| Pack Quantity | 1 piece |
