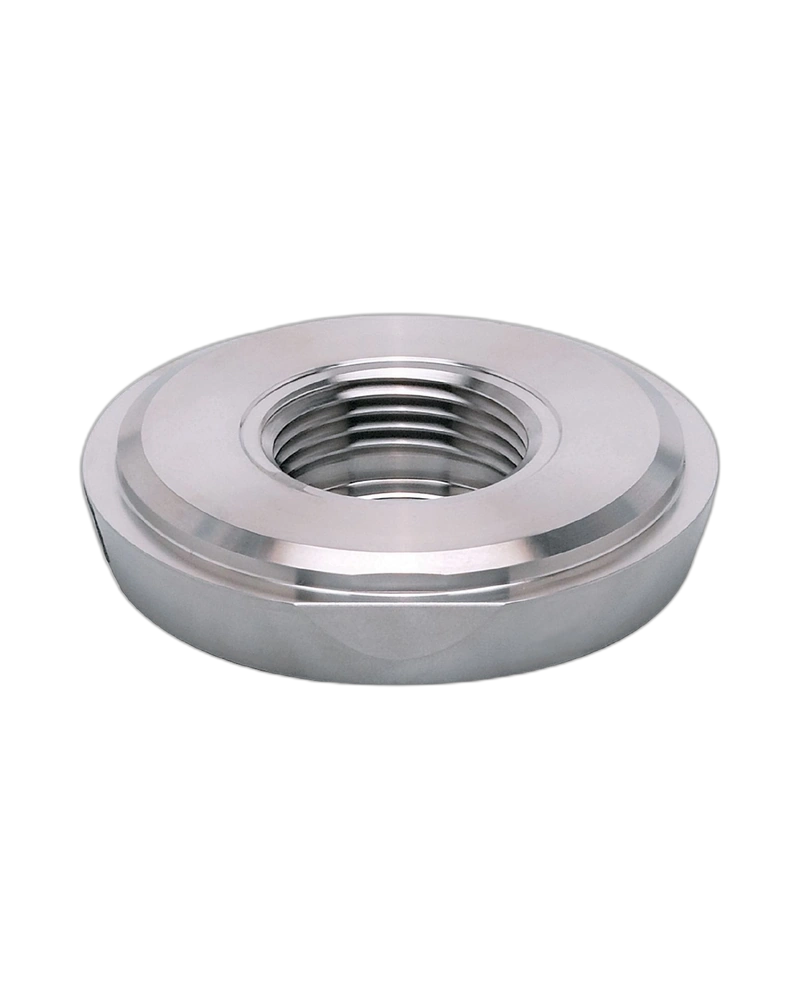

The IFM E33213 process adapter provides a hygienic connection between compatible Aseptoflex Vario process sensors and DN50, 2-inch pipe systems. It features a G1 internal Aseptoflex Vario thread, DIN 11851 hygienic pipe fitting and Ø68.5 mm connection diameter. Its stainless steel 316L construction, smooth surface and 25 bar pressure rating support reliable process sensor installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33213 is a hygienic process adapter designed for installing compatible process sensors in DN50 / 2-inch hygienic pipe systems. It combines a G1 internal Aseptoflex Vario sensor connection with a DIN 11851 pipe fitting.
The adapter is manufactured from stainless steel 1.4435/316L and features surface characteristics of Ra < 0.4 µm / Rz = 4 µm. Its hygienic construction supports process applications where cleanable and reliable connections are important.
The E33213 provides a DN50 / 2-inch hygienic pipe fitting with a Ø68.5 mm connection diameter. It has a pressure rating of 25 bar / 2.5 MPa for suitable applications.
The adapter is supplied with compatible EPDM, FKM and PEEK sealing components. Its standardized hygienic pipe connection allows straightforward integration into suitable process systems.
DN50 / 2-inch hygienic pipe fitting
G1 internal Aseptoflex Vario thread
DIN 11851 connection
Ø68.5 mm connection diameter
Stainless steel 316L construction
Ra < 0.4 µm surface characteristic
25 bar pressure rating
Hygienic process design
EPDM, FKM and PEEK sealing components
Pack quantity of 1 piece
Food and beverage processing
Hygienic process pipelines
Pharmaceutical equipment
Process tanks
Fluid monitoring
Pressure measurement
Sanitary process systems
Industrial automation
| Specification | Details |
|---|---|
| Product Code | E33213 |
| Product Type | Process adapter hygienic pipe fitting |
| Model | ADAPT IFM-DIN11851 DN50/2" |
| Material | Stainless steel 1.4435 / 316L |
| Sensor Connection | G1 internal Aseptoflex Vario |
| Process Connection | DN50 / 2" |
| Standard | DIN 11851 |
| Connection Diameter | Ø68.5 mm |
| Pressure Rating | 25 bar / 2.5 MPa |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Weight | 346 g |
| Pack Quantity | 1 piece |
