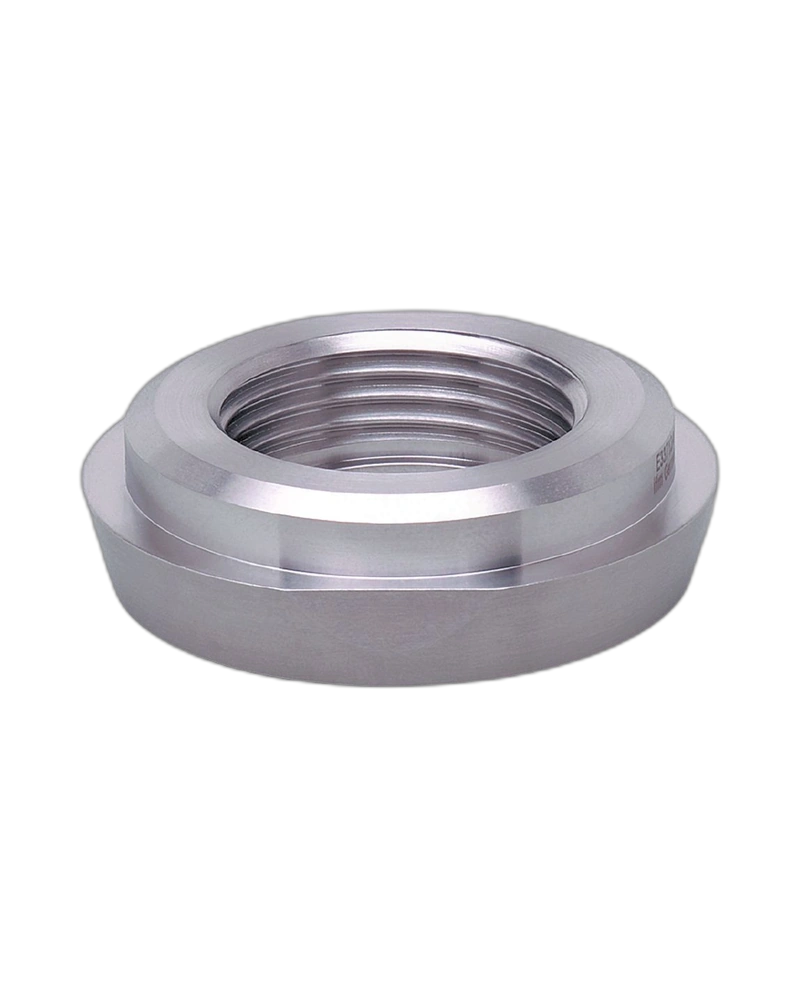

The IFM E33212 process adapter is designed for connecting compatible Aseptoflex Vario process sensors to DN40, 1.5-inch hygienic pipe systems. It features a G1 internal Aseptoflex Vario thread, DIN 11851 pipe connection and Ø56 mm connection diameter. Stainless steel 316L construction and a 40 bar pressure rating provide a robust solution for hygienic industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33212 is a hygienic process adapter designed for installation of compatible process sensors in DN40 / 1.5-inch pipe systems. It uses a DIN 11851 hygienic pipe fitting for reliable process integration.
The adapter is manufactured from stainless steel 1.4435/316L and features smooth wetted surface characteristics of Ra < 0.4 µm / Rz = 4 µm. This construction is suitable for hygienic process environments.
The E33212 combines a G1 internal Aseptoflex Vario sensor connection with a DN40 / 1.5-inch hygienic pipe fitting. The connection diameter is Ø56 mm and the pressure rating is 40 bar / 4 MPa.
EPDM, FKM and PEEK sealing components are included for compatible installation configurations. The pipe fitting arrangement supports convenient sensor integration into hygienic process lines.
DN40 / 1.5-inch hygienic pipe fitting
G1 internal Aseptoflex Vario thread
DIN 11851 connection
Ø56 mm connection diameter
Stainless steel 316L construction
Ra < 0.4 µm surface characteristic
40 bar pressure rating
Hygienic process design
Multiple sealing options supplied
Pack quantity of 1 piece
Food processing
Beverage processing
Hygienic pipelines
Pharmaceutical equipment
Process tanks
Fluid monitoring
Pressure measurement
Sanitary automation systems
| Specification | Details |
|---|---|
| Product Code | E33212 |
| Product Type | Process adapter hygienic pipe fitting |
| Model | ADAPT IFM-DIN11851 DN40/1.5" |
| Material | Stainless steel 1.4435 / 316L |
| Sensor Connection | G1 internal Aseptoflex Vario |
| Process Connection | DN40 / 1.5" |
| Standard | DIN 11851 |
| Connection Diameter | Ø56 mm |
| Pressure Rating | 40 bar / 4 MPa |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Weight | Approx. 197 g |
| Pack Quantity | 1 piece |
