The IFM E33211 hygienic pipe fitting is designed for installing compatible process sensors in DN32, 1.25-inch hygienic pipe systems. It combines a G1 internal Aseptoflex Vario sensor connection with a DIN 11851 pipe fitting and Ø49.8 mm connection diameter. Stainless steel 316L construction, smooth surface characteristics and a 40 bar pressure rating make it suitable for demanding hygienic process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

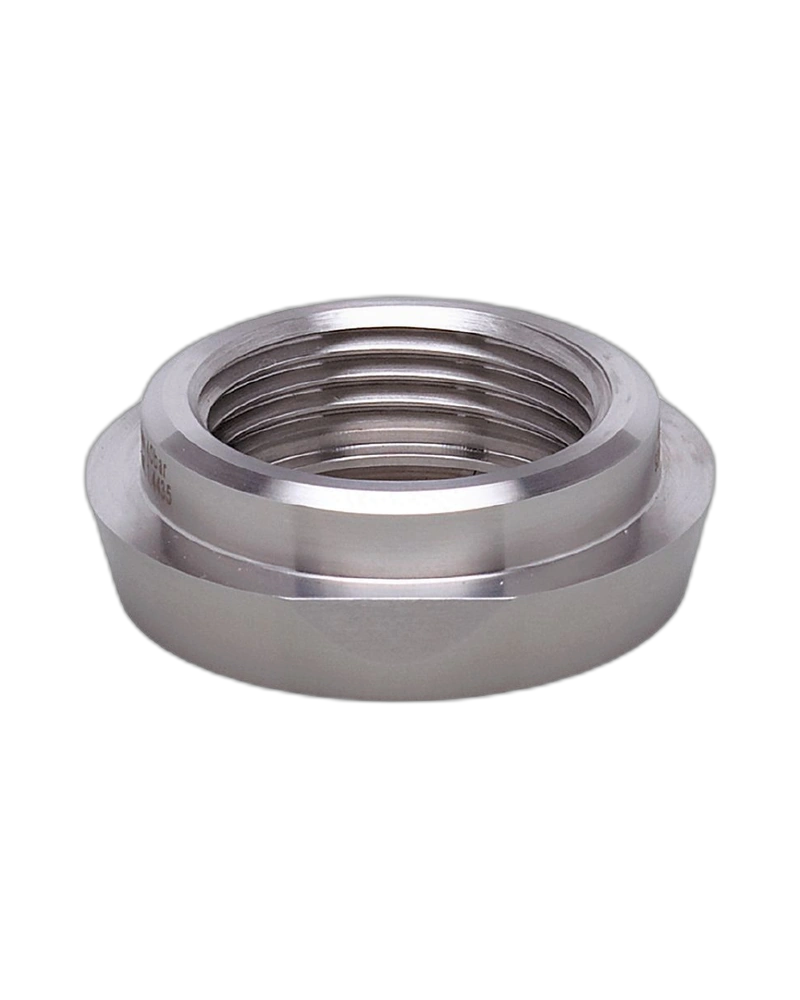

The E33211 is a process adapter designed for hygienic pipe installations and compatible Aseptoflex Vario process sensors. It is intended for use with DN32 / 1.25-inch hygienic pipe connections according to DIN 11851.
The adapter is manufactured from stainless steel 1.4435/316L and has smooth surface characteristics of Ra < 0.4 µm / Rz = 4 µm. This design supports hygienic process installations where cleanable and reliable connections are important.
The E33211 features a G1 internal Aseptoflex Vario sensor connection and a DN32 / 1.25-inch hygienic pipe fitting with Ø49.8 mm connection diameter. It has a 40 bar / 4 MPa pressure rating.
EPDM, FKM and PEEK sealing components are supplied. The hygienic pipe fitting provides a practical connection for sensor installation in compatible process equipment.
DN32 / 1.25-inch hygienic pipe fitting
G1 internal Aseptoflex Vario thread
DIN 11851 connection
Ø49.8 mm connection diameter
Stainless steel 316L construction
Ra < 0.4 µm surface characteristic
40 bar pressure rating
Hygienic process connection
EPDM, FKM and PEEK sealing options
Pack quantity of 1 piece
Food and beverage processing
Hygienic pipelines
Process tanks
Pharmaceutical equipment
Fluid monitoring
Pressure measurement
Sanitary process systems
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E33211 |
| Product Type | Process adapter hygienic pipe fitting |
| Model | ADAPT IFM-DIN11851 DN32/1.25" |
| Material | Stainless steel 1.4435 / 316L |
| Sensor Connection | G1 internal Aseptoflex Vario |
| Process Connection | DN32 / 1.25" |
| Standard | DIN 11851 |
| Connection Diameter | Ø49.8 mm |
| Pressure Rating | 40 bar / 4 MPa |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Weight | 134 g |
| Pack Quantity | 1 piece |
