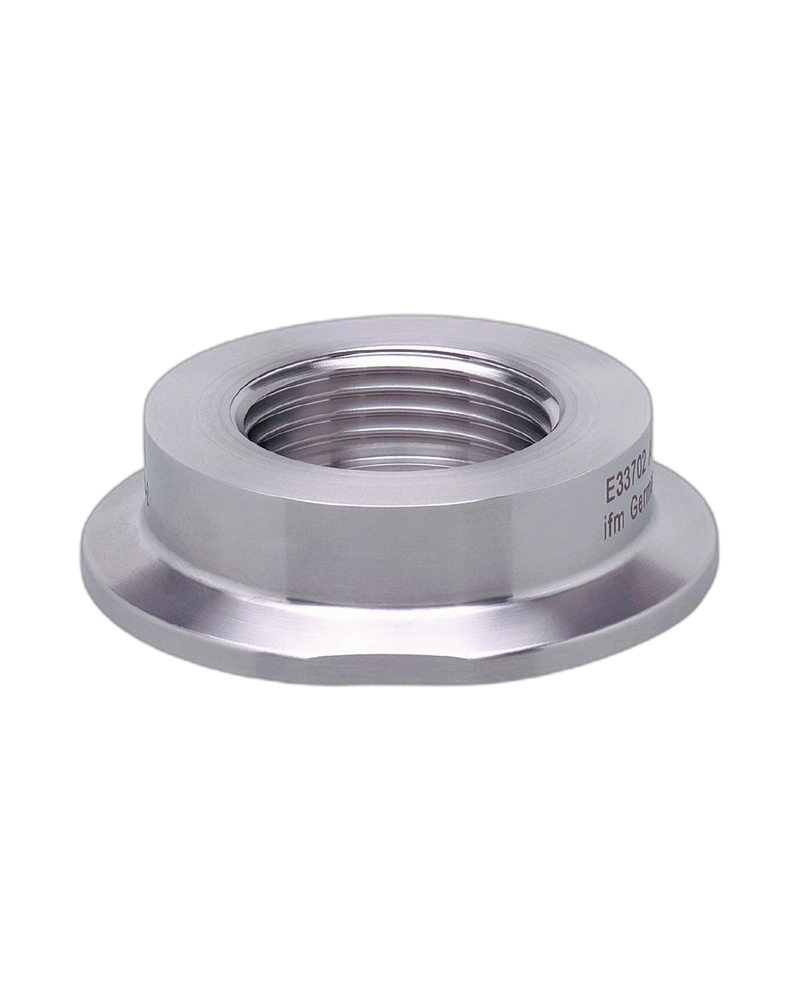

The IFM E33202 process adapter is designed for hygienic process sensor installation using a 2-inch Tri-Clamp connection. It combines a G1 internal Aseptoflex Vario sensor connection with a DN50 clamp connection according to DIN 32676 and ISO 2852. Its stainless steel 316L construction, smooth wetted surface and 16 bar pressure rating make it suitable for demanding hygienic process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E33202 is a hygienic Tri-Clamp process adapter designed to connect compatible Aseptoflex Vario process sensors to DN50, 2-inch process connections.
The adapter is manufactured from stainless steel 1.4435/316L and features a smooth wetted surface with Ra < 0.4 µm / Rz = 4 µm characteristics. This makes it suitable for hygienic process installations.
The E33202 uses a G1 internal Aseptoflex Vario sensor connection and a DN50 / 2-inch clamp connection with a 64 mm clamp diameter. It provides a pressure rating of 16 bar / 1.6 MPa.
EPDM, FKM and PEEK sealing components are supplied for suitable installation configurations. The Tri-Clamp arrangement allows convenient assembly and maintenance in process systems.
2-inch Tri-Clamp process adapter
G1 internal Aseptoflex Vario thread
DN50 process connection
64 mm clamp diameter
DIN 32676 / ISO 2852
Stainless steel 316L construction
Ra < 0.4 µm surface characteristic
16 bar pressure rating
Hygienic process connection
Pack quantity of 1 piece
Food processing
Beverage processing
Pharmaceutical systems
Hygienic process lines
Process tanks
Fluid monitoring
Pressure measurement
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E33202 |
| Product Type | Process adapter Tri-Clamp |
| Model | ADAPT IFM-CLAMP ISO2852 2" |
| Material | Stainless steel 1.4435 / 316L |
| Sensor Connection | G1 internal Aseptoflex Vario |
| Process Connection | Clamp DN50 |
| Clamp Size | 2 inch |
| Clamp Diameter | Ø64 mm |
| Standard | DIN 32676 / ISO 2852 |
| Pressure Rating | 16 bar / 1.6 MPa |
| Surface Characteristics | Ra < 0.4 µm / Rz = 4 µm |
| Weight | 227.5 g |
| Pack Quantity | 1 piece |
