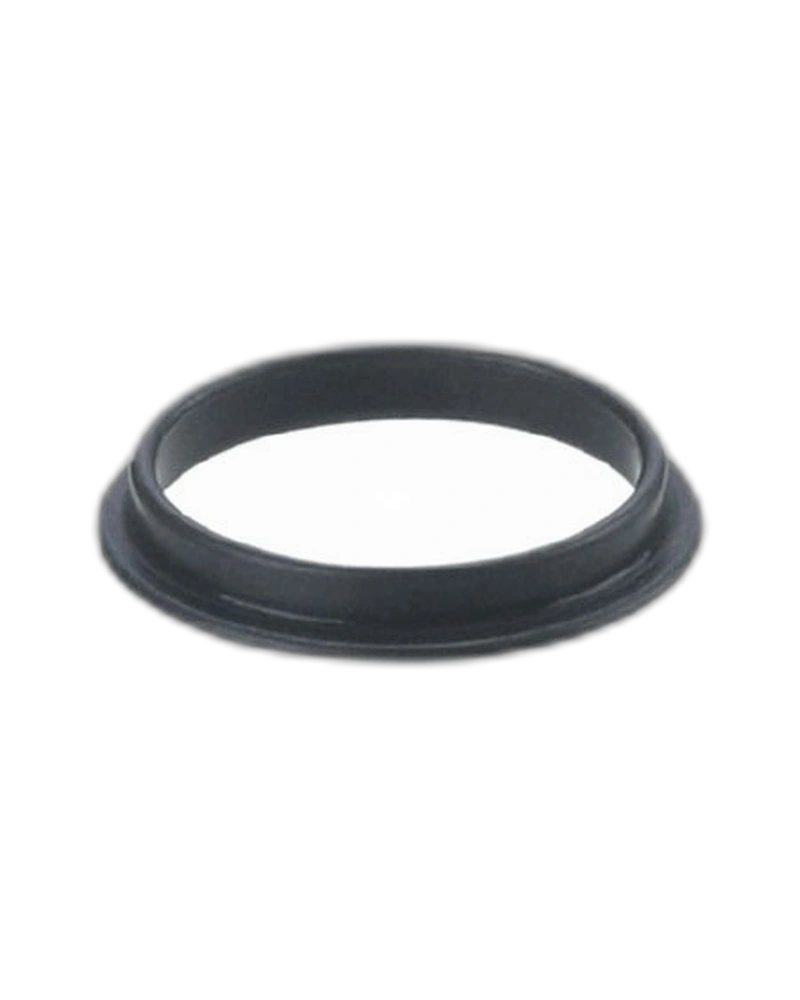

The IFM E30522 gasket is an FKM seal ring designed for process units with a G1/2 connection. It provides a dependable sealing interface for compatible process sensors and process equipment. With an 18 mm inside diameter, 23 mm outside diameter and an ambient temperature range of -25 to 200 °C, it is suitable for industrial process applications requiring reliable and durable sealing.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30522 is an FKM gasket designed for units with a G1/2 process connection. It provides a dedicated sealing element for compatible process sensors and equipment.
The gasket is manufactured from FKM and has an inside diameter of 18 mm and an outside diameter of 23 mm. Its G1/2-specific design provides a suitable interface for compatible process connections.
The E30522 is specified for an ambient temperature range from -25 to 200 °C and follows DIN EN ISO 1179-2. These characteristics make it suitable for a variety of industrial process applications.
The compact seal ring provides a replaceable sealing solution for compatible G1/2 process connections. It can support routine sensor maintenance and replacement activities.
FKM sealing material
Designed for G1/2 process connections
18 mm inside diameter
23 mm outside diameter
Operating temperature -25 to 200 °C
DIN EN ISO 1179-2 standard
Suitable for process sensors
Reliable sealing interface
Compact replacement component
Pack quantity of 1 piece
Process sensor installation
Pressure measurement
Industrial pipelines
Tanks and vessels
Process instrumentation
Fluid handling
Industrial automation
Maintenance applications
| Specification | Details |
|---|---|
| Product Code | E30522 |
| Product Type | Gasket |
| Model | SEAL RING G1/2 FKM |
| Material | FKM |
| Process Connection | G1/2 |
| Inside Diameter | 18 mm |
| Outside Diameter | 23 mm |
| Ambient Temperature | -25 to 200 °C |
| Standard | DIN EN ISO 1179-2 |
| Weight | 7.65 g |
| Pack Quantity | 1 piece |
