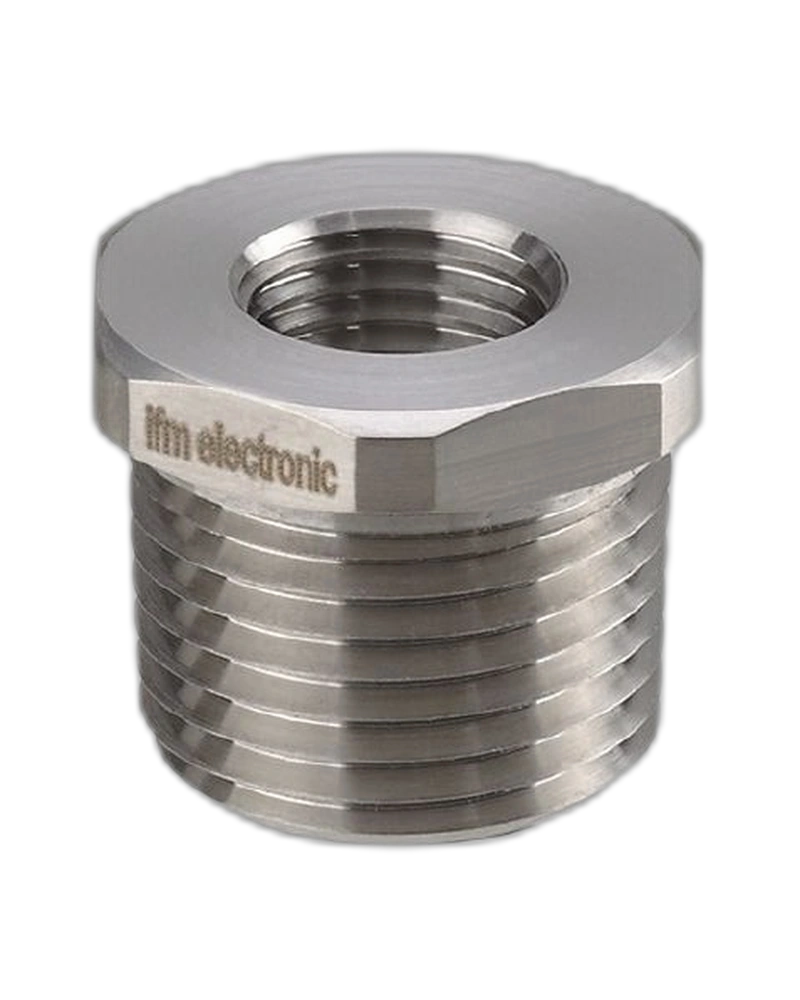

The IFM E30521 screw-in adapter provides a robust connection between process sensors with a G1/4 threaded connection and equipment using a 1/2" NPT process connection. Manufactured from stainless steel 316L/1.4404, it offers reliable mechanical strength and a pressure rating of up to 400 bar. It is suitable for industrial pressure measurement and process monitoring applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30521 is a screw-in adapter developed for process sensors and provides a connection between different thread standards. It allows compatible sensors with a G1/4 connection to be installed into equipment using a 1/2" NPT connection.
The adapter is manufactured from stainless steel 316L/1.4404. It features a G1/4 sensor connection and a 1/2" NPT process connection, providing a durable threaded interface.
The E30521 has a pressure rating of 400 bar / 40 MPa, making it suitable for high-pressure process installations when the complete assembly is appropriately rated.
The adapter simplifies installation where the sensor and process equipment use different thread standards. Its stainless steel construction provides a robust and reliable interface for industrial instrumentation.
G1/4 sensor connection
1/2" NPT process connection
400 bar pressure rating
Stainless steel 316L/1.4404
Robust threaded design
Compact adapter construction
Designed for process sensors
Reliable mechanical connection
Suitable for industrial applications
Pack quantity of 1 piece
Pressure measurement
Process monitoring
Industrial instrumentation
Pipelines
Pressure vessels
Fluid handling systems
Process automation
Machine instrumentation
| Specification | Details |
|---|---|
| Product Code | E30521 |
| Product Type | Screw-in adapter for process sensors |
| Model | ADAPT G1/4 / 1/2NPT |
| Material | Stainless steel 316L / 1.4404 |
| Sensor Connection | G1/4 |
| Process Connection | 1/2" NPT |
| Pressure Rating | 400 bar / 40 MPa |
| Weight | 75.7 g |
| Pack Quantity | 1 piece |
| Application | Process sensor installation |
