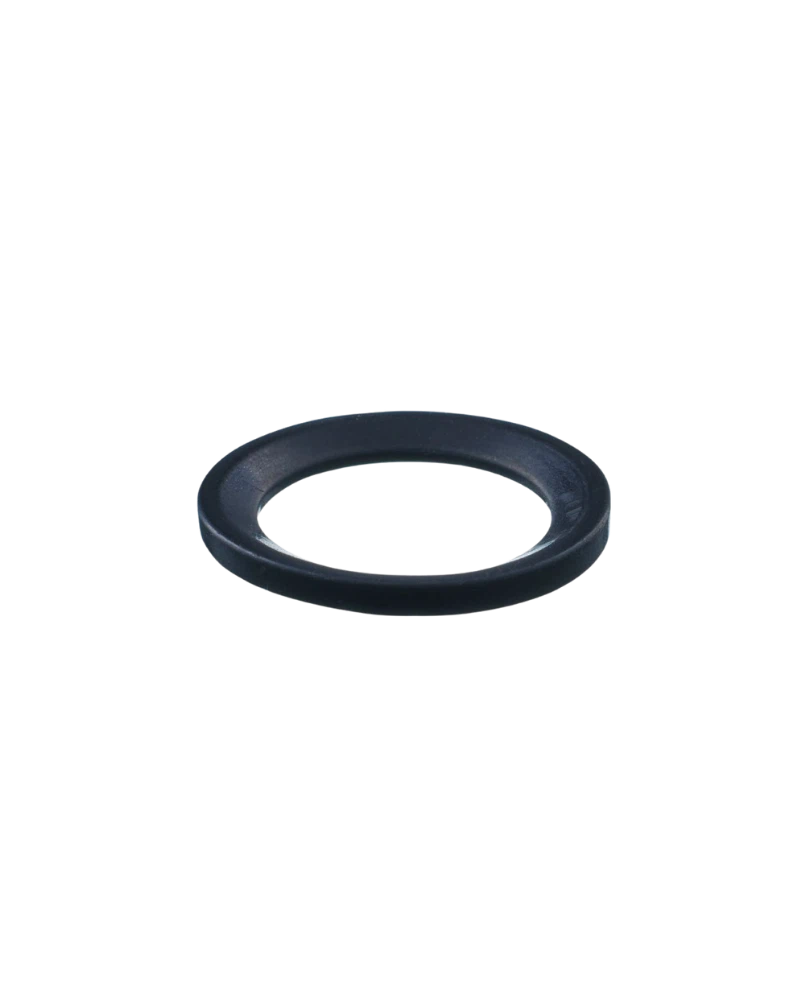

The IFM E30520 gasket is an FFKM seal ring designed for process units with a G1/4 connection. It provides a reliable sealing interface for compatible process sensors and equipment operating in demanding industrial environments. With an ambient temperature range from -5 to 200 °C and compliance with DIN EN ISO 1179-2, it offers a compact and dependable sealing solution for process instrumentation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30520 is an FFKM gasket designed specifically for units with a G1/4 process connection. It provides a dedicated sealing component for compatible process sensors and equipment.
The gasket is manufactured from FFKM and has an inside diameter of 11.6 mm and outside diameter of 16.5 mm. Its design is intended for G1/4 process connections.
The gasket is suitable for ambient temperatures from -5 to 200 °C and is designed according to DIN EN ISO 1179-2. This makes it suitable for demanding process instrumentation applications where reliable sealing is required.
The E30520 provides a replaceable sealing element for compatible process units. Its compact dimensions make it suitable for sensor installation and maintenance applications.
FFKM sealing material
Designed for G1/4 process connections
11.6 mm inside diameter
16.5 mm outside diameter
Operating temperature -5 to 200 °C
DIN EN ISO 1179-2 standard
Suitable for process sensors
Reliable sealing interface
Compact replacement component
Pack quantity of 1 piece
Pressure sensor installation
Process instrumentation
Industrial pipelines
Process equipment
Fluid monitoring
Industrial automation
Tanks and vessels
Maintenance applications
| Specification | Details |
|---|---|
| Product Code | E30520 |
| Product Type | Gasket |
| Model | SEAL RING FFKM G1/4 |
| Material | FFKM |
| Process Connection | G1/4 |
| Inside Diameter | 11.6 mm |
| Outside Diameter | 16.5 mm |
| Ambient Temperature | -5 to 200 °C |
| Standard | DIN EN ISO 1179-2 |
| Weight | 2.1 g |
| Pack Quantity | 1 piece |
