The IFM E30519 O-ring is an EPDM sealing component designed for compatible process sensor connections. It features an 8.5 mm inside diameter, 11.5 mm outside diameter and 1.5 mm cross-section. Its operating temperature range from -40 to 150 °C makes it suitable for a variety of industrial process applications, while the five-piece pack provides convenient replacement and maintenance support.
Explore performance details, construction highlights, applications, and technical information in one clear overview.

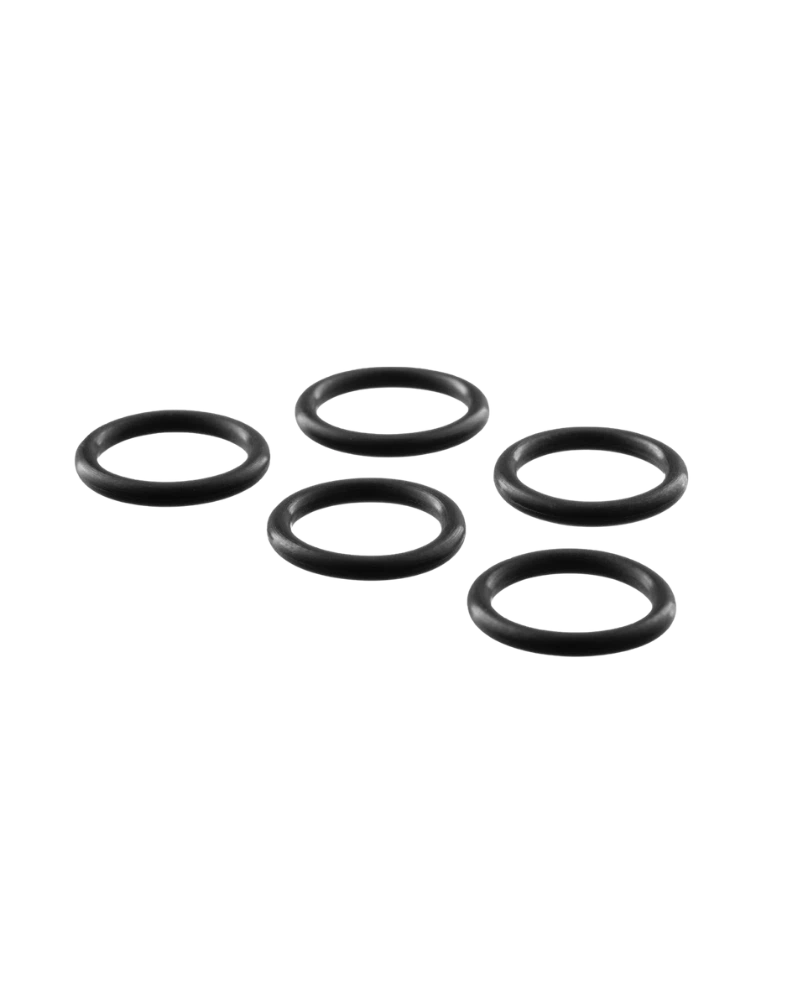

The E30519 is an EPDM O-ring designed to provide reliable sealing for compatible process sensors and process equipment. It is supplied as a replacement accessory in a five-piece pack.
EPDM provides a durable elastomer sealing solution for suitable process applications. The E30519 is specified for ambient temperatures from -40 to 150 °C.
The O-ring features an 8.5 mm inside diameter, 11.5 mm outside diameter and 1.5 mm cross-section. It is manufactured from EPDM and supplied in a five-piece pack.
The E30519 provides a convenient replacement sealing component for compatible process sensors. Its five-piece pack helps support routine maintenance and multiple sensor installations.
EPDM sealing material
8.5 mm inside diameter
11.5 mm outside diameter
1.5 mm cross-section
Operating temperature -40 to 150 °C
Designed for process sensors
Reliable sealing performance
Suitable for industrial applications
Replacement-friendly design
Pack quantity of 5 pieces
Process sensor sealing
Industrial pipelines
Tanks and containers
Pressure monitoring
Fluid handling equipment
Process instrumentation
Industrial automation
Maintenance and replacement
| Specification | Details |
|---|---|
| Product Code | E30519 |
| Product Type | O-ring |
| Model | O-RG 8,50X1,50/EPDM 5 PIECE |
| Material | EPDM |
| Inside Diameter | 8.5 mm |
| Outside Diameter | 11.5 mm |
| Cross Section | 1.5 mm |
| Ambient Temperature | -40 to 150 °C |
| Weight | 1.7 g |
| Pack Quantity | 5 pieces |
