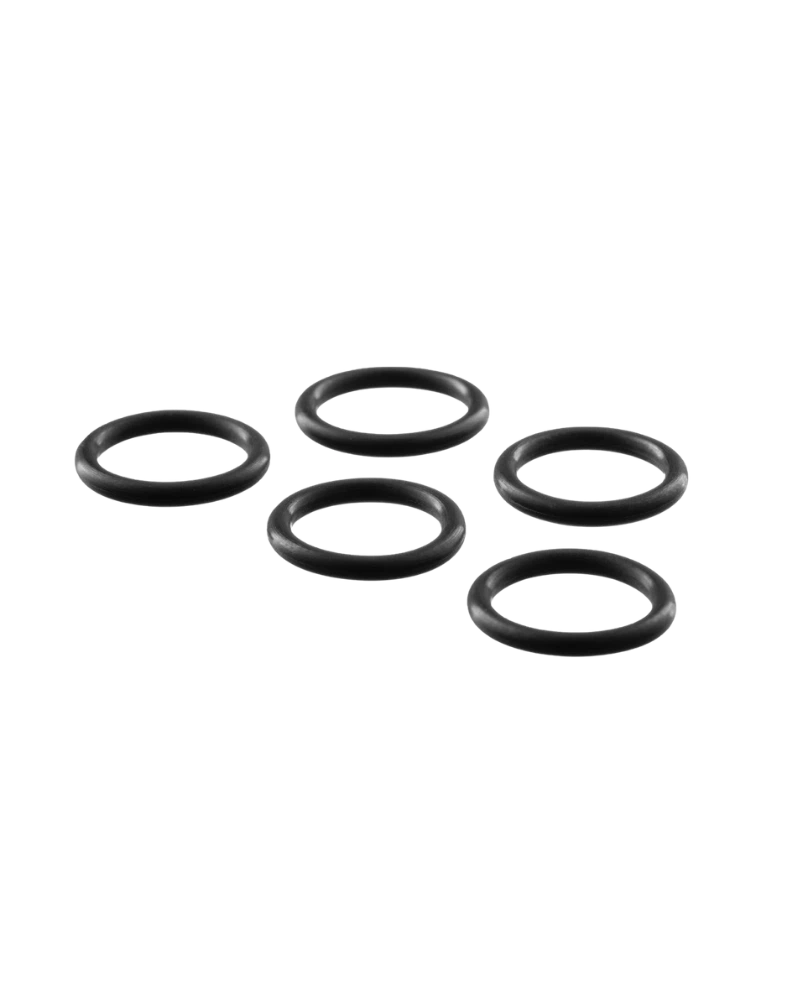

The IFM E30518 O-ring is manufactured from FFKM and provides a high-performance sealing solution for compatible process sensors. It features an 8.5 mm inside diameter, 11.5 mm outside diameter and 1.5 mm cross-section. With an operating temperature range from -5 to 200 °C, it is suitable for demanding process environments where dependable sealing performance is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30518 is an FFKM O-ring designed for compatible process sensor sealing applications. It provides a dedicated replacement sealing component for suitable IFM process instrumentation.
FFKM is selected for demanding sealing applications where high temperature resistance and reliable elastomer performance are required. The E30518 operates across a temperature range of -5 to 200 °C.
The O-ring has an 8.5 mm inside diameter, 11.5 mm outside diameter and 1.5 mm cross-section. It is manufactured from FFKM and supplied as one piece.
The compact design enables straightforward replacement of compatible sealing components. The E30518 is useful for process sensor maintenance where FFKM sealing material is required.
FFKM sealing material
8.5 mm inside diameter
11.5 mm outside diameter
1.5 mm cross-section
Operating temperature -5 to 200 °C
Designed for process sensors
High-performance sealing material
Suitable for demanding applications
Compact replacement component
Pack quantity of 1 piece
Process sensor sealing
Pressure measurement systems
Industrial process equipment
Pipelines
Tanks and vessels
Fluid monitoring
Process automation
Maintenance applications
| Specification | Details |
|---|---|
| Product Code | E30518 |
| Product Type | O-ring |
| Model | O-RG 8,50X1,50/FFKM |
| Material | FFKM |
| Inside Diameter | 8.5 mm |
| Outside Diameter | 11.5 mm |
| Cross Section | 1.5 mm |
| Ambient Temperature | -5 to 200 °C |
| Weight | 1.65 g |
| Pack Quantity | 1 piece |
