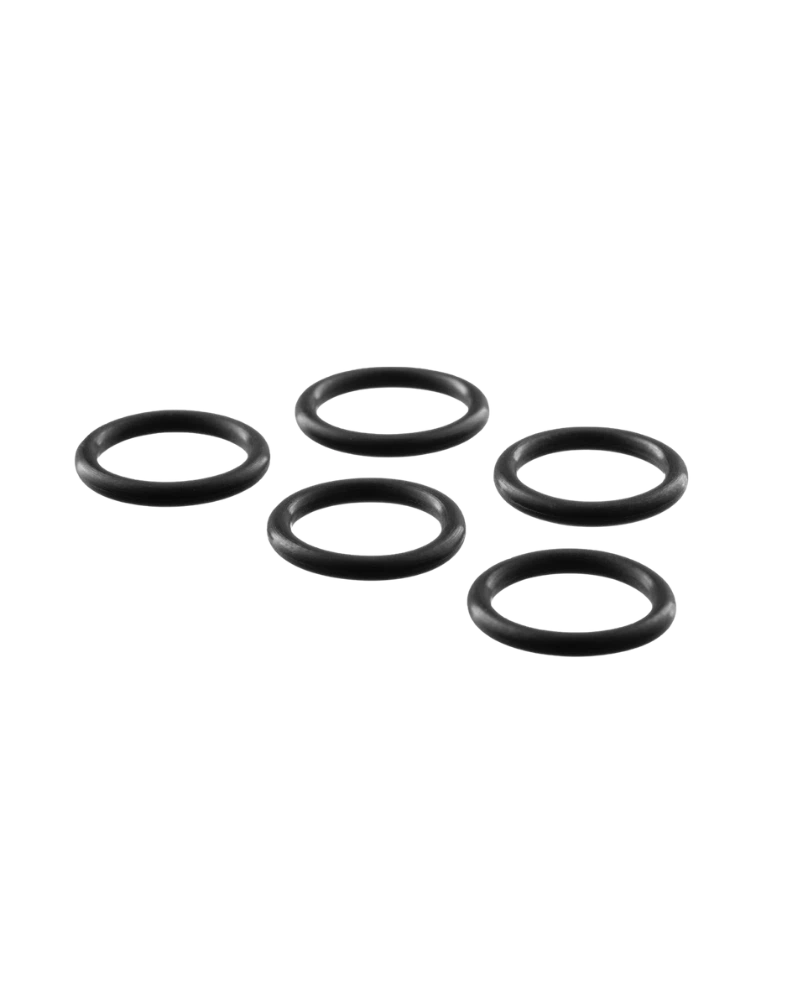

The IFM E30517 O-ring is an FKM sealing component designed for compatible process sensor installations. With an 8.5 mm inside diameter, 11.5 mm outside diameter and 1.5 mm cross-section, it provides a dependable sealing interface for process equipment. Its operating temperature range of -30 to 200 °C supports demanding industrial applications, and it is supplied in a five-piece pack.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30517 is an FKM O-ring intended for sealing compatible process sensor connections. It is available as a replacement accessory for suitable IFM process instrumentation.
FKM provides a durable sealing material for suitable industrial process applications. The specified 8.5 × 1.5 mm O-ring dimensions provide compatibility with designated sensor sealing arrangements.
The O-ring has an 8.5 mm inside diameter and 11.5 mm outside diameter with a 1.5 mm cross-section. It is manufactured from FKM and supplied as five pieces.
The E30517 provides a convenient replacement sealing solution for compatible process sensors. Keeping spare O-rings available can simplify maintenance and sensor replacement operations.
FKM sealing material
8.5 mm inside diameter
11.5 mm outside diameter
1.5 mm cross-section
Operating temperature -30 to 200 °C
Designed for process sensors
Reliable sealing performance
Compact replacement component
Suitable for industrial applications
Pack quantity of 5 pieces
Process sensor sealing
Pressure sensor installation
Industrial pipelines
Tanks and vessels
Process instrumentation
Fluid handling systems
Industrial automation
Maintenance applications
| Specification | Details |
|---|---|
| Product Code | E30517 |
| Product Type | O-ring |
| Model | O-RG 8,50X1,50/FKM 5 PIECE |
| Material | FKM |
| Inside Diameter | 8.5 mm |
| Outside Diameter | 11.5 mm |
| Cross Section | 1.5 mm |
| Ambient Temperature | -30 to 200 °C |
| Weight | 1.9 g |
| Pack Quantity | 5 pieces |
