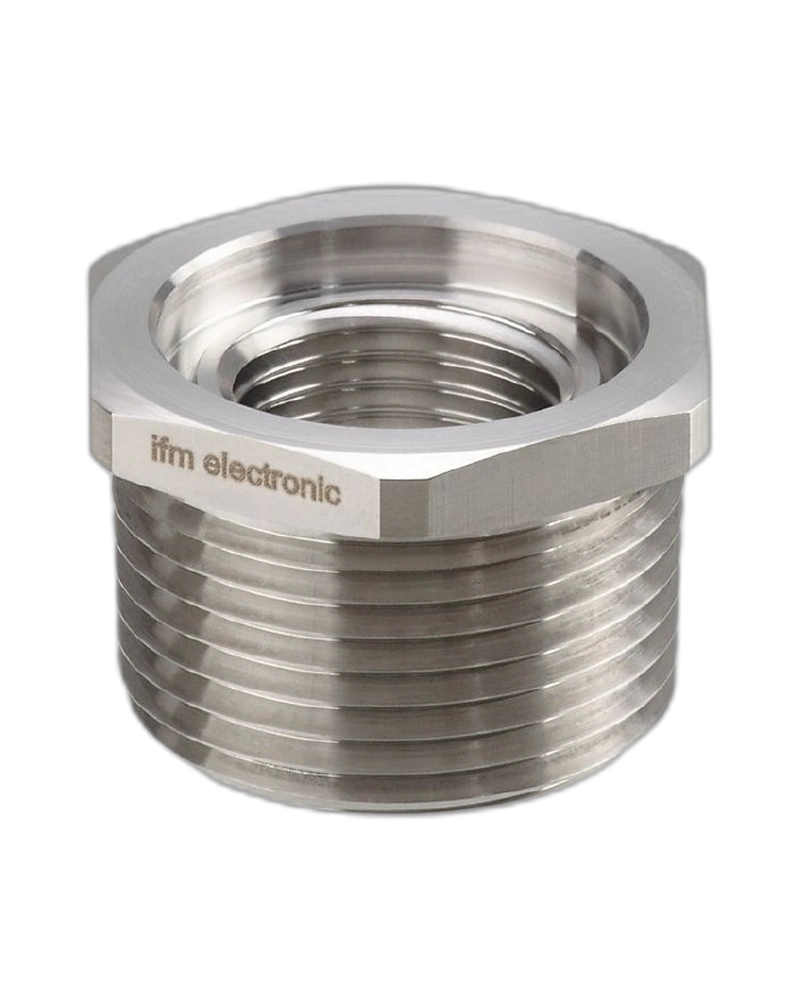

The IFM E30516 screw-in adapter provides a reliable interface between compatible process sensors and equipment using a 1" NPT process connection. Manufactured from stainless steel 1.4435/316L, it features a G1/2 sensor connection and a 1" NPT process connection. With a pressure rating of up to 400 bar, it is designed for demanding industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30516 is a screw-in adapter for process sensors designed to connect sensors with a G1/2 threaded connection to process equipment using a 1" NPT connection. It provides a practical and robust installation solution for industrial process instrumentation.
The adapter is manufactured from stainless steel 1.4435/316L. It incorporates a G1/2 threaded sensor connection and a 1" NPT process connection, providing a durable threaded interface.
The E30516 has a pressure rating of 400 bar / 40 MPa, making it suitable for high-pressure process applications when the complete installation is properly rated for the operating conditions.
The adapter makes it possible to integrate compatible process sensors into equipment using a different thread standard. Its stainless steel construction provides a robust solution for industrial process installations.
G1/2 sensor connection
1" NPT process connection
400 bar pressure rating
Stainless steel 1.4435/316L construction
Robust threaded connection
Designed for process sensors
Compact adapter design
Reliable mechanical installation
Suitable for industrial process equipment
Pack quantity of 1 piece
Pressure measurement systems
Industrial process monitoring
Process pipelines
Pressure vessels
Fluid handling systems
Machine instrumentation
Process automation
Industrial equipment
| Specification | Details |
|---|---|
| Product Code | E30516 |
| Product Type | Screw-in adapter for process sensors |
| Model | ADAPT G1/2 / 1NPT |
| Material | Stainless steel 1.4435 / 316L |
| Sensor Connection | G1/2 |
| Process Connection | 1" NPT |
| Pressure Rating | 400 bar / 40 MPa |
| Weight | 131.6 g |
| Pack Quantity | 1 piece |
| Application | Process sensor installation |
