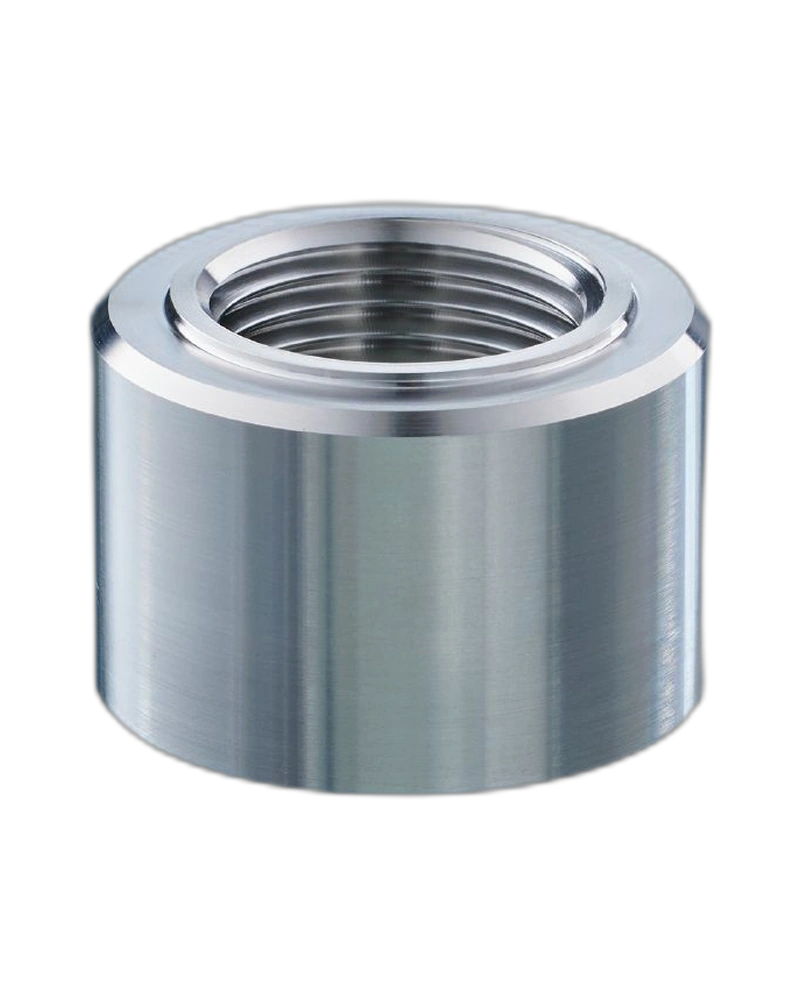

The E30509 welding adapter is designed for reliable installation of process sensors into industrial pipe and process systems. It features a G1/2 sensor connection, Ø32 mm welding adapter and stainless steel 316L construction. With a pressure rating of up to 160 bar, it provides a robust and dependable interface for process sensor mounting in demanding applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM E30509 is a welding sleeve designed for connecting process sensors to industrial process equipment. It provides a compact welded interface for compatible G1/2 process sensor connections.
The adapter is manufactured from stainless steel 1.4435/316L and features a G1/2 connection with a Ø32 mm welding adapter. Its sealing edge supports secure sensor installation.
The E30509 is rated for pressure applications up to 160 bar. Its stainless steel construction makes it suitable for industrial process environments where mechanical durability and reliable connection are important.
The welding sleeve provides a dedicated interface for integrating compatible process sensors into pipework and process equipment. Professional welding according to the manufacturer's installation instructions is required.
Stainless steel 1.4435/316L construction
G1/2 process sensor connection
Ø32 mm welding adapter
160 bar pressure rating
Integrated sealing edge
Compact installation design
Designed for process sensor mounting
Robust mechanical construction
Suitable for industrial process systems
Pack quantity of 1 piece
Process sensor installation
Industrial pipelines
Tanks and vessels
Pressure monitoring
Process automation
Fluid measurement systems
Industrial equipment
Process control applications
| Specification | Details |
|---|---|
| Product Code | E30509 |
| Product Type | Welding adapter for process sensors |
| Model | ADAPT G1/2-WELDING SLEEVE |
| Material | Stainless steel 1.4435 / 316L |
| Sensor Connection | G1/2 |
| Welding Adapter Diameter | Ø32 mm |
| Pressure Rating | 160 bar |
| Sealing | Sealing edge |
| Installation | Professional welding |
| Pack Quantity | 1 piece |
