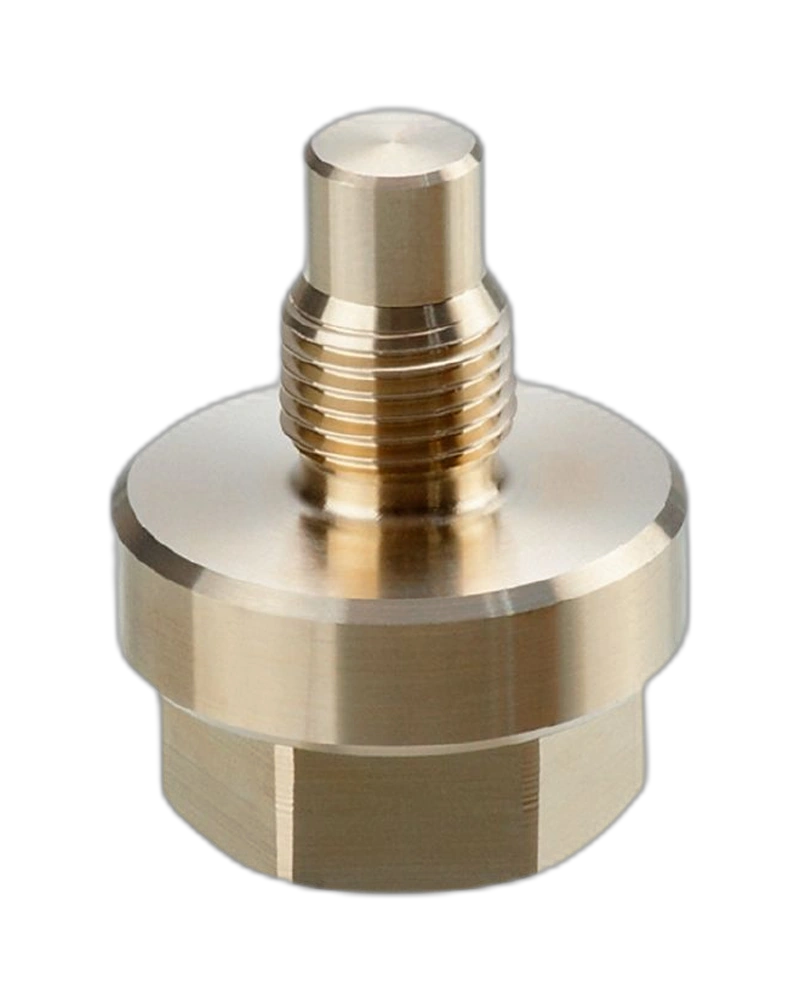

The E30508 welding mandrel is an installation accessory designed to assist welding of process connections. It helps carry heat away during the welding process, reducing thermal stress around the installation area. Manufactured from CW724R brass and featuring a G1/4 process connection, it provides a practical solution for accurate and controlled welding of compatible process adapters.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The IFM E30508 is a welding mandrel developed as an installation aid for welding adapters used with process connections. Its primary purpose is to support controlled welding by carrying away heat from the connection area.
The mandrel is manufactured from CW724R brass and is designed for G1/4 process connections. Its robust construction allows it to be used as a practical welding aid during adapter installation.
During welding, the E30508 helps dissipate heat from the process connection. This supports better control of the welding operation and helps protect the connection area from excessive heat.
The mandrel simplifies the installation process for compatible welding adapters. Its dedicated G1/4 design provides a suitable interface for process connection applications.
Designed as a welding installation aid
Reliable heat dissipation during welding
G1/4 process connection
CW724R brass construction
Suitable for welding adapters
Supports controlled welding operations
Helps manage welding heat
Robust mechanical design
Compact installation accessory
Pack quantity of 1 piece
Welding adapter installation
Process sensor mounting
Industrial process connections
Pipe installation
Tank fabrication
Pressure sensor installation
Process equipment assembly
Industrial automation systems
| Specification | Details |
|---|---|
| Product Code | E30508 |
| Product Type | Welding mandrel for process connections |
| Model | WELD MANDREL ADAPT G1/4 |
| Material | Brass CW724R |
| Process Connection | G1/4 |
| Main Function | Heat dissipation during welding |
| Application | Welding installation aid |
| Weight | 178.3 g |
| Pack Quantity | 1 piece |
