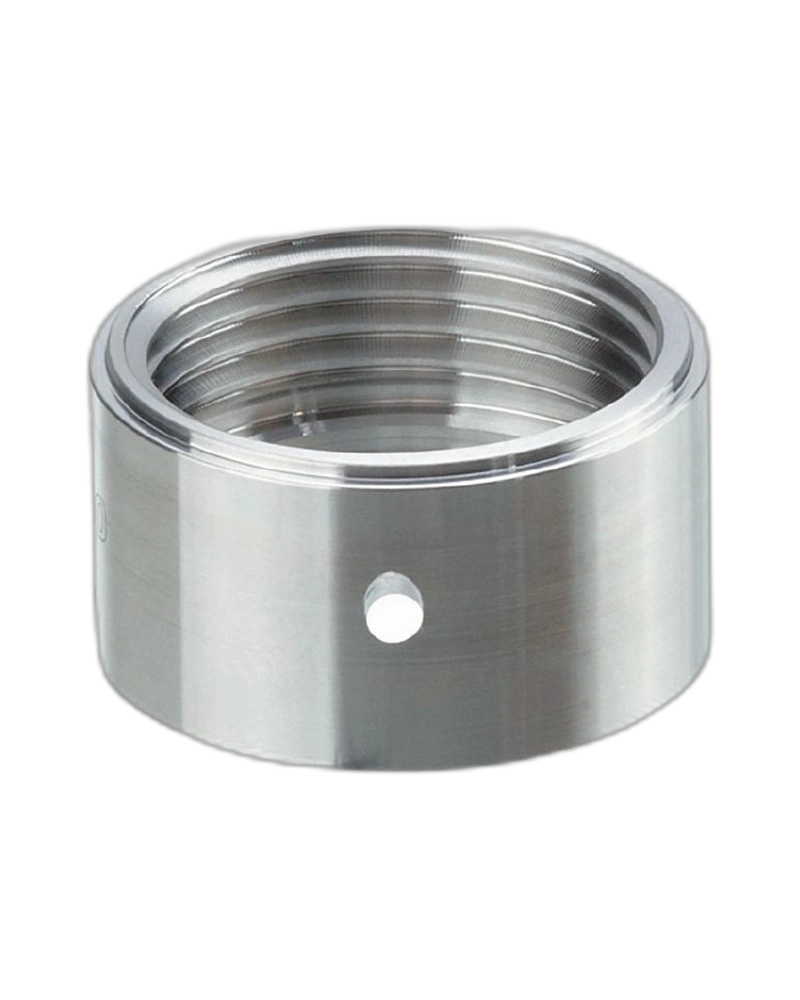

E30500 is an IFM welding adapter designed for process sensor installation with an Aseptoflex Vario connection. It features a G 1 sensor connection, leakage port and stainless steel 316L construction. The adapter is designed for installation of compatible LDL20x sensors and provides a 50 bar pressure rating, making it suitable for demanding hygienic and industrial process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E30500 provides an Aseptoflex Vario connection for compatible process sensors, supporting secure and reliable sensor installation in process equipment.
The integrated leakage port helps provide a controlled feature around the sealing area, supporting reliable installation and maintenance practices.
The adapter is specified with a 50 bar / 5 MPa pressure rating for compatible applications, supporting demanding process conditions.
Manufactured from stainless steel 316L / 1.4435, the adapter features a surface characteristic of Ra <0.4 µm / Rz = 4 µm and is designed according to the specified process connection geometry.
Aseptoflex Vario connection
G 1 sensor connection
Integrated leakage port
Stainless steel 316L construction
50 bar pressure rating
5 MPa pressure rating
Welding adapter 1.5 inch / 38.1 mm
DIN 11866 compatible dimensions
ASME-BPE Series C geometry
Suitable for LDL20x installation
Hygienic process systems
Process sensor installation
Food and beverage processing
Pharmaceutical equipment
Dairy processing systems
Tank and vessel applications
Industrial process measurement
High-pressure process applications
| Specification | Details |
|---|---|
| Product Code | E30500 |
| Product Type | Welding Adapter |
| Model | WELDING ASEPTO ADAPT D38/G1 |
| Sensor Connection | G 1 |
| Connection Type | Aseptoflex Vario |
| Pressure Rating | 50 bar / 5 MPa |
| Material | Stainless steel 1.4435 / 316L |
| Welding Adapter | 1.5" / 38.1 × 1.65 mm |
| Standard / Geometry | DIN 11866, Series C / ASME-BPE |
| Surface Characteristic | Ra <0.4 µm / Rz = 4 µm |
| Feature | Leakage port |
| Weight | 113.8 g |
| Pack Quantity | 1 pc. |
