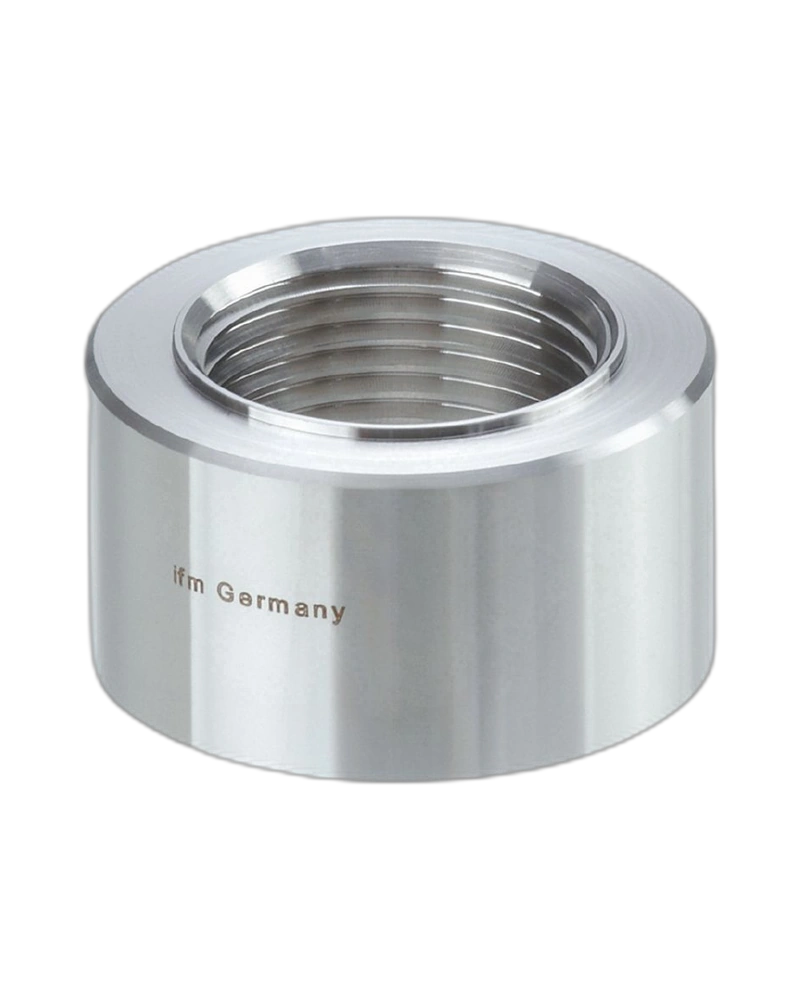

E30498 is an IFM welding adapter for process sensors with a G 1 internal thread and Aseptoflex Vario connection. Manufactured from stainless steel 316L, it features a leakage port and sealing area for reliable process installation. With a 16 bar pressure rating and hygienic surface characteristics, it is suitable for demanding process measurement and sensor installation applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E30498 provides a welded process connection for compatible sensors, supporting secure installation in industrial process equipment.
The adapter features a G 1 internal thread with an Aseptoflex Vario sealing concept for compatible process sensor assemblies.
The integrated leakage port provides an additional feature for monitoring the sealing area and supporting reliable process installation.
The adapter is manufactured from stainless steel 316L / 1.4435 and has a welded adapter diameter of 50 mm. Its wetted surface characteristics are specified at Ra <0.4 µm / Rz 4 µm.
G 1 internal thread
Aseptoflex Vario connection
Integrated leakage port
Stainless steel 316L construction
Welded adapter Ø50 mm
16 bar pressure rating
1.6 MPa pressure rating
G 1 sealing cone
Ra <0.4 µm surface characteristic
1-piece pack quantity
Process sensor installation
Industrial process measurement
Hygienic process systems
Food and beverage equipment
Pharmaceutical process equipment
Process instrumentation
Tank and vessel connections
Industrial automation systems
| Specification | Details |
|---|---|
| Product Code | E30498 |
| Product Type | Welding Adapter |
| Model | WELDING ADAPT G1 V4A |
| Sensor Connection | G 1 internal thread |
| Connection Type | Aseptoflex Vario |
| Material | Stainless steel 1.4435 / 316L |
| Pressure Rating | 16 bar / 1.6 MPa |
| Welding Adapter Diameter | Ø50 mm |
| Surface Characteristic | Ra <0.4 µm / Rz = 4 µm |
| Feature | Leakage port |
| Pack Quantity | 1 pc. |
