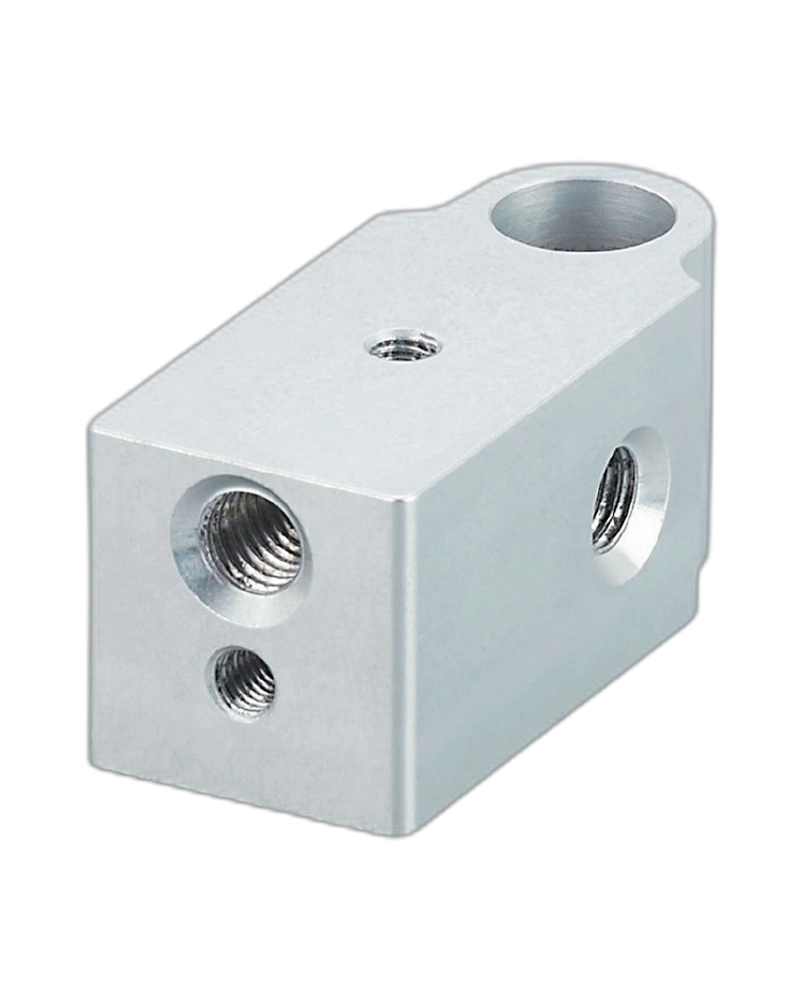

IFM E30469 is a mounting adapter designed for vibration monitoring systems and compatible vibration sensors. It is intended for mounting applications involving Ø6 mm and Ø8 mm mechanical interfaces. The adapter uses M5 × 0.8 and M8 × 1.25 internal threads to provide flexible sensor connection options. It is manufactured from transparent anodized aluminium, providing a lightweight and durable construction. The adapter weighs approximately 72.9 g and is supplied as one piece. Its compact design makes it suitable for industrial vibration sensors and condition monitoring installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E30469 provides a reliable mechanical mounting interface for compatible vibration sensors. It is designed to simplify sensor installation where Ø6 mm and Ø8 mm mounting requirements are involved. The adapter can be used as part of vibration monitoring systems where sensors must be securely fixed to machinery. Stable mechanical mounting is important because vibration sensors need direct and reliable contact with the monitored machine. This adapter supports that requirement through its dedicated mounting design.
The adapter features M5 × 0.8 and M8 × 1.25 internal threads. This allows compatible sensor and mounting components to be connected according to the required thread configuration. The arrangement provides flexibility when integrating different vibration sensor accessories. It also helps reduce the need for multiple separate mounting solutions. Proper thread selection and tightening should be followed during installation.
E30469 is made from aluminium with a transparent anodized surface finish. The material provides a lightweight construction while maintaining suitable mechanical strength for sensor mounting applications. Anodizing improves surface protection and helps the adapter withstand normal industrial handling. The approximately 72.9 g weight keeps the mounting assembly relatively lightweight. This is useful for vibration monitoring applications where mounting mass can be an important consideration.
A properly installed vibration sensor can provide more consistent condition monitoring data. E30469 helps establish a stable connection between the sensor and the machine structure. Its compact design allows installation in areas where space is limited. The adapter can be used with compatible IFM vibration monitoring components and sensor systems. Correct mounting remains important to ensure that vibration signals are transferred effectively to the sensor.
M6/M8 mounting adapter design
Designed for vibration sensors
Ø6 / Ø8 mm mounting applications
M5 × 0.8 internal thread
M8 × 1.25 internal thread
Aluminium construction
Transparent anodized surface
Approx. 72.9 g weight
Compact sensor mounting solution
Suitable for condition monitoring
Vibration sensors
Machine condition monitoring
Motor monitoring
Pump monitoring
Industrial rotating machinery
Fan and blower systems
Predictive maintenance
Vibration analysis installations
| Specification | Details |
|---|---|
| Product Code | E30469 |
| Product Type | Mounting Adapter |
| Product Designation | ADAPT M6/M8 FOR VIBRATION SENSORS |
| Application | Vibration monitoring |
| Mounting Diameter | Ø6 / Ø8 mm |
| Internal Thread 1 | M5 × 0.8 |
| Internal Thread 2 | M8 × 1.25 |
| Material | Aluminium |
| Surface Finish | Transparent anodized |
| Weight | Approx. 72.9 g |
| Pack Quantity | 1 pc. |
| Main Function | Sensor mounting |
