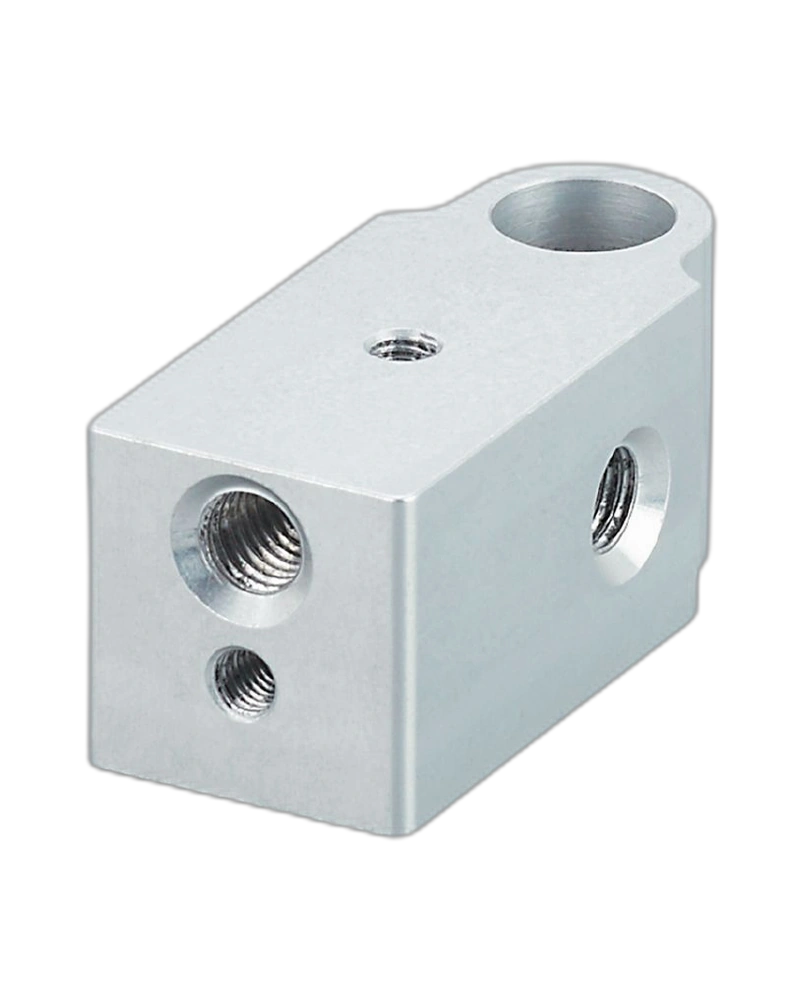

IFM E30468 is a mounting adapter designed for vibration monitoring systems and compatible vibration sensors. It provides a practical mechanical interface for mounting sensors with different mounting requirements. The adapter is designed for Ø10 mm and Ø12 mm mounting applications and features M5 × 0.8 and M8 × 1.25 internal threads. It is manufactured from transparent anodized aluminium for a lightweight yet durable construction. With a weight of approximately 72 g, it can be integrated into vibration monitoring installations without adding significant mechanical load. The adapter is supplied as one piece and is suitable for industrial vibration measurement applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E30468 provides a convenient mounting solution for vibration sensors used in industrial condition monitoring systems. The adapter allows compatible sensors to be mechanically fixed to suitable machine surfaces. Its dual-thread arrangement helps accommodate different mounting requirements within vibration monitoring installations. A secure mounting arrangement is important because vibration sensors need a stable mechanical connection for reliable measurement. The adapter helps simplify sensor installation while maintaining a compact overall arrangement.
The adapter incorporates M5 × 0.8 and M8 × 1.25 internal threads. This allows compatible vibration sensors and mounting components to be connected using the appropriate thread configuration. The dual-thread arrangement increases installation flexibility and reduces the need for separate mounting accessories. It is particularly useful when vibration monitoring systems include sensors with different mechanical connection requirements. Correct thread matching should always be confirmed before installation.
E30468 is manufactured from aluminium with a transparent anodized surface finish. Aluminium provides a good combination of low weight and mechanical durability for mounting accessories. The anodized finish provides additional surface protection and helps maintain the appearance of the adapter in industrial environments. Its approximately 72 g weight makes it suitable for installations where unnecessary mechanical mass should be avoided. The construction is designed for vibration monitoring accessories and industrial sensor mounting.
Proper mechanical mounting is essential for accurate vibration monitoring. A loose or unstable sensor connection can influence measurement quality and may introduce unwanted vibration signals. E30468 provides a defined mounting interface to help achieve stable sensor installation. Its compact design makes it suitable for machinery where available mounting space is limited. The adapter can therefore support practical installation of vibration monitoring sensors on industrial equipment.
M10/M12 mounting adapter design
Designed for vibration sensors
Ø10 / Ø12 mm mounting applications
M5 × 0.8 internal thread
M8 × 1.25 internal thread
Transparent anodized aluminium
Approx. 72 g weight
Compact mechanical construction
Supports stable sensor mounting
Suitable for vibration monitoring systems
Vibration monitoring systems
Condition monitoring equipment
Industrial machinery
Rotating equipment
Motor monitoring
Pump monitoring
Fan and blower monitoring
Machine maintenance systems
| Specification | Details |
|---|---|
| Product Code | E30468 |
| Product Type | Mounting Adapter |
| Product Designation | ADAPT M10/M12 FOR VIBRATION SENSORS |
| Application | Vibration monitoring |
| Mounting Diameter | Ø10 / Ø12 mm |
| Internal Thread 1 | M5 × 0.8 |
| Internal Thread 2 | M8 × 1.25 |
| Material | Aluminium |
| Surface Finish | Transparent anodized |
| Weight | Approx. 72 g |
| Pack Quantity | 1 pc. |
| Main Function | Vibration sensor mounting |
