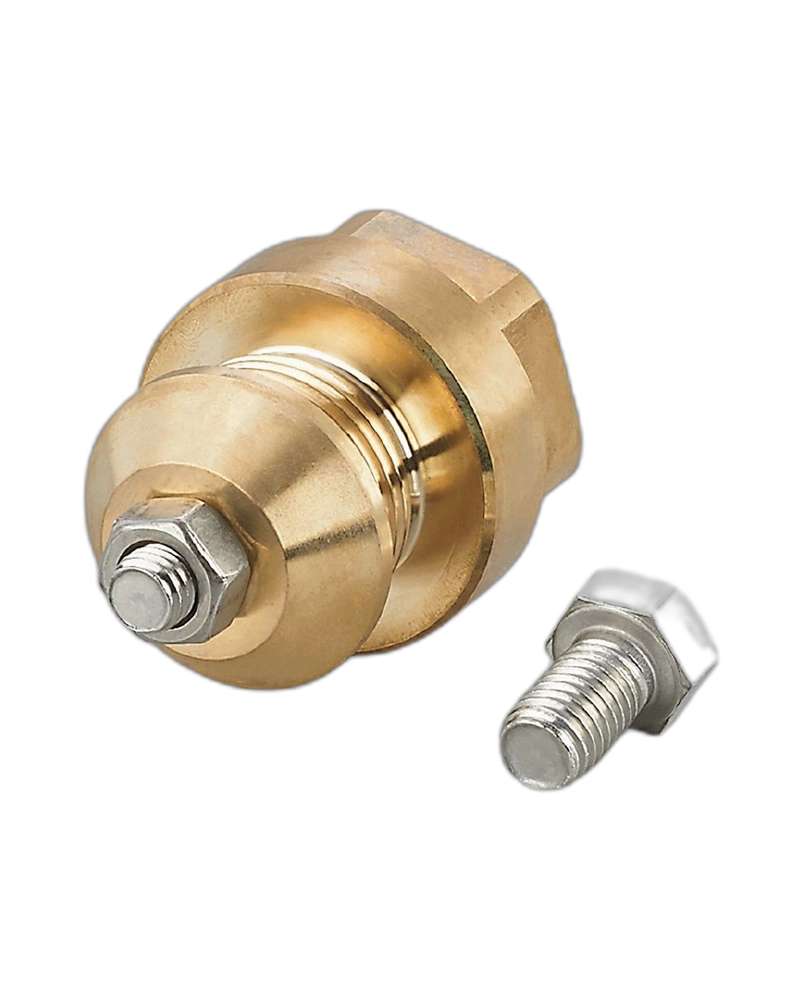

IFM E30452 is a welding mandrel designed as a mounting aid for welding adapters used with Aseptoflex Vario process connections. It helps protect the sealing edge during the welding operation and supports reliable heat dissipation. The mandrel is designed specifically for G 1 Aseptoflex Vario process connections. It combines brass 2.0321 / CW508L and stainless-steel components for a robust installation tool. The complete assembly weighs approximately 679 g and is supplied as one piece. E30452 is useful when hygienic process connections require accurate welding and protection of the sealing geometry.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
E30452 acts as an installation aid during the welding of compatible process adapters. It helps maintain the correct shape of the sealing area while the adapter is being welded into the process installation. This is important because excessive heat or deformation can affect the sealing surface. The mandrel provides physical support during the welding process. It is therefore useful for installers working with hygienic Aseptoflex Vario connections.
One of the main functions of the E30452 is protecting the sealing edge during welding. The sealing edge is a critical part of the process connection because it contributes to the final sealing performance. The mandrel helps prevent unwanted deformation or damage during installation. This can improve the quality and consistency of the finished welded connection. Correct welding procedures should still be followed according to the installation requirements.
The welding process generates significant heat around the connection area. E30452 is designed to support reliable heat dissipation during welding. By helping transfer heat away from sensitive areas, it reduces the potential impact of excessive thermal loading. This supports better control of the welding process. The mandrel therefore contributes both mechanical support and thermal management during installation.
The welding mandrel uses brass 2.0321 / CW508L and stainless-steel materials. This construction provides the mechanical strength required for welding support and repeated handling. The unit weighs approximately 679 g, giving it a stable and substantial design for installation work. It is intended for G 1 Aseptoflex Vario process connections. The welding adapter itself is not included with the mandrel.
Welding mandrel for process connections
Designed for Aseptoflex Vario
G 1 process connection
Protects sealing edge
Supports heat dissipation
Brass CW508L construction
Stainless-steel components
Approx. 679 g weight
Supports accurate welding
Suitable for hygienic process installation
Aseptoflex Vario connections
Hygienic process equipment
Food processing machinery
Pharmaceutical process equipment
Tank and vessel installations
Process piping
Sensor connection welding
Industrial process automation
| Specification | Details |
|---|---|
| Product Code | E30452 |
| Product Type | Welding Mandrel |
| Product Designation | WELD MANDREL ADAPT G1 |
| Design | Welding aid with sealing-edge protection |
| Application | Heat dissipation during welding |
| Process Connection | G 1 Aseptoflex Vario |
| Material | Brass 2.0321 / CW508L; Stainless steel |
| Weight | Approx. 679 g |
| Pack Quantity | 1 pc. |
| Main Function | Welding support |
| Sealing Protection | Yes |
| Heat Dissipation | Yes |
