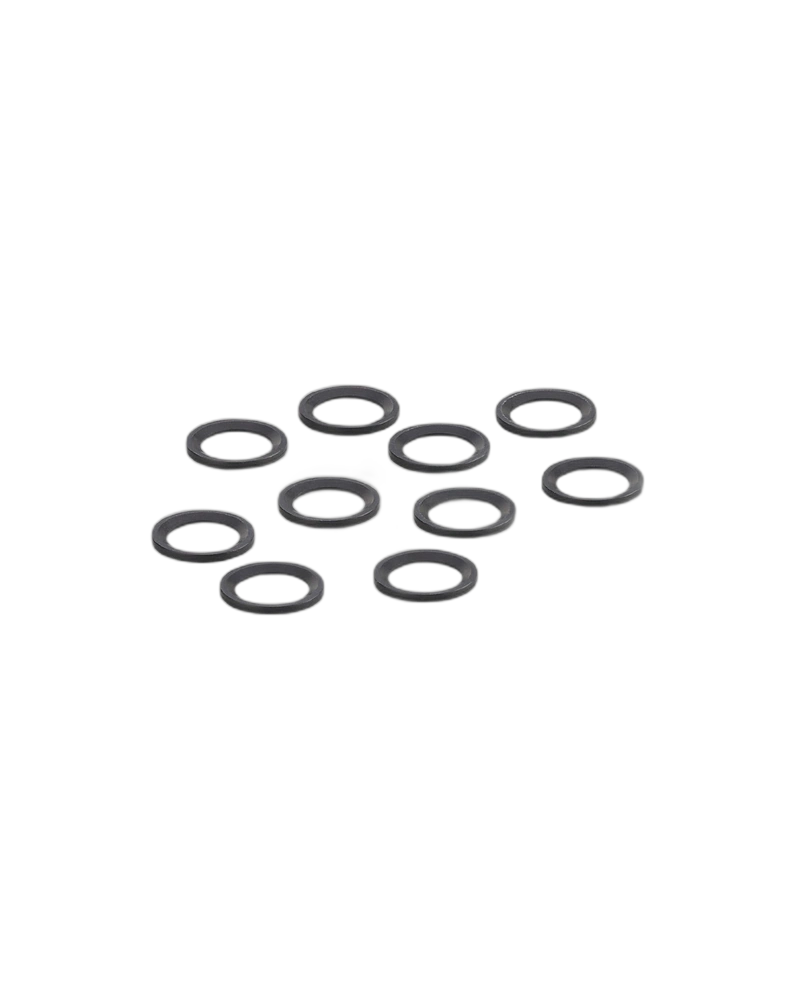

IFM E30442 is an EPDM formed sealing ring designed for process devices with a G 1/4 A process connection. It provides a reliable sealing interface for compatible sensors and process adapters installed in tanks, containers and pipe systems. The gasket is manufactured from EPDM and is designed according to DIN 3869. It has an internal diameter of 11.6 mm and an external diameter of 16.5 mm. The specified operating temperature range is -40 to 130°C. The gasket weighs approximately 3.2 g and is supplied in a pack of 10 pieces, making it practical for maintenance and replacement requirements.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30442 provides sealing between compatible G 1/4 A process connections. Its formed profile is designed to seat correctly within the associated sealing area. A properly installed gasket helps reduce the possibility of leakage around the threaded process connection. It is suitable for sensor installations where a replaceable process seal is required. The sealing surfaces should be clean and free from damage before installation.
The gasket uses EPDM as its sealing material. EPDM provides suitable performance for many water-based and process applications when the media is compatible with the material. The specified operating temperature range is -40 to 130°C. This gives the gasket a useful operating range for industrial sensor installations. Material compatibility should always be confirmed for the actual process medium and cleaning conditions.
E30442 is designed according to DIN 3869, providing a defined sealing geometry for compatible process connections. Its 11.6 mm internal diameter and 16.5 mm external diameter provide the specified dimensions for the G 1/4 A connection. Correct positioning is essential to achieve effective sealing. The gasket is particularly useful as a replacement component during sensor maintenance.
EPDM formed sealing ring
Designed for G 1/4 A process connections
DIN 3869 design
11.6 mm internal diameter
16.5 mm external diameter
-40 to 130°C operating temperature
Approx. 3.2 g weight
Pack of 10 pieces
Suitable for tanks and piping
Supports leak-resistant process connections
Pressure sensor installation
Process sensor adapters
Tank connections
Pipe connections
Industrial fluid systems
Water-based process applications
Process instrumentation
Sensor maintenance and replacement
| Specification | Details |
|---|---|
| Product Code | E30442 |
| Product Type | Gasket / Formed Seal |
| Product Designation | SEAL RING EPDM G1/4 |
| Application | Devices with G 1/4 A process connection |
| Standard | DIN 3869 |
| Material | EPDM |
| Inside Diameter | 11.6 mm |
| Outside Diameter | 16.5 mm |
| Operating Temperature | -40 to 130°C |
| Weight | Approx. 3.2 g |
| Pack Quantity | 10 pcs. |
| Main Function | Process connection sealing |
