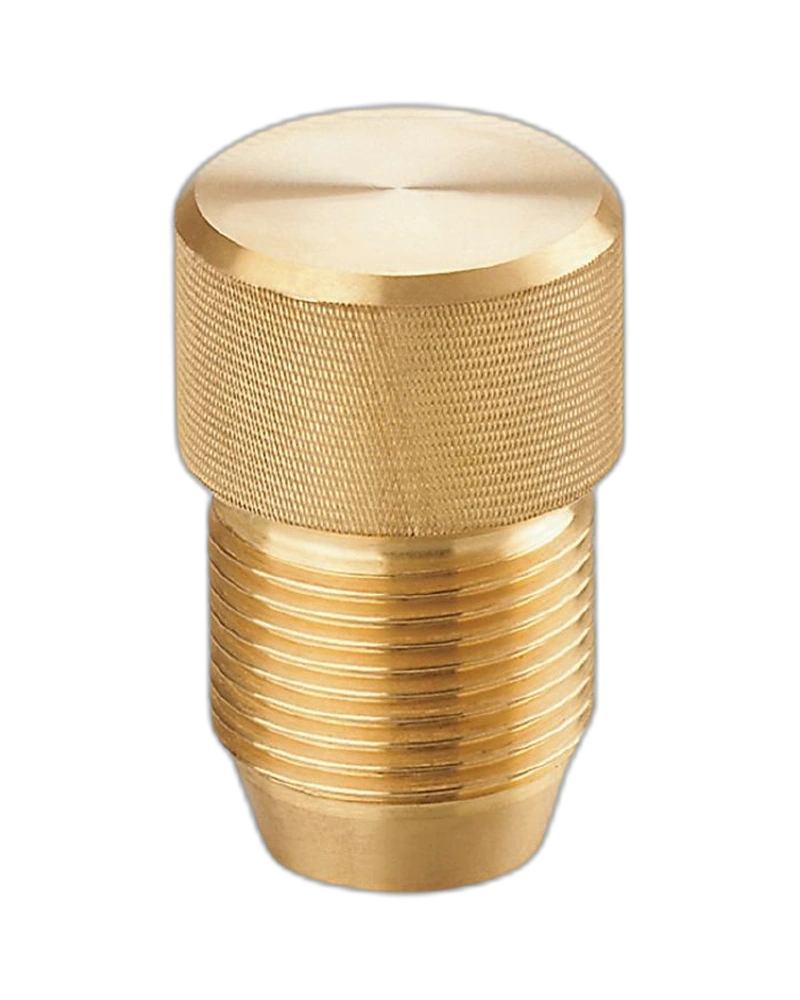

IFM E30435 is a welding mandrel designed as an installation aid for hygienic process connections and welding adapters. It is used during welding to help protect the sealing edge of the process connection from distortion or damage. The mandrel also helps transfer and dissipate heat generated during the welding process. Its G 1 process connection makes it suitable for compatible IFM hygienic process adapters. The component is manufactured from brass CW614N / 2.0401 for reliable mechanical performance during installation. E30435 is especially useful when accurate and clean welding of process connections is required.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30435 provides mechanical support during the welding of compatible process connections. It helps maintain the shape and integrity of the connection while welding work is carried out. One of its important functions is to carry away heat generated during the welding operation. This helps reduce the possibility of excessive thermal influence around the sealing area. The mandrel therefore supports a more controlled welding process and helps protect the sealing edge.
The welding mandrel is intended for process connection systems where reliable sealing and clean installation are important. Its G 1 configuration is compatible with suitable hygienic process adapters and connections. The mandrel helps installers maintain the correct geometry during welding. This can be particularly useful in food, beverage and other hygienic process installations. A properly prepared welding connection can contribute to reliable sensor installation and long-term process integrity.
E30435 is manufactured from brass CW614N / 2.0401. This material provides the mechanical strength required for repeated installation and welding-support operations. The component has a specified weight of approximately 490.5 g, making it a substantial installation aid. Its wetted-part surface characteristic is specified at Ra 10 according to the available datasheet. The robust construction allows the mandrel to be used as a dedicated tool for compatible process connection work.
The mandrel is positioned in the compatible process connection before or during the welding operation according to the relevant installation procedure. It should be used with the correct adapter and welding arrangement to ensure proper alignment. After welding and cooling, the mandrel can be removed and the process connection prepared for sensor installation. Correct cleaning and handling are important to prevent contamination of hygienic process components. The product is supplied as one piece.
Welding mandrel for process connections
Designed for compatible G 1 hygienic adapters
Protects sealing edge during welding
Helps dissipate welding heat
Brass CW614N / 2.0401 construction
Approx. 490.5 g weight
Supports accurate welding alignment
Useful for hygienic process installations
Helps reduce thermal damage to sealing areas
Single-piece accessory
Hygienic process connection welding
Food and beverage processing equipment
Process sensor adapter installation
Sanitary piping systems
Tank and vessel connections
Temperature and pressure sensor installations
Industrial process equipment
Process automation systems
| Specification | Details |
|---|---|
| Product Code | E30435 |
| Product Type | Welding Mandrel |
| Product Designation | WELD MANDREL ADAPT G1 |
| Function | Welding support / heat dissipation |
| Process Connection | G 1 |
| Material | Brass CW614N / 2.0401 |
| Wetted Surface Characteristic | Ra 10 |
| Weight | Approx. 490.5 g |
| Pack Quantity | 1 pc. |
| Application | Process connection welding |
| Main Benefit | Protects sealing edge during welding |
