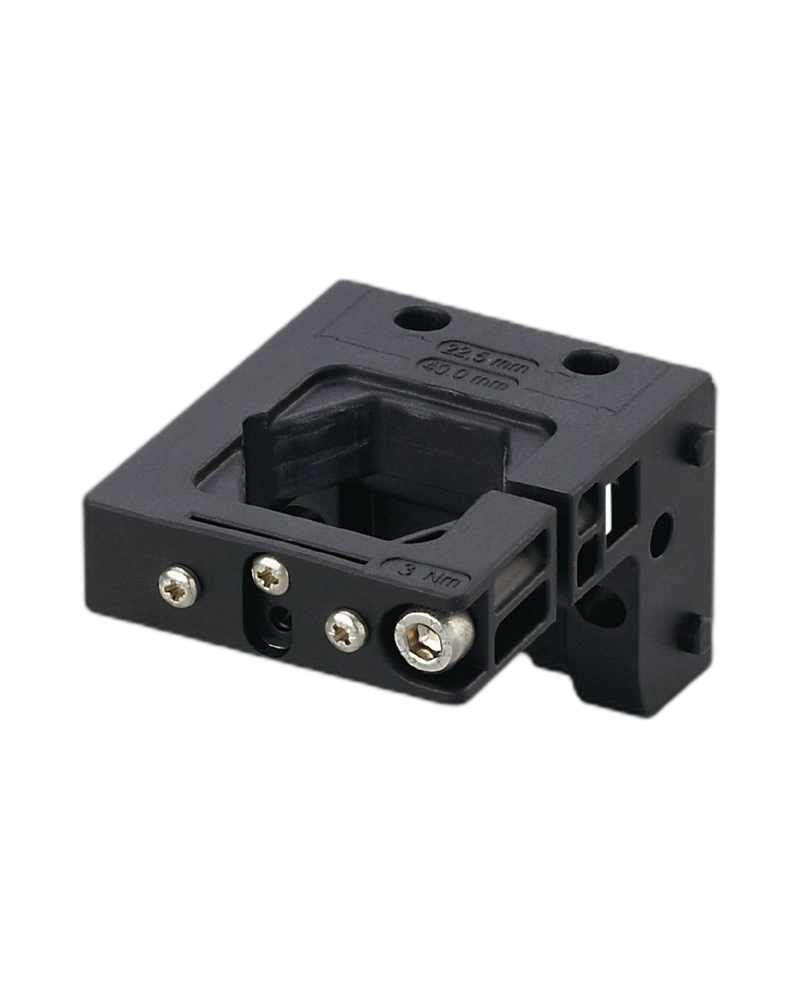

IFM E30421 is a universal mounting bracket designed for secure installation of compatible pressure sensors. It supports both free-standing and wall-mounted sensor installation, providing flexibility for different machine and plant layouts. The bracket uses a robust PA 6.6-GF25-M15 material construction designed for industrial environments. Its compact dimensions are approximately 40 × 50 × 64 mm and its weight is approximately 55.5 g. The mounting kit includes the required screws and square nut for convenient installation. The bracket provides a simple and cost-effective solution for maintaining a stable sensor position.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30421 is designed to provide flexible mounting options for pressure sensors. It can be used for wall mounting as well as free-standing installation depending on the machine layout. This flexibility helps installers position the sensor in a convenient location for measurement and maintenance. The bracket provides a dedicated mechanical support structure rather than relying on the sensor connection alone. This helps maintain a stable installation during normal industrial operation.
The bracket is manufactured from PA 6.6-GF25-M15, a reinforced polyamide material designed for mechanical applications. Its construction provides a practical combination of strength and low weight. The bracket weighs approximately 55.5 g, making it easy to handle during installation. Its compact dimensions allow it to be integrated into machine structures and mounting surfaces without requiring excessive space.
The mounting arrangement provides a secure hold for compatible pressure sensors. The supplied hardware includes an M5 × 40 socket-head screw, two M5 × 8 socket-head screws, an M5 square nut and three 3 mm recess self-tapping screws. This hardware supports different mounting configurations. The bracket is therefore suitable for installations where secure sensor positioning is required in harsh industrial environments.
Universal mounting bracket
Suitable for pressure sensors
Supports wall mounting
Supports free-standing mounting
Robust PA 6.6-GF25-M15 construction
Compact 40 × 50 × 64 mm dimensions
Approx. 55.5 g weight
Secure sensor fixing
Supplied with mounting hardware
Suitable for harsh industrial environments
Pressure sensor mounting
Industrial automation equipment
Machine control systems
Process monitoring equipment
Wall-mounted sensor installations
Free-standing sensor installations
Factory automation
Industrial instrumentation
| Specification | Details |
|---|---|
| Product Code | E30421 |
| Product Type | Angle Bracket |
| Product Designation | Universal Mounting Bracket |
| Application | Pressure sensors |
| Mounting Type | Wall / free-standing |
| Dimensions | 40 × 50 × 64 mm |
| Weight | Approx. 55.5 g |
| Material | PA 6.6-GF25-M15 |
| Included Screw | 1 × M5 × 40 mm socket-head screw |
| Included Screws | 2 × M5 × 8 mm socket-head screws |
| Included Nut | 1 × M5 square nut |
| Additional Screws | 3 × 3 mm recess self-tapping screws |
| Pack Quantity | 1 pc. |
