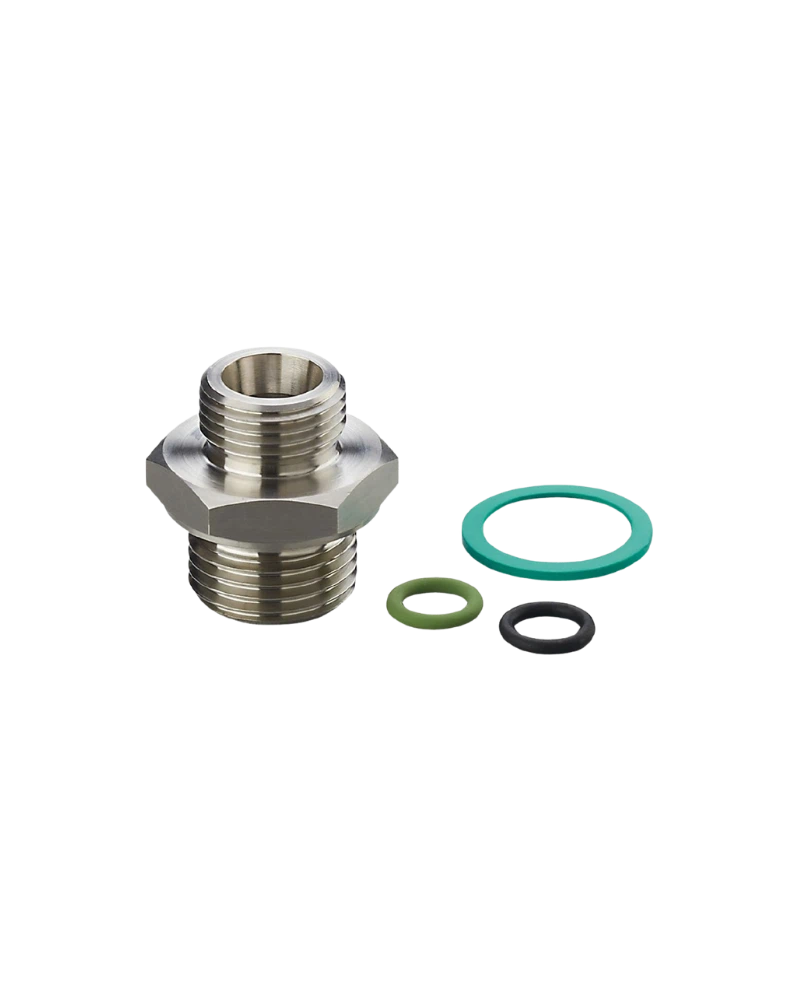

IFM E30418 is a stainless-steel screw-in adapter designed for installing compatible process and temperature sensors into containers and pipes. It provides a secure connection between sensors with an M18 x 1.5 internal thread and process equipment using a G 1/2 connection. The adapter is manufactured from 316L stainless steel, providing good mechanical strength and resistance for industrial process applications. It supports liquids and gases and is designed for applications requiring reliable sensor mounting. With a pressure rating of up to 300 bar, the adapter can be used in demanding process environments. The 21 mm insertion depth is suitable for compatible SID, SFD and TN measuring probes.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30418 provides an M18 x 1.5 internal thread for compatible measuring probes and a G 1/2 process connection for installation into process equipment. This threaded arrangement allows the sensor to be mounted securely while maintaining a defined insertion depth. The adapter is designed for simple screw-in installation and can be used in containers, pipes and other process equipment. The supplied sealing components help establish a suitable connection between the sensor and process interface. Proper tightening and sealing should be followed according to the installation requirements of the application.
The adapter has a pressure rating of up to 300 bar, making it suitable for high-pressure process installations when the complete system is rated appropriately. Its 316L stainless-steel construction provides durability in industrial environments. The adapter is intended for liquids and gases within the applicable process conditions. The robust threaded design provides stable mechanical fixing of the sensor. This makes E30418 useful where secure sensor installation and high-pressure capability are important.
E30418 includes sealing components to support reliable process integration. The adapter is made from stainless steel 1.4404/316L, while FKM is used for the supplied O-ring/sealing components. Its compact construction has an approximate weight of 61.5 g. The adapter is designed to provide a practical transition between the sensor thread and the process connection. This construction helps simplify the installation of compatible process sensors without requiring custom mounting arrangements.
M18 x 1.5 internal sensor connection
G 1/2 process connection
300 bar pressure rating
316L / 1.4404 stainless-steel construction
21 mm probe insertion depth
Suitable for SID, SFD and TN probes
Suitable for liquids and gases
FKM sealing components
Secure screw-in mounting
Suitable for industrial process applications
Process temperature sensor installation
Sensor mounting in containers
Sensor mounting in process pipes
Liquid process monitoring
Gas process applications
High-pressure process installations
Industrial automation systems
Process instrumentation
| Specification | Details |
|---|---|
| Product Code | E30418 |
| Product Type | Screw-in Adapter |
| Product Designation | ADAPT TN/G1/2/VA/O-RG |
| Sensor Connection | M18 x 1.5 internal thread |
| Process Connection | G 1/2 |
| Application | Liquids and gases |
| Pressure Rating | 300 bar / 30 MPa |
| Probe Insertion Depth | 21 mm |
| Compatible Probes | SID, SFD, TN |
| Housing Material | Stainless steel 1.4404 / 316L |
| Sealing | FKM |
| Weight | Approx. 61.5 g |
| Included Accessories | O-ring / gasket |
| Pack Quantity | 1 pc. |
| Application Type | Industrial process sensor mounting |
