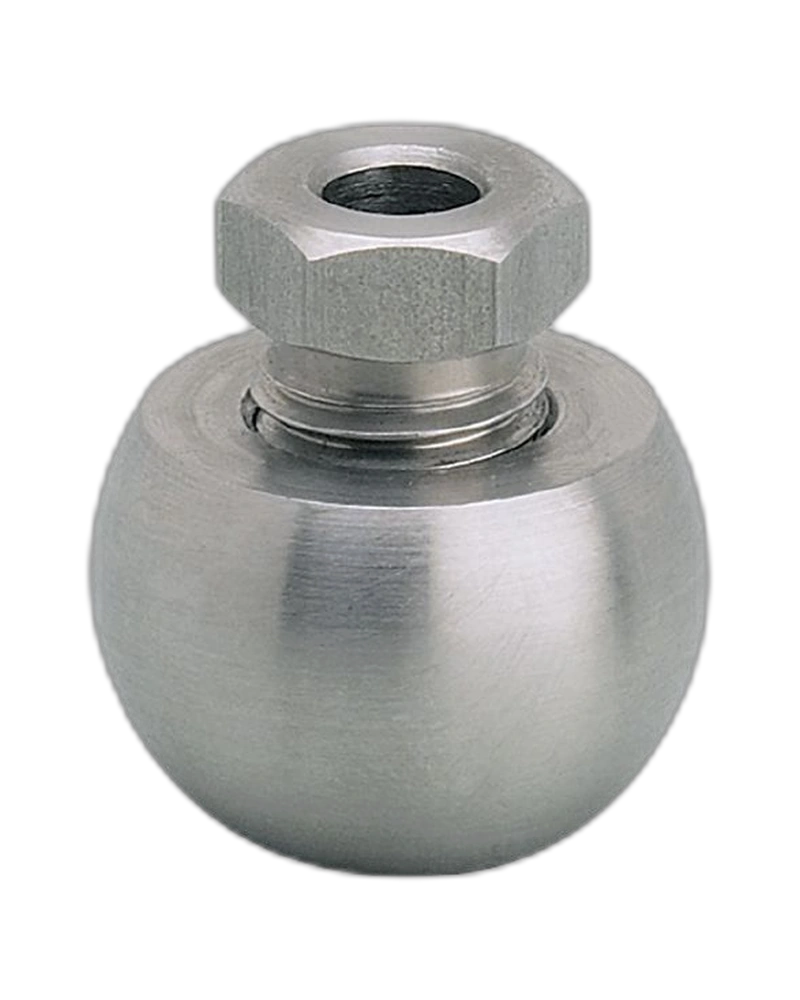

IFM E30407 is a hygienic welding adapter designed for temperature sensors with a 6 mm probe diameter. It provides a process connection for compatible clamp-mounted temperature sensors and is designed for hygienic industrial applications. The adapter uses a Ø25 mm welding adapter and a clamp fitting arrangement for integration into process equipment. It is manufactured from stainless steel 316L/1.4404 with a PEEK clamping ring. The adapter is rated for pressures up to 10 bar and ambient temperatures from -10 to 150°C. Its hygienic construction makes it suitable for food, beverage and other sanitary process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30407 provides a practical way to install compatible Ø6 mm temperature sensors into hygienic process equipment. Its welding adapter design allows the fitting to be permanently integrated into a process pipe or vessel. The clamp connection then provides a convenient interface for the temperature sensor. This arrangement combines secure process integration with easier sensor installation and maintenance. The stainless-steel construction is well suited to hygienic environments.
The adapter is manufactured from stainless steel 1.4404/316L, while the clamping ring is made from PEEK. These materials provide a combination of mechanical strength, process compatibility and resistance to demanding operating conditions. The wetted process-side design is suitable for applications requiring hygienic materials. The compact 56.1 g construction makes it easy to integrate without adding significant weight to the process assembly.
E30407 supports ambient temperatures from -10 to 150°C and has a pressure rating of 10 bar. These operating limits make it suitable for many food, beverage and industrial process applications. The maximum tightening torque is specified as 10 Nm. Proper installation and compatibility between the process medium and the adapter materials should be verified before use.
Hygienic welding adapter
Designed for Ø6 mm temperature sensors
Ø25 mm welding adapter
Clamp fitting process connection
316L stainless-steel construction
PEEK clamping ring
10 bar pressure rating
-10 to 150°C ambient temperature range
Maximum tightening torque 10 Nm
Compact 56.1 g design
Suitable for hygienic process installations
Food processing machinery
Beverage processing plants
Dairy processing systems
Pharmaceutical process equipment
Hygienic temperature monitoring
Sanitary process piping
Liquid processing systems
Industrial temperature measurement
| Specification | Details |
|---|---|
| Product Code | E30407 |
| Product Type | Welding Adapter |
| Product Designation | Welding Adapt D6 Hygienic |
| Application | Temperature sensors Ø6 mm |
| Process Connection | Clamp fitting |
| Welding Adapter | Ø25 mm |
| Pressure Rating | 10 bar / 1 MPa |
| Ambient Temperature | -10 to 150°C |
| Material | Stainless steel 1.4404 / 316L |
| Clamping Ring | PEEK |
| Sensor Design | For temperature sensors Ø6 mm |
| Tightening Torque | ≤10 Nm |
| Weight | Approx. 56.1 g |
| Pack Quantity | 1 pc. |
| Application | Hygienic process installations |
