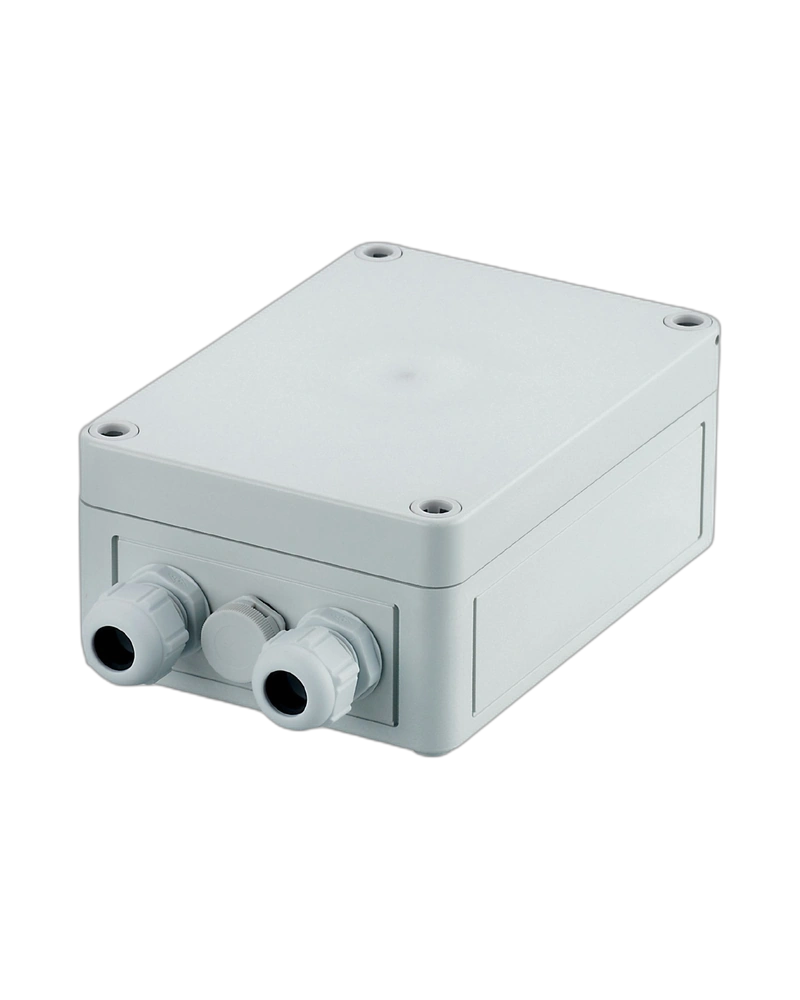

IFM E30401 is a junction or splitter box designed for submersible pressure transmitter installations. It provides a convenient connection point while incorporating ventilation for the transmitter's pressure reference system. The unit is designed for PS3 and PS4 submersible pressure transmitters and is manufactured with a plastic housing. Its IP67 protection rating makes it suitable for industrial environments where protection against dust and water ingress is required. The junction box has an integrated ventilation function that supports proper pressure reference conditions. It is a practical accessory for organised and reliable wiring of submersible pressure transmitters.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30401 provides a structured connection point for submersible pressure transmitter wiring. It helps separate and organise the transmitter connection from the rest of the electrical installation. The integrated ventilation arrangement is particularly important for submersible pressure applications. It helps maintain the reference pressure required for hydrostatic measurement. This makes the unit more than a conventional junction box and allows it to support the functional requirements of the pressure transmitter installation.
Submersible pressure transmitters require a suitable pressure reference through the capillary tube. The E30401 incorporates ventilation to help maintain this reference. This is important because blocked or poorly protected ventilation can affect pressure measurement accuracy. The box therefore helps provide a protected location for the ventilation path and electrical connections. It can be used in combination with other IFM submersible pressure transmitter accessories.
The E30401 has an IP67 protection rating and a plastic housing. This provides protection suitable for many industrial environments where dust and temporary water exposure may occur. Its compact construction allows it to be positioned conveniently within a sensor installation. The unit weighs approximately 275.2 g and is supplied as one piece.
Junction box for submersible pressure transmitters
Integrated ventilation
Designed for PS3 and PS4 transmitters
IP67 protection rating
Plastic housing construction
Supports organised transmitter wiring
Helps maintain pressure reference ventilation
Suitable for industrial environments
Compact installation accessory
Supplied as one piece
Submersible pressure measurement
Water tank level monitoring
Wastewater treatment systems
Water treatment plants
Reservoir level measurement
Industrial storage tanks
Pump stations
Liquid-level automation systems
| Specification | Details |
|---|---|
| Product Code | E30401 |
| Product Type | Splitter Box |
| Product Designation | Junction Box with Ventilation |
| Application | PS3, PS4 submersible pressure transmitters |
| Function | Electrical junction and ventilation |
| Protection Rating | IP67 |
| Housing Material | Plastics |
| Weight | 275.2 g |
| Pack Quantity | 1 pc. |
| Ventilation | Integrated |
| Application Type | Mounting accessory for submersible pressure transmitters |
