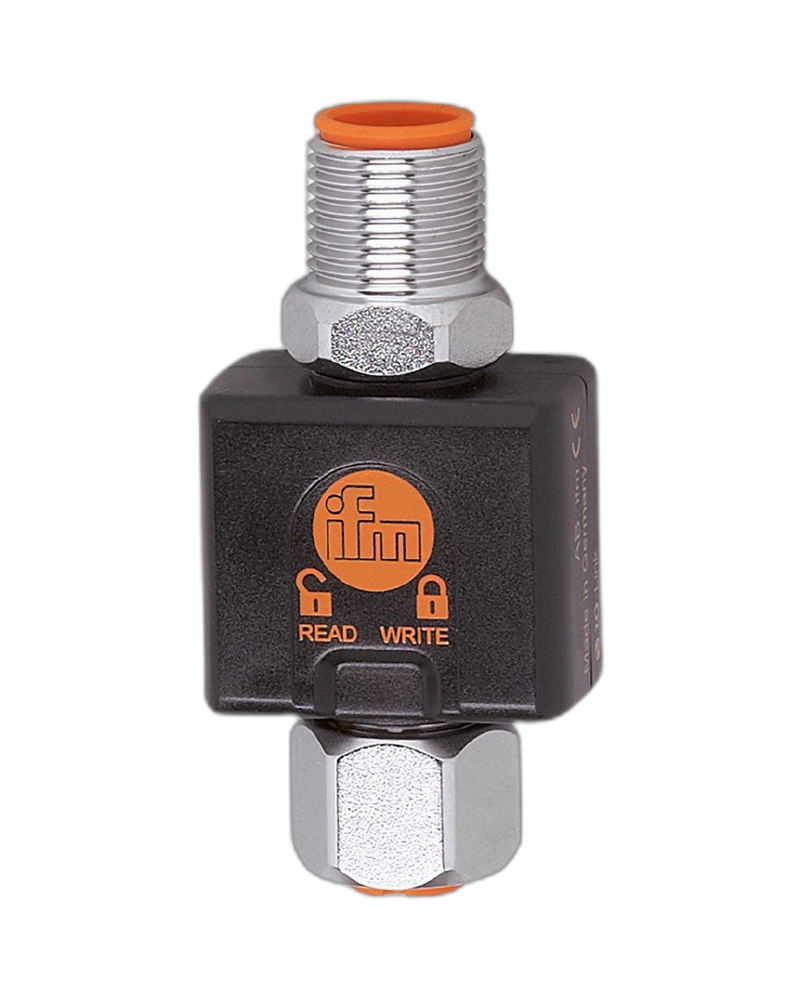

IFM E30398 is an IO-Link memory plug designed to store and transfer parameter settings for compatible IO-Link sensors. It simplifies sensor replacement and commissioning by allowing parameter data to be automatically copied between compatible devices. The memory plug can store a parameter set and communicate with the connected IO-Link sensor. It supports IO-Link Revision 1.1 and COM2 communication at 38.4 kBaud. The unit operates from 18–32 V DC and provides up to 2 Kbytes of storage capacity. Its compact M12 connection and IP65/IP67 protection make it suitable for industrial automation environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The main function of E30398 is to save sensor parameter settings and transfer them when required. When used with a compatible IO-Link device, it can read the parameter set and store it in its internal memory. The stored parameters can then be transferred to another compatible sensor. This helps reduce manual reconfiguration during sensor replacement. It can therefore simplify maintenance operations and help reduce configuration errors during machine servicing.
The memory plug operates as an IO-Link accessory and supports IO-Link Revision 1.1. It supports COM2 communication at 38.4 kBaud and uses an M12 connection for integration with compatible sensor systems. The unit is designed for parameter data rather than conventional analogue measurement. It can be used with suitable IO-Link sensors and IO-Link master or parameterisation systems. The device therefore provides a practical method for managing sensor configuration data within automated systems.
The E30398 is designed for industrial environments and provides IP65/IP67 protection. It uses PA PACM 12 and PET materials, with a TPU moulded body and stainless-steel locking arrangement. The unit operates within an ambient temperature range of -25 to 60°C and a storage temperature range of -40 to 85°C. Two green LEDs provide operating indication. These features support convenient installation and status monitoring in industrial automation applications.
IO-Link parameter memory
Up to 2 Kbytes storage capacity
Supports IO-Link Revision 1.1
COM2 communication at 38.4 kBaud
18–32 V DC operating voltage
M12 x 1 connection
IP65/IP67 protection
Automatic parameter transfer capability
Helps reduce sensor replacement time
Reduces manual parameter configuration
Supports industrial sensor maintenance
IO-Link sensor parameter backup
Sensor replacement applications
Industrial automation systems
Machine commissioning
Production line maintenance
PLC and IO-Link sensor systems
Parameterisation of compatible sensors
Factory automation equipment
| Specification | Details |
|---|---|
| Product Code | E30398 |
| Product Type | IO-Link Memory Plug |
| Function | Parameter memory for IO-Link sensors |
| IO-Link Revision | 1.1 |
| Transmission Type | COM2, 38.4 kBaud |
| Operating Voltage | 18–32 V DC |
| Current Consumption | <35 mA |
| Storage Capacity | Max. 2 Kbytes |
| Protection Rating | IP65 / IP67 |
| Protection Class | III |
| Connection | M12 x 1 |
| Electrical Design | PNP |
| Output Signal | IO-Link |
| Ambient Temperature | -25 to 60°C |
| Storage Temperature | -40 to 85°C |
| Reverse Polarity Protection | Yes |
| Switching Output Current | 500 mA; briefly 2 A / 50 ms |
| Insulation Resistance | 100 MΩ at 500 V DC |
| Materials | PA PACM 12, PET |
| Sealing Material | FKM |
| LED | 2 × green operation LEDs |
