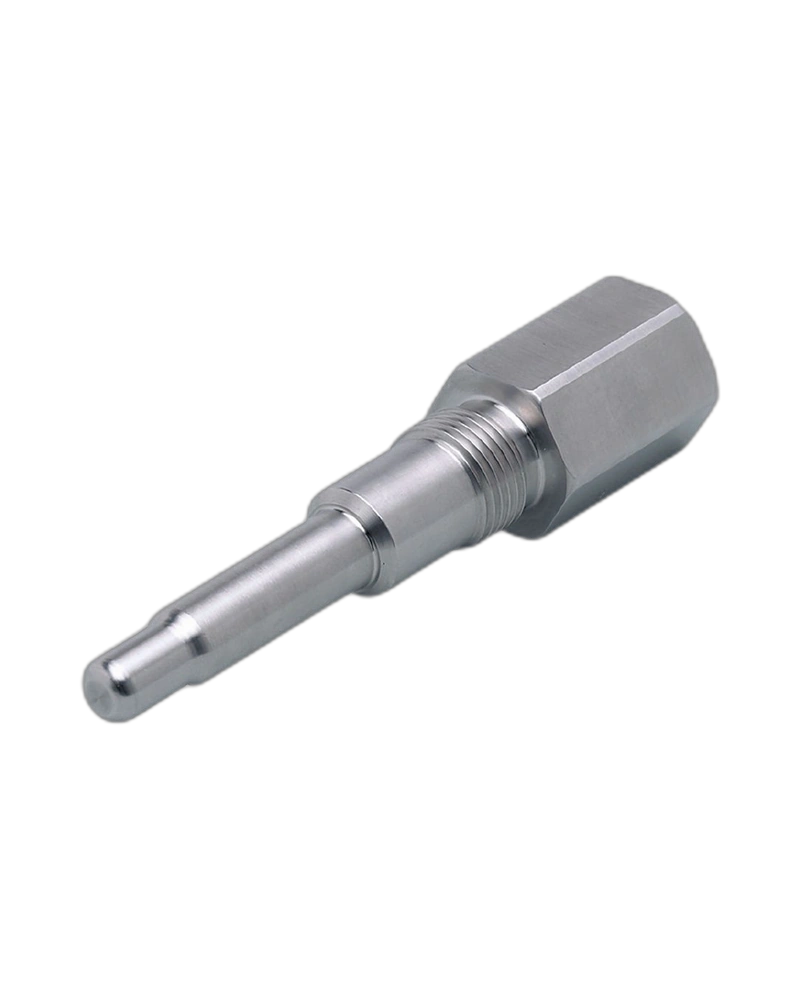

IFM E30393 is a stainless-steel thermowell designed to protect temperature sensors used in demanding industrial processes. It is suitable for TA34xx, TAA431 and TAD191 temperature sensors and provides protection against aggressive media and high process pressure. The G 1/2 process connection and compact 53 mm probe length support reliable installation. Its 316L stainless-steel construction provides durability and excellent resistance in industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30393 provides mechanical protection for the installed temperature sensor and helps reduce direct exposure to process pressure and aggressive media. It is manufactured from stainless steel 1.4404/316L, a material widely used in industrial and hygienic process environments. The robust construction supports reliable operation where sensors may be exposed to pressure, vibration or process contamination. Its compact 53 mm probe length is suitable for applications where limited installation depth is available. The sealing-cone sensor connection provides a secure interface between the thermowell and compatible temperature sensor.
This thermowell is designed for high-pressure process applications with a specified pressure rating of 300 bar. By separating the temperature sensor from direct process contact, it helps make sensor maintenance and replacement easier. The stainless-steel construction provides resistance against many industrial process environments. The G 1/2 process connection allows straightforward integration into compatible process piping and equipment. The design is particularly useful when temperature sensing must continue reliably while protecting the sensing element from harsh process conditions.
E30393 is designed for compatible TA-series temperature sensors and can be integrated into suitable process connections using its G 1/2 configuration. The sensor connection uses a G 1/2 sealing cone with an 8.2 mm diameter. Proper tightening and compatible sealing arrangements should be used during installation. Once installed, the thermowell allows the temperature sensor to be removed or replaced without directly exposing the sensing element to the process. This makes it useful for installations where maintenance accessibility and sensor protection are important.
Suitable for TA34xx, TAA431 and TAD191 temperature sensors
Protective thermowell design for demanding process environments
High pressure rating up to 300 bar
Manufactured from stainless steel 316L / 1.4404
53 mm probe length for compact installation
G 1/2 process connection
G 1/2 sealing-cone sensor connection
Helps protect temperature sensors from aggressive media
Supports easier sensor replacement and maintenance
Suitable for industrial and hygienic process applications
Temperature monitoring in industrial process equipment
Process temperature measurement in piping systems
Food and beverage processing equipment
Hygienic process installations
Chemical and liquid processing systems
High-pressure temperature measurement applications
Machine and plant temperature monitoring
Industrial automation temperature sensing systems
| Specification | Details |
|---|---|
| Product Code | E30393 |
| Product Type | Thermowell for temperature sensors |
| Product Designation | Protective Tube for TA |
| Application | TA34xx, TAA431, TAD191 |
| Pressure Rating | 300 bar / 30 MPa |
| Probe Length | 53 mm |
| Sensor Connection | G 1/2 sealing cone Ø 8.2 mm |
| Process Connection | G 1/2 |
| Material | Stainless steel 1.4404 / 316L |
| Surface Characteristics | Ra < 0.6 µm |
| Tightening Torque | 30–50 Nm |
| Weight | Approx. 173 g |
| Pack Quantity | 1 pc. |
