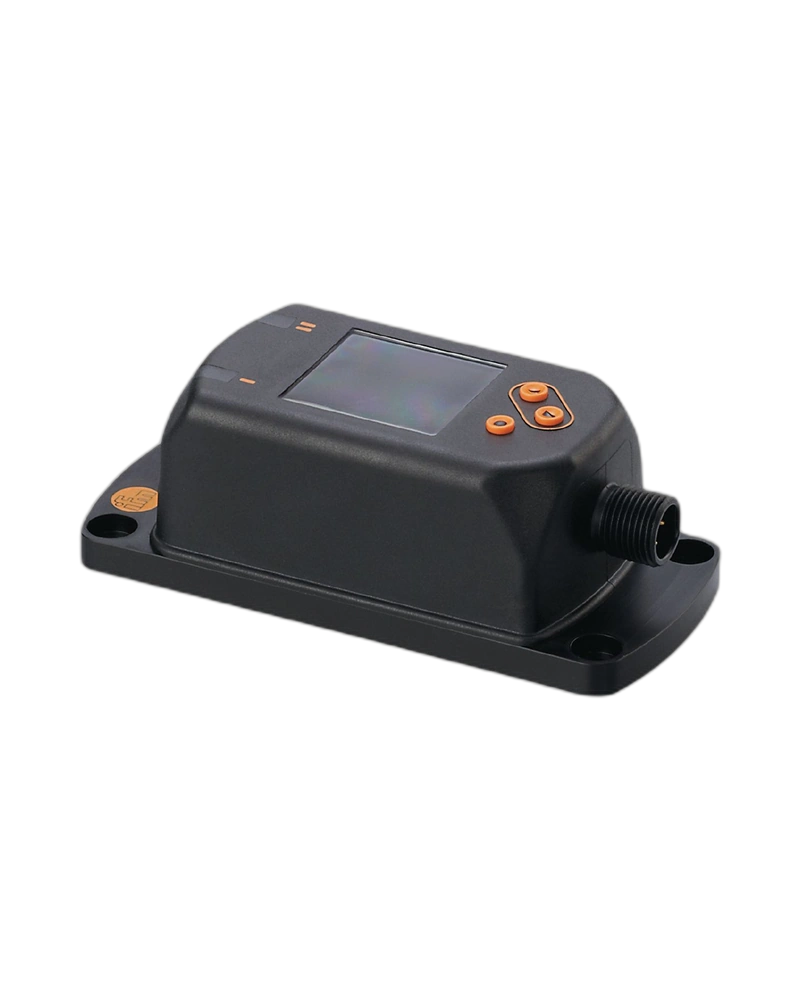

The IFM E30391 is a compact IO-Link display designed to provide clear visualization of process values directly at the machine or installation point. It features a 1.44-inch colour TFT display with 128 × 128 pixel resolution and LED illumination. The display can visualize process information from compatible IO-Link devices and supports flexible display configurations. Its robust IP65/IP67-rated housing makes it suitable for demanding industrial environments.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30391 provides operators with direct access to important process information at the installation location. It can display values transmitted through an IO-Link master without requiring a separate large HMI panel. The colour display helps make process information easier to recognize during machine operation. This makes the unit useful for local monitoring of sensors and automation equipment.
The display supports configurable process values, descriptive text and information pages. Display settings can be adapted according to the requirements of the application. Rotation, brightness and colour schemes can be configured through the device parameters. This allows the display to be adapted for different mounting positions and operator requirements.
The E30391 communicates as an IO-Link device and is designed for integration with compatible IO-Link masters. It uses IO-Link communication for receiving and displaying process information. The device supports COM2 communication at 38.4 kbaud and IO-Link revision 1.1. This enables convenient integration into modern industrial automation networks.
The display has compact dimensions of approximately 86 × 45 × 39.5 mm. Its housing combines stainless steel and engineered polymer materials for a durable industrial construction. With IP65/IP67 protection, it is suitable for applications where protection against dust and water exposure is required. The operating temperature range supports a wide range of industrial installation environments.
The E30391 uses a 1.44-inch colour display with 128 × 128 pixels and LED illumination. Colour and flashing functions can be used to provide visual differentiation of process conditions and information. This can help operators identify important status information more quickly. The display is particularly useful where local visual feedback is required without installing a full-size operator panel.
1.44-inch colour TFT display
128 × 128 pixel resolution
LED display illumination
IO-Link communication
IO-Link revision 1.1 support
COM2 communication at 38.4 kbaud
Flexible process value visualization
Configurable text and information pages
Adjustable display rotation
Adjustable display brightness
Configurable colour scheme
IP65/IP67 protection
Compact 86 × 45 × 39.5 mm housing
Stainless-steel and engineered polymer construction
Reverse polarity protection
Suitable for local machine-level visualization
Local visualization of process values
Industrial automation systems
IO-Link sensor monitoring
Machine status indication
Process monitoring equipment
Factory automation
Production machinery
Packaging machinery
Food and beverage processing equipment
HMI and operator information systems
Sensor parameter and status visualization
| Specification | Details |
|---|---|
| Product Code | E30391 |
| Product Type | IO-Link Display |
| Product Designation | IO-Link DISPLAY 1.44" |
| Display Type | Colour TFT display |
| Display Size | 1.44 inch |
| Display Resolution | 128 × 128 pixels |
| Display Illumination | LED |
| Display Function | Process value and information visualization |
| Communication Interface | IO-Link |
| IO-Link Device Type | IO-Link Display |
| IO-Link Revision | 1.1 |
| Transmission Type | COM2 |
| Communication Speed | 38.4 kbaud |
| SDCI Standard | IEC 61131-9 |
| Operating Voltage | 18–30 V DC |
| Current Consumption | <47 mA |
| Electrical Connection | 1 × M12 connector |
| Connector Contacts | Gold-plated |
| Connection Type | M12 |
| Protection Rating | IP65 / IP67 |
| Protection Class | III |
| Reverse Polarity Protection | Yes |
| Ambient Operating Temperature | -10 to 60°C |
| Storage Temperature | -20 to 80°C |
| Shock Resistance | 20 g / 11 ms |
| Vibration Resistance | 20 g / 10–50 Hz |
| EMC | DIN EN 61000-6-2 |
| EMC Emission | DIN EN 61000-6-4 |
| Housing Shape | Rectangular |
| Dimensions | 86 × 45 × 39.5 mm |
| Width | 45 mm |
| Height | 86 mm |
| Depth | 39.5 mm |
| Approx. Weight | 174 g |
| Housing Material | Stainless steel / PC / PBT-GF30 / PPS / FKM / PA 6.6-GF30 |
| Stainless Steel Grade | 316L / 1.4404 |
| Display Configuration | Configurable |
| Display Rotation | 0°, 90°, 180°, 270° |
| Brightness Adjustment | 0%, 25%, 50%, 75%, 100% |
| Colour Configuration | Configurable |
| Text Display | Supported |
| Information Pages | Supported |
| Process Value Display | Supported |
| Visual Status Indication | Supported |
| LED Indicators | 2 × yellow LED |
| Installation | Machine / panel / industrial equipment |
| Communication Method | IO-Link |
| Local Visualization | Yes |
| PLC Integration | Supported through IO-Link master |
| Application Environment | Industrial automation |
| Pack Quantity | 1 piece |
| Brand | IFM |
