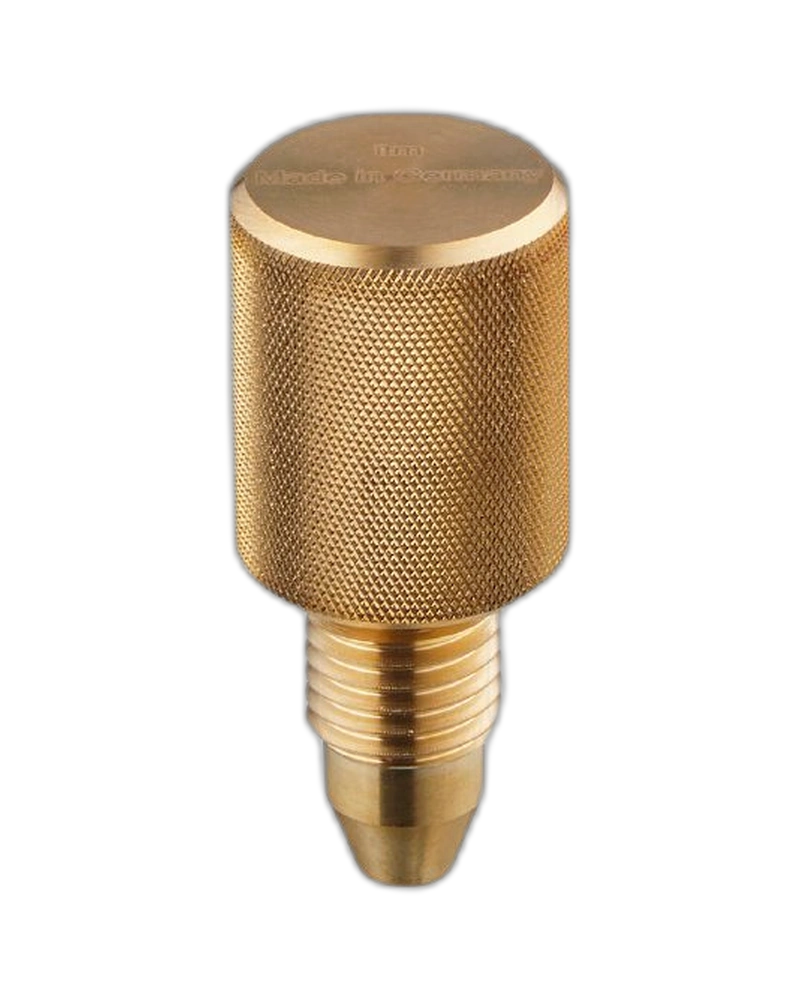

The IFM E30156 is a welding mandrel designed to support the installation of compatible M12 process connection adapters. It features an M12 × 1.5 sealing-cone interface and is manufactured from brass 2.0401. The mandrel provides a practical installation aid during welding operations. Its dedicated geometry helps protect and maintain the required connection form during adapter installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30156 is intended as an installation tool rather than a process adapter. It assists during the welding of compatible process connection components. The mandrel provides a controlled interface that helps maintain the required internal geometry. This supports more consistent welding results when used correctly.
The mandrel incorporates an M12 × 1.5 sealing-cone configuration. This allows it to correspond with compatible M12 process connection components. The defined geometry supports accurate positioning during welding. It should be selected only for compatible adapter and sensor connection systems.
The E30156 is manufactured from brass material grade 2.0401. Brass provides a suitable combination of mechanical strength and machinability for an installation mandrel. The material is intended for the tool's installation function rather than direct process-media contact. Proper handling helps maintain the dimensional accuracy of the tool.
Using the appropriate welding mandrel helps maintain the correct form of the adapter during welding. This can contribute to consistent connection quality and easier installation. The tool is compact and designed specifically for M12 process connections. It is supplied as one piece for installation use.
M12 welding mandrel
M12 × 1.5 sealing-cone geometry
Brass 2.0401 construction
Designed for process connection welding
Supports accurate adapter positioning
Reusable installation accessory
Compact tool design
Suitable for compatible IFM welding adapters
Process connection welding
M12 adapter installation
Sensor adapter fabrication
Hygienic process connection assembly
Industrial process equipment installation
Welding preparation and maintenance
| Specification | Details |
|---|---|
| Product Code | E30156 |
| Product Type | Welding Mandrel |
| Product Designation | ADAPT M12-WELD MANDREL |
| Tool Function | Welding installation aid |
| Connection Geometry | M12 × 1.5 |
| Interface Type | Sealing cone |
| Material | Brass |
| Material Grade | 2.0401 |
| Primary Application | Process connection welding |
| Installation Type | Mandrel / welding aid |
| Process Contact | Installation tool; application dependent |
| Compatible System | M12 process connections |
| Construction | Machined metal tool |
| Pack Quantity | 1 piece |
| Approx. Weight | 129 g |
| Brand | IFM |
