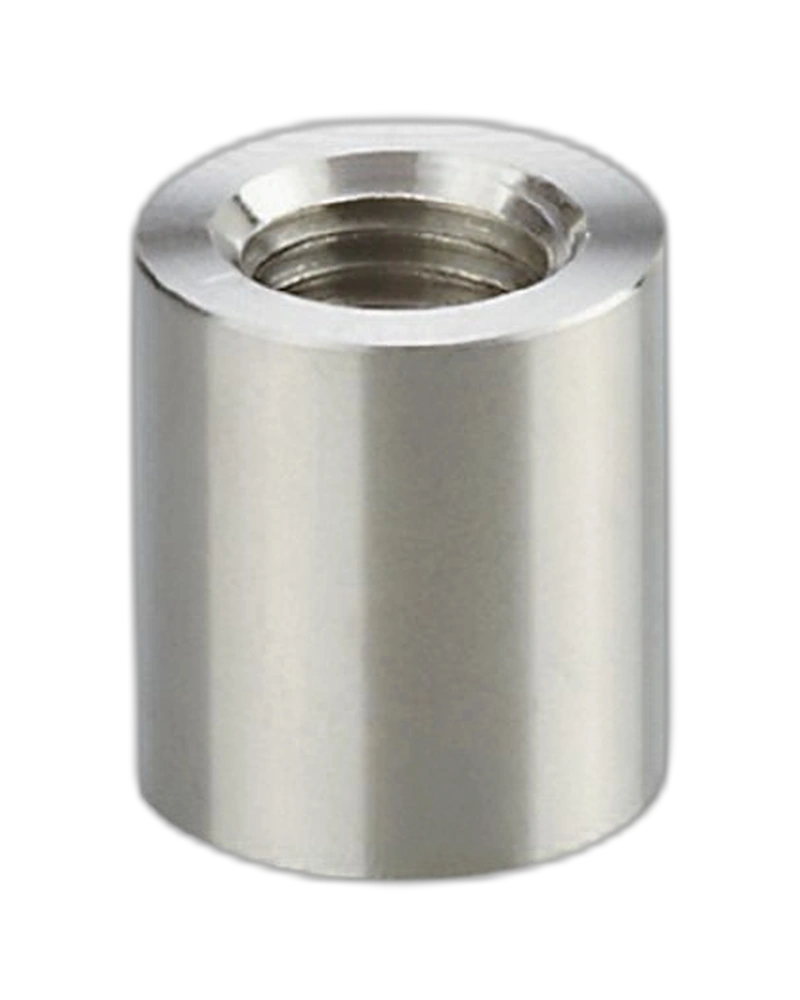

The IFM E30151 is a compact welding adapter designed for mounting compatible process sensors in industrial and hygienic applications. It provides an M12 × 1.5 sealing-cone sensor connection and a 19 mm welding adapter. The adapter is manufactured from 1.4404 / 316L stainless steel for robust process installation. With a 50 bar pressure rating, it provides a reliable connection for suitable process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30151 provides an M12 × 1.5 sealing-cone connection for compatible process sensors. Its compact configuration makes it suitable for installations where available space is limited. The defined sealing cone supports secure sensor mounting when correctly installed. This makes the adapter suitable for process instrumentation requiring a compact welded connection.
The process side uses a 19 mm diameter welding adapter. This allows the component to be integrated into compatible process equipment through welding. The compact diameter is suitable for smaller process connection points. Proper welding and installation procedures should be followed to maintain mechanical and sealing integrity.
The wetted components are manufactured from 1.4404 / 316L stainless steel. This provides good mechanical durability for industrial and hygienic process environments. Stainless steel construction also supports applications where cleanable process connections are required. The material should always be checked for compatibility with the process medium.
The E30151 has a pressure rating of 50 bar and is suitable for medium temperatures below 250°C according to the product data. A tightening torque range of 5–20 Nm is specified for the sensor connection. These characteristics make it suitable for a broad range of process measurement installations.
M12 × 1.5 sealing-cone connection
19 mm welding adapter
50 bar pressure rating
316L stainless-steel construction
Medium temperature below 250°C
5–20 Nm tightening torque
Compact installation design
Suitable for industrial and hygienic applications
Process sensor mounting
Temperature measurement systems
Pressure measurement equipment
Hygienic process machinery
Industrial process equipment
Small-diameter process connections
| Specification | Details |
|---|---|
| Product Code | E30151 |
| Product Type | Welding Adapter |
| Product Designation | ADAPT M12-WELDING ACCESSORY |
| Sensor Connection | M12 × 1.5 |
| Sensor Interface | Sealing cone |
| Process Connection | Welding adapter Ø19 mm |
| Pressure Rating | 50 bar |
| Maximum Pressure | 5 MPa |
| Medium Temperature | <250°C |
| Housing / Wetted Material | Stainless steel |
| Material Grade | 1.4404 / 316L |
| Tightening Torque | 5–20 Nm |
| Installation Type | Weld-in |
| Application Area | Industrial and hygienic |
| Process Compatibility | Application dependent |
| PED Classification | Application dependent |
| Pack Quantity | 1 piece |
| Weight | Approx. 33.05 g |
| Brand | IFM |
