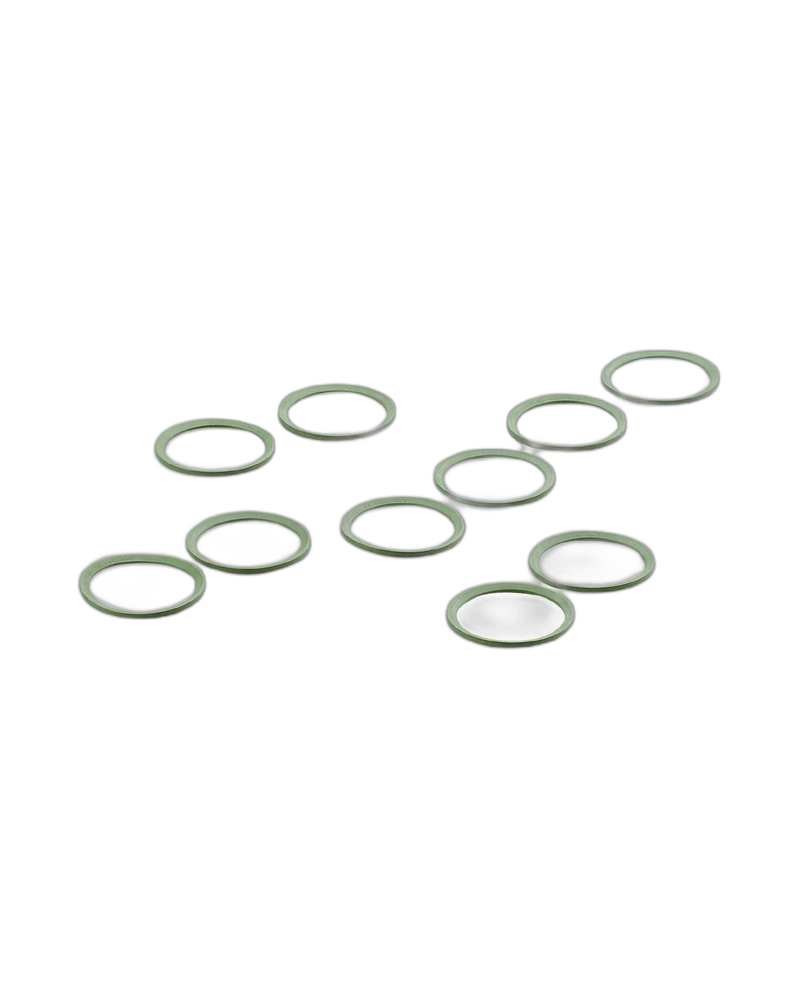

The IFM E30146 is an FKM profile sealing ring designed for G1 process connections. It conforms to DIN 3869-33 and is intended for use with compatible process sensors. The FKM construction provides a durable sealing solution for suitable industrial applications. It is supplied in a 10-piece pack for maintenance and replacement requirements.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30146 uses a formed gasket design specified according to DIN 3869-33. This profile is designed to fit the corresponding G1 connection interface. Correct seating helps establish the required seal. The gasket is suitable for compatible sensor installation arrangements.
The gasket uses FKM as its sealing material. This elastomer provides a robust solution for suitable process applications. FKM is commonly selected where good resistance to temperature and process media is required. Compatibility should be checked against the actual medium.
The E30146 is intended for units with G1 external process connections. Its dedicated profile geometry supports installation into the appropriate sealing interface. It provides a practical replacement component for compatible process instrumentation. Proper installation is essential for leakage prevention.
The 10-piece pack makes the E30146 useful for regular maintenance activities. Spare seals can be stored for sensor replacement and servicing. Replacing damaged or worn sealing elements helps maintain connection integrity. The gasket should be installed according to the equipment manufacturer's instructions.
FKM sealing material
G1 process connection
DIN 3869-33 standard
Profile gasket design
Suitable for process sensors
Replacement sealing component
Compact construction
10-piece pack
Process sensor installation
Pressure measurement systems
Industrial piping
Tanks and containers
Process instrumentation
Maintenance and servicing
| Specification | Details |
|---|---|
| Product Code | E30146 |
| Product Type | Profile Gasket |
| Designation | SEAL RING DIN3869 G1 FPM |
| Seal Type | Formed/profile seal |
| Standard | DIN 3869-33 |
| Compatible Connection | G1 external thread |
| Material | FKM / FPM |
| Connection Application | Process sensor |
| Sealing Function | Process connection sealing |
| Installation | Sealing groove/interface |
| Primary Purpose | Leakage prevention |
| Service Type | Replacement component |
| Weight | 12 g |
| Pack Quantity | 10 pieces |
| Brand | IFM |
| Product Family | Process Connection Accessories |
