The IFM E30145 is an FKM profile sealing ring designed for reliable sealing of G1/4 process connections. It conforms to DIN 3869-14 and is suitable for use with compatible process sensors. The sealing element supports applications involving tanks, containers and pipes. It is designed for medium temperatures from -30°C to +200°C.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30145 uses a formed/profile sealing design rather than a conventional round O-ring. Its geometry is designed to fit the specified DIN 3869 interface. This helps create a reliable seal when correctly installed. The profile design is suitable for compatible process sensor connections.
The sealing ring is manufactured from FKM, providing a durable elastomer sealing material for suitable process applications. FKM can withstand the specified medium-temperature range of -30°C to +200°C. Application-specific chemical compatibility should always be checked.
The seal is intended for units with G1/4 external process connections. Its defined dimensions provide a dedicated sealing interface for compatible equipment. Proper seating of the ring is important for leakage prevention. The seal should be replaced if damaged during maintenance.

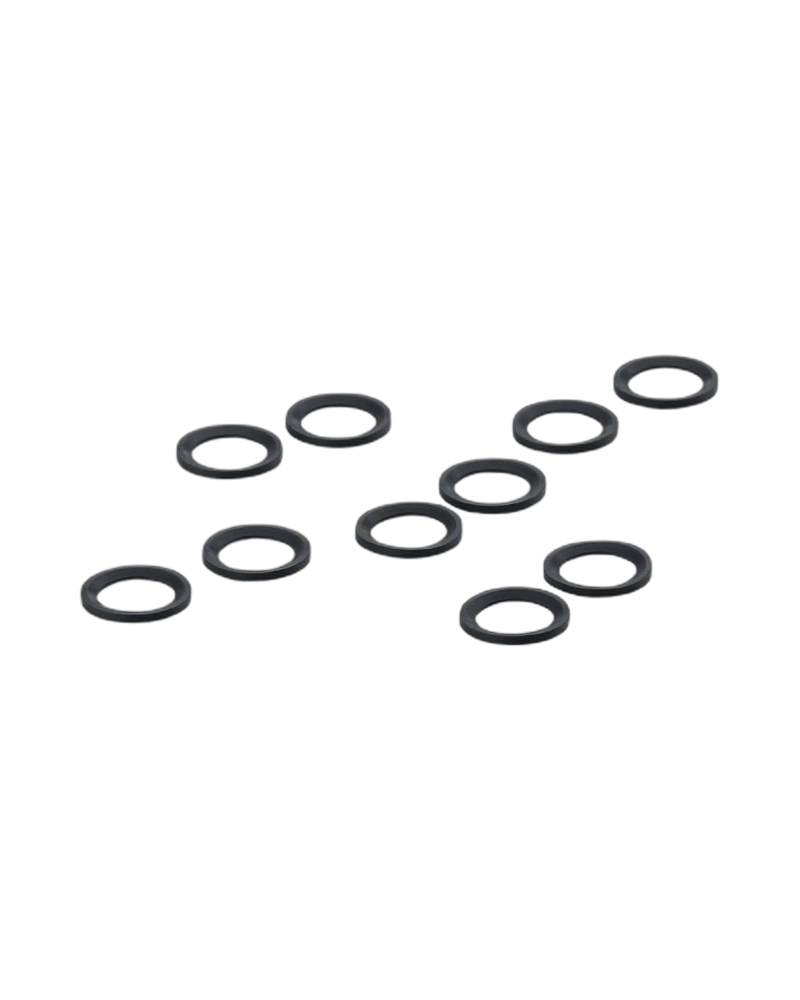

The compact sealing ring is suitable as a replacement component during sensor servicing. Keeping spare seals available can reduce maintenance downtime. The product is supplied in a 10-piece pack. This makes it convenient for repeated service requirements.
FKM sealing material
G1/4 compatibility
DIN 3869-14 design
-30°C to +200°C medium temperature
Profile sealing geometry
Suitable for process sensors
Leakage prevention
10-piece pack
Process sensor connections
Pressure sensor installation
Industrial pipelines
Tanks and containers
Hydraulic/process equipment
Maintenance applications
| Specification | Details |
|---|---|
| Product Code | E30145 |
| Product Type | Profile Gasket |
| Designation | SEAL RING DIN3869 G1/4 FPM |
| Seal Type | Formed/profile seal |
| Standard | DIN 3869-14 |
| Compatible Connection | G1/4 external thread |
| Material | FKM / FPM |
| Inner Diameter | 11.6 mm |
| Outer Diameter | 16.5 mm |
| Medium Temperature | -30°C to +200°C |
| Installation | Sealing interface |
| Primary Function | Leakage prevention |
| Application | Process sensor connection |
| Weight | Approx. 4 g |
| Pack Quantity | 10 pieces |
| Brand | IFM |
