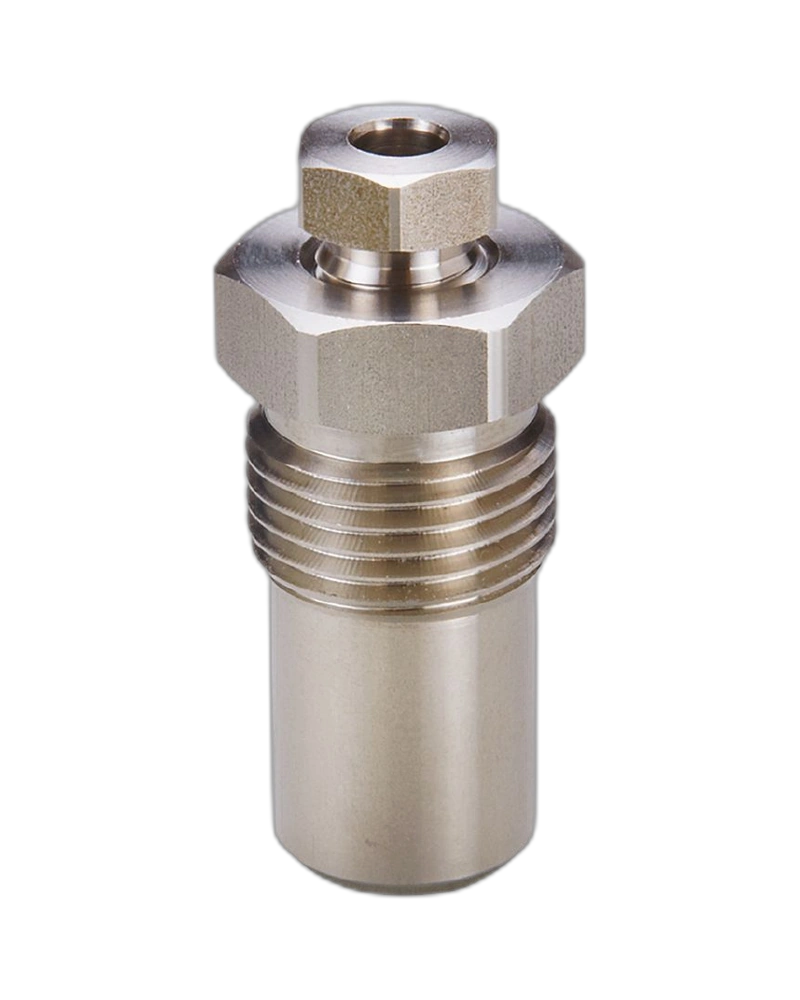

The IFM E30144 is a clamp fitting designed for process sensors with a 6 mm sensor connection and G1/2 sealing-cone process connection. It is manufactured from 316L stainless steel and incorporates a PEEK clamping ring. The fitting has a pressure rating of 10 bar and is suitable for hygienic applications. It is tested according to EHEDG requirements and meets relevant FDA and EC1935/2004 requirements.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30144 uses a compression-style clamping arrangement to secure compatible 6 mm process sensors. The clamping ring provides the mechanical grip required for sensor positioning. This design allows practical sensor installation and adjustment. Proper tightening is required to maintain the intended connection.
The fitting is manufactured from stainless steel 1.4404 / 316L, while the clamping ring is made from PEEK. These materials are suitable for selected hygienic process applications. The product is EHEDG tested and supports applications requiring hygienic design.
The process side uses a G1/2 sealing-cone connection. This provides a defined process interface for compatible installations. The sealing-cone arrangement supports reliable mechanical connection when correctly assembled. It is suitable for compatible temperature and process sensor installations.
The E30144 is designed for applications where hygienic construction and material compliance are important. It has EC1935/2004 approval and is FDA compliant, with EHEDG testing. These characteristics make it suitable for selected food, beverage and pharmaceutical process equipment.
6 mm sensor connection
G1/2 sealing-cone process connection
316L stainless steel
PEEK clamping ring
10 bar pressure rating
EHEDG tested
FDA compliant
EC1935/2004 compliant
Food processing equipment
Beverage processing
Pharmaceutical machinery
Hygienic process systems
Temperature sensor mounting
Industrial process instrumentation
| Specification | Details |
|---|---|
| Product Code | E30144 |
| Product Type | Clamp Fitting |
| Designation | G1/2 COMPRESSION FITTING |
| Sensor Connection | Ø6 mm |
| Process Connection | G1/2 sealing cone |
| Connection Type | Compression / clamp fitting |
| Clamp Ring Material | PEEK |
| Housing Material | Stainless steel |
| Material Grade | 1.4404 / 316L |
| Pressure Rating | 10 bar |
| Maximum Pressure | 1 MPa |
| Ambient Temperature | -10°C to +150°C |
| Tightening Torque | <10 Nm |
| Hygienic Approval | EHEDG tested |
| Food Contact Compliance | EC1935/2004 |
| FDA Compliance | Yes |
| Compatible Sensor Type | Suitable process sensors / temperature sensors |
| Weight | 102.8 g |
| Pack Quantity | 1 piece |
| Brand | IFM |
