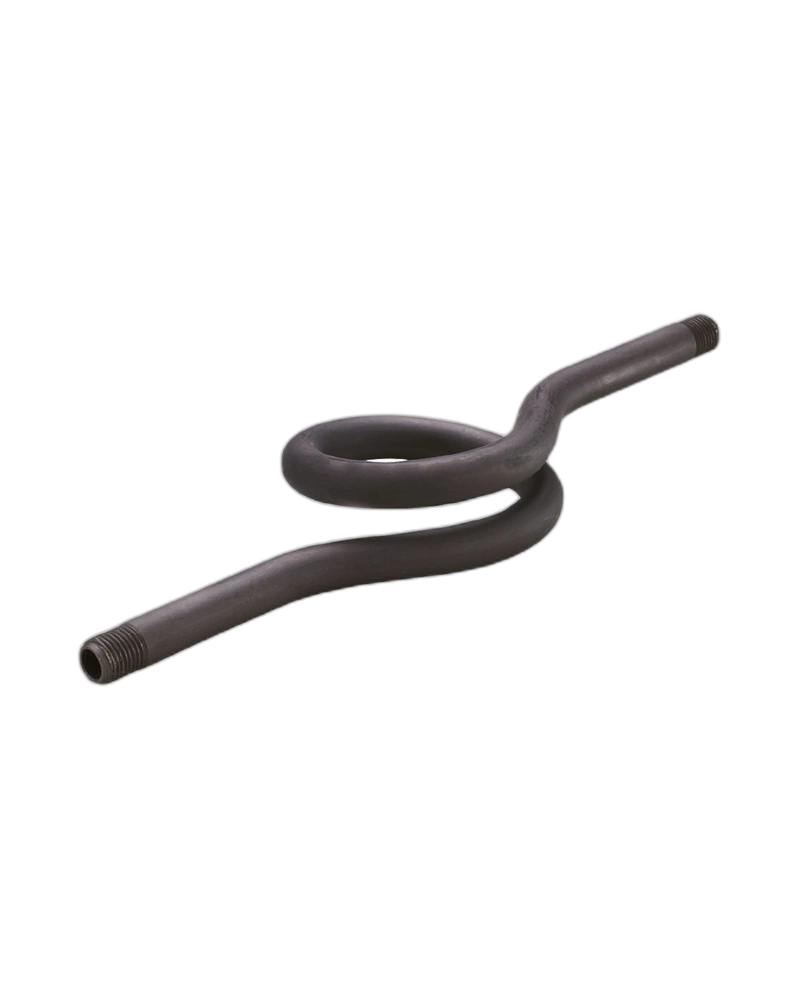

The IFM E30141 Siphon is a G1/2 process accessory designed to protect pressure sensors against pressure peaks and excessive process heat. It is suitable for industrial applications involving liquids and gases. The robust steel construction provides a durable process connection. Two PTFE seals are supplied with the product for installation.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The siphon creates a protective section between the process line and pressure sensor. This arrangement helps reduce the direct effect of pressure fluctuations on the sensor. It is useful for industrial systems where pressure peaks may occur. Correct installation is important for maintaining reliable sensor protection.
The E30141 helps reduce the thermal load transferred from the process medium to the connected pressure sensor. This makes it useful for suitable higher-temperature process applications. The siphon provides a buffer between the process and sensing element. Actual temperature reduction depends on process conditions and installation.
The product uses G1/2 connections for compatible pressure sensor installations. The threaded arrangement provides a straightforward mechanical connection. It can be integrated into suitable pressure measurement systems. Connection compatibility should be verified before installation.
Two PTFE seals are supplied with the E30141. PTFE provides a suitable sealing material for many compatible process applications. The supplied seals simplify installation and maintenance. Media compatibility should be checked according to the application.
G1/2 sensor connection
G1/2 process connection
Pressure peak protection
Thermal protection
Steel 1.0345 construction
PTFE sealing components supplied
Suitable for liquid and gas media
Industrial process application
Pressure measurement systems
Industrial pipelines
High-temperature process applications
Liquid pressure monitoring
Gas pressure monitoring
Pressure sensor protection
| Specification | Details |
|---|---|
| Product Code | E30141 |
| Product Type | Siphon |
| Designation | SIPHON TUBE G1/2 |
| Application | Industrial applications |
| Suitable Media | Liquids and gases |
| Sensor Connection | G1/2 |
| Process Connection | G1/2 |
| Connection Type | Threaded |
| Housing Material | Steel |
| Material Grade | 1.0345 |
| Sealing Material | PTFE |
| Supplied Seals | 2 pieces |
| Primary Function | Pressure and thermal protection |
| Pressure Protection | Protection against pressure peaks |
| Thermal Function | Reduces heat transfer to sensor |
| PED Consideration | Application dependent |
| Weight | Approx. 750–758 g |
| Pack Quantity | 1 piece |
| Brand | IFM |
