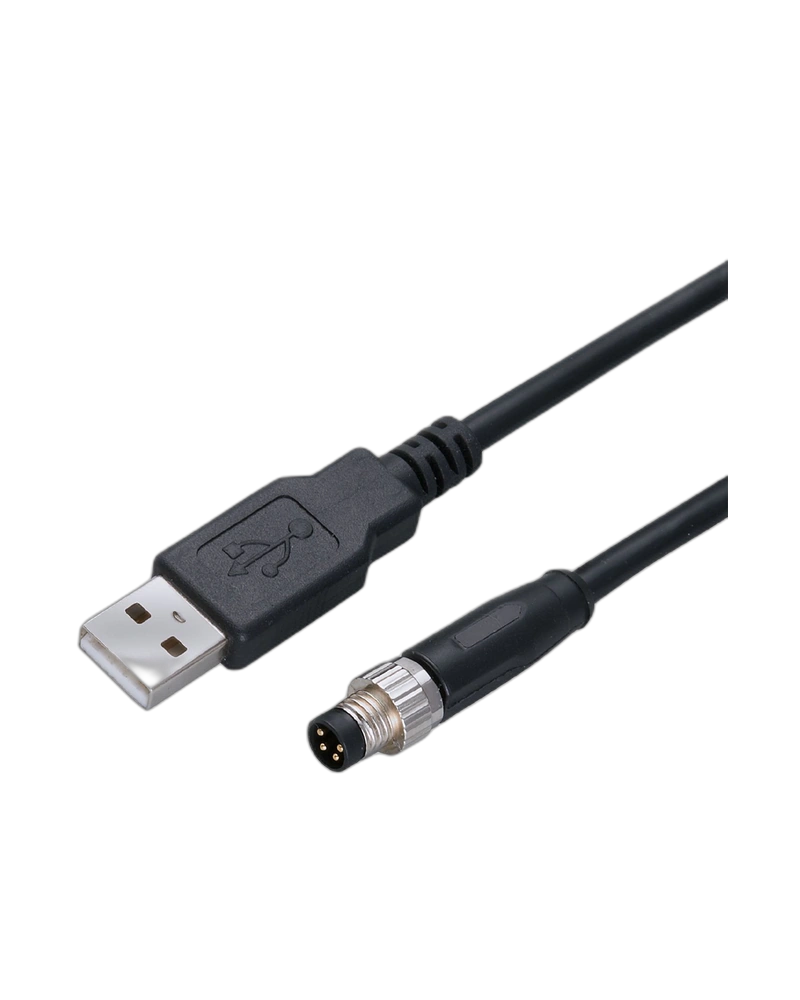

The IFM E30136 USB M8 Cable is designed to connect compatible vibration sensors with an M8 interface to a PC USB interface. It supports convenient parameter setting and sensor setup through a computer. The cable is 5 metres long and uses a straight M8 connector with A coding. Its PVC cable construction and nickel-plated brass coupling nut provide a durable connection solution.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30136 provides a direct connection between a compatible M8 sensor interface and a USB-equipped computer. This allows suitable vibration sensors to communicate with configuration software. The cable provides both power and signal conductors according to the specified wiring. It is designed for convenient sensor commissioning.
The cable supports quick and simple setup of compatible vibration sensors. It can be used when parameters need to be configured through a PC. This makes it useful during initial commissioning and service activities. It reduces the need for separate connection hardware.
The 5 m cable length provides flexibility when the sensor and computer are positioned apart. The 5 mm diameter PVC cable is suitable for practical routing in service and commissioning environments. The straight connectors help simplify connection orientation. The cable is supplied as one complete connection assembly.
The M8 connector uses A coding and a nickel-plated brass coupling nut. The USB connector is also straight and uses a four-contact configuration. The defined wiring arrangement supports reliable signal transmission between the connected interfaces. This makes the cable suitable for compatible sensor setup applications.
USB to M8 connection
5 metre cable length
M8 A-coded connector
Straight connector design
4-pin M8 connection
4-contact USB connection
PVC cable construction
Nickel-plated brass coupling nut
Vibration sensor configuration
Sensor parameter setting
PC-based sensor commissioning
Condition monitoring systems
Vibration monitoring equipment
Industrial sensor servicing
| Specification | Details |
|---|---|
| Product Code | E30136 |
| Product Type | USB Connection Cable |
| Designation | USB M8 CABLE |
| Cable Length | 5 m |
| Cable Diameter | 5 mm |
| Cable Material | PVC |
| Connector 1 | M8 plug |
| M8 Connector Type | Straight |
| M8 Coding | A-coded |
| M8 Contacts | 4 |
| M8 Coupling Nut | Brass, nickel-plated |
| Connector 2 | USB plug |
| USB Connector Type | Straight |
| USB Contacts | 4 |
| Connection Arrangement | USB to M8 |
| Wiring Pin 1 | L+ / red |
| Wiring Pin 2 | USB_M / white |
| Wiring Pin 3 | L- / black |
| Wiring Pin 4 | USB_P / green |
| Weight | 172.4 g |
| Pack Quantity | 1 piece |
| Application | Sensor-PC communication |
| Brand | IFM |
