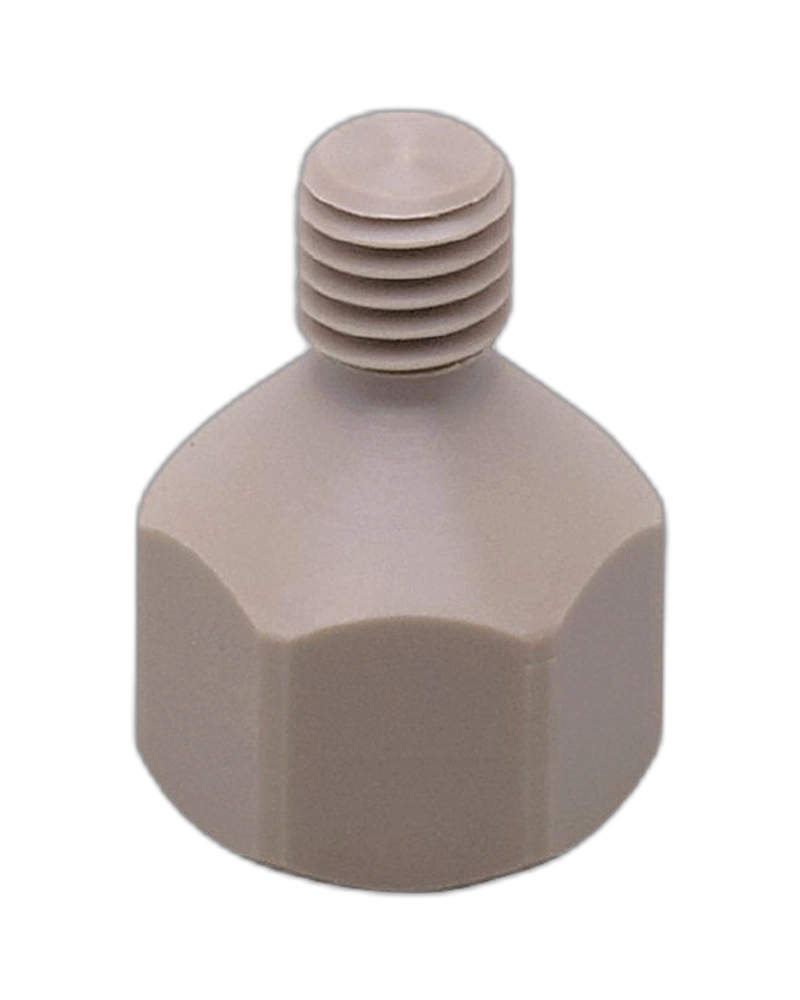

The IFM E30132 is a PEEK screw-in adapter designed for compatible VSA vibration sensors. It provides an M8 × 1.25 internal threaded connection and is manufactured from high-temperature-resistant PEEK. The adapter is suitable for demanding temperature conditions, with an ambient temperature range up to 260°C and short-term exposure up to 300°C. Its lightweight construction weighs approximately 8.2 g.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30132 provides a dedicated mounting interface for compatible VSA vibration sensors. Its threaded connection allows the sensor to be securely installed into a suitable mounting point. The adapter supports reliable mechanical sensor positioning. It is designed specifically for vibration monitoring applications.
The adapter is manufactured from PEEK, a high-performance engineering polymer suitable for elevated-temperature applications. It can operate at ambient temperatures up to 260°C and withstand temperatures up to 300°C briefly. This makes it useful where conventional mounting materials may not be suitable.
With a weight of approximately 8.2 g, the E30132 provides a lightweight mounting solution. Its compact threaded construction makes it suitable for machine locations where mounting space is limited. The adapter provides the required mechanical interface without adding significant mass. This can be beneficial for vibration measurement installations.
The M8 × 1.25 internal thread provides a defined mounting interface for compatible sensors. IFM recommends securing the thread with an industrially compatible adhesive when necessary. This can help prevent unwanted loosening under suitable operating conditions. Installation should follow the applicable sensor and mounting requirements.
PEEK construction
M8 × 1.25 internal thread
Designed for VSA vibration sensors
High-temperature capability
Up to 260°C ambient temperature
Short-term temperature capability up to 300°C
Lightweight construction
Compact screw-in design
Vibration monitoring
Machine condition monitoring
High-temperature machinery
Industrial rotating equipment
VSA vibration sensor mounting
Predictive maintenance systems
| Specification | Details |
|---|---|
| Product Code | E30132 |
| Product Type | Screw-in Adapter for Vibration Sensors |
| Designation | PEEK-ADAPTER |
| Compatible Sensor Family | VSA001, VSA101, VSA201 |
| Sensor Connection | M8 × 1.25 internal thread |
| Process Connection | M8 × 1.25 threaded connection |
| Adapter Material | PEEK |
| Ambient Temperature | -30°C to +260°C |
| Short-Term Temperature | Up to +300°C |
| Installation Method | Screw-in |
| Thread Type | Metric |
| Recommended Thread Securing | Industrially compatible adhesive when required |
| Weight | 8.2 g |
| Pack Quantity | 1 piece |
| Application | Vibration sensor mounting |
| Brand | IFM |
