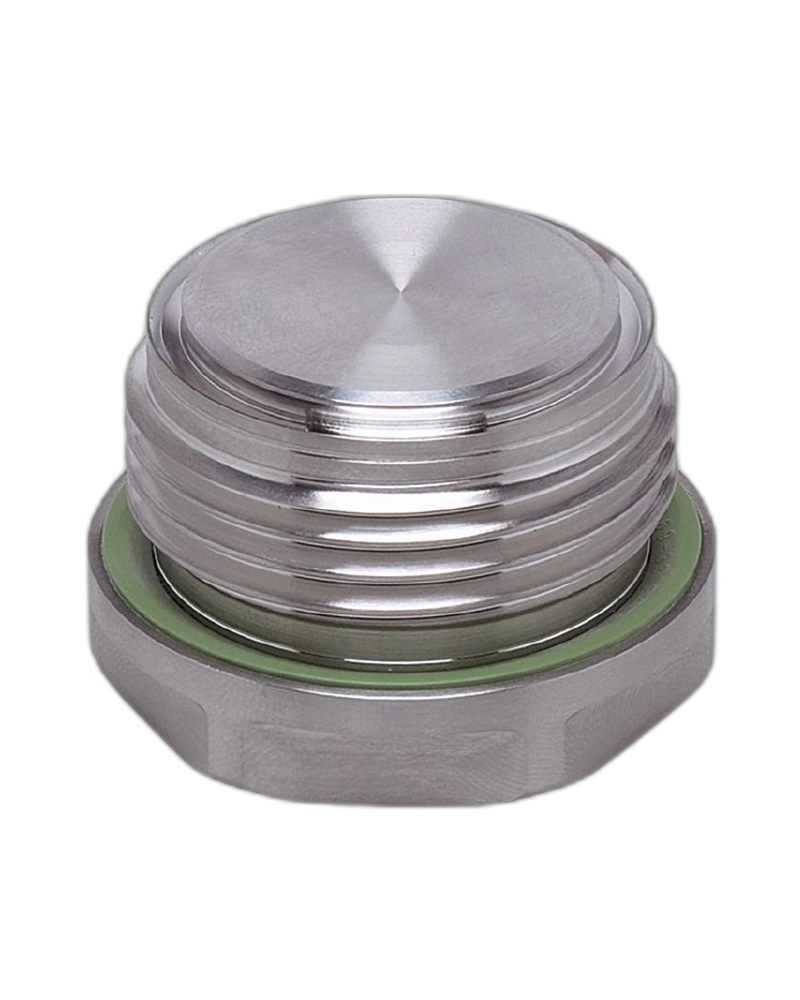

The IFM E30128 Adapter Plug is designed to securely close unused Aseptoflex Vario process connections. It provides protection against contamination, thread damage and mechanical impact during installation or welding work. The robust stainless-steel construction makes it suitable for demanding industrial environments. It is particularly appropriate for hygienic process applications.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30128 provides a dedicated closure for unused Aseptoflex Vario process connections. It helps prevent contaminants from entering an open process connection. The plug also protects the connection interface when the sensor is removed. This makes it useful during equipment installation, maintenance and process modification.
The adapter plug is manufactured from stainless steel 1.4435 / 316L. Its wetted surface has a smooth finish of Ra < 0.4 µm / Rz 4 µm. This construction supports demanding industrial and hygienic applications. The robust material also provides good mechanical durability.
The E30128 is designed with grooves for compatible sealing components. An EPDM O-ring, FKM sealing ring and PEEK sealing ring can be used according to the specified configuration. This provides flexibility when selecting the appropriate sealing material. The supplied and optional sealing components support different process requirements.
The cover plug is particularly suitable for hygienic process applications. Its stainless-steel body and smooth surface support clean process connection arrangements. It can also help protect the connection during welding and installation operations. This makes it useful for food, beverage and other hygienic processing equipment.
Aseptoflex Vario process connection
G1 external thread
316L stainless-steel construction
Smooth surface finish
Pressure rating up to 100 bar
Protection of unused process connections
Multiple sealing options
Suitable for hygienic applications
Hygienic process systems
Food and beverage equipment
Process sensor installations
Unused process connection protection
Process vessel connections
Maintenance and installation work
| Specification | Details |
|---|---|
| Product Code | E30128 |
| Product Type | Cover Plug for Process Connections |
| Designation | ADAPTER PLUG ASEPTOFLEX VARIO |
| Process Connection | G1 external thread |
| Connection System | Aseptoflex Vario |
| Pressure Rating | 100 bar |
| Maximum Pressure | 10 MPa |
| Housing Material | Stainless steel 1.4435 / 316L |
| Surface Roughness | Ra < 0.4 µm |
| Surface Profile | Rz 4 µm |
| Sealing Groove | DIN 3869-33-FKM |
| O-Ring Groove | 24 × 2 mm |
| Supplied O-Ring | EPDM |
| Optional O-Ring | FKM 24 × 2 mm |
| Optional Seal | PEEK sealing ring |
| FKM Seal | E30123 |
| PEEK Seal | E30124 |
| EPDM Seal | E30054 |
| Wetted Material | Stainless steel / selected seal |
| Weight | 203 g |
| Pack Quantity | 1 piece |
| Brand | IFM |
