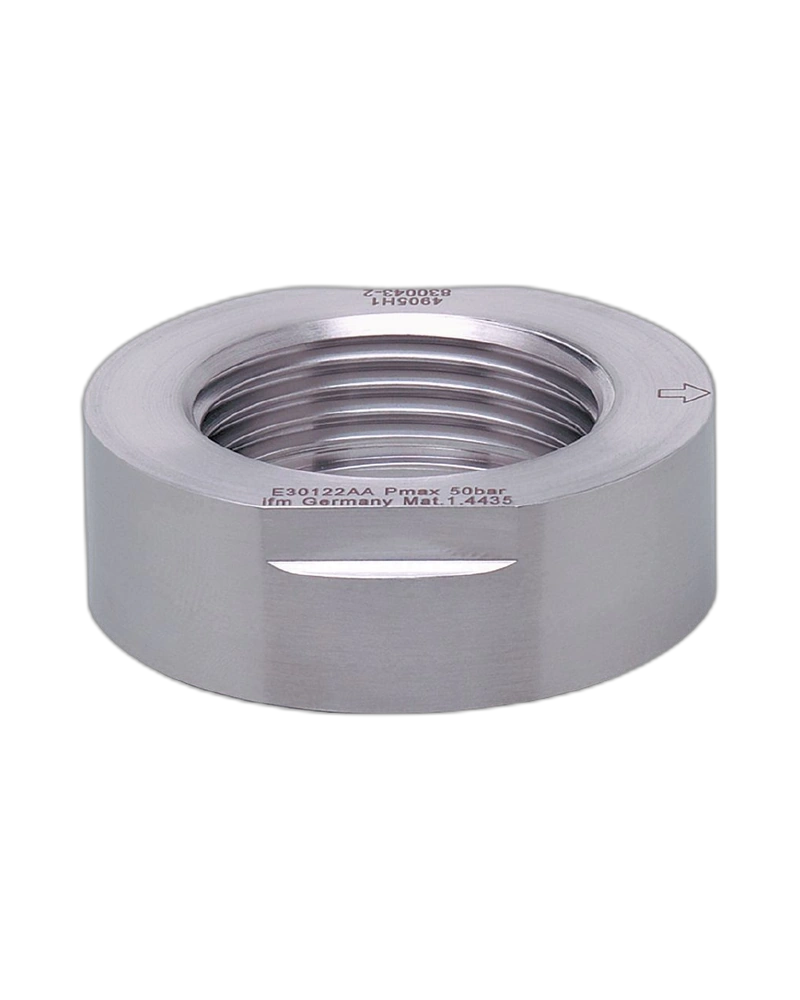

The IFM E30122 is a welding adapter designed for process sensors using an Aseptoflex Vario G1 connection. It features a 50 mm welding adapter and is manufactured from 316L stainless steel. The adapter is designed for industrial and hygienic process installations. It supports a pressure rating of 50 bar for the sensor-to-adapter connection.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30122 provides a suitable welded interface for compatible process sensors in hygienic and industrial systems. Its design supports clean and secure integration into process equipment. The welded construction provides a permanent connection point. This makes it useful for process vessels and piping applications.
The adapter incorporates a G1 internal thread for compatible Aseptoflex Vario sensor connections. This provides a standardized interface for suitable process sensors. The connection design supports secure sensor installation. It is particularly useful for process measurement applications requiring hygienic connection technology.
The wetted parts are manufactured from stainless steel 1.4435 / 316L with a surface characteristic of approximately Ra < 0.4 µm. This smooth surface is beneficial for suitable hygienic process installations. The robust stainless-steel construction supports demanding industrial environments.
The adapter uses an O-ring sealing arrangement and is supplied with an EPDM O-ring. An FKM FDA-compliant O-ring is also specified as an optional accessory. This provides flexibility for selecting an appropriate sealing material. The recommended installation is for wall thicknesses up to 3 mm.
50 mm welding adapter
G1 Aseptoflex Vario connection
316L stainless-steel construction
Suitable for hygienic applications
Surface finish Ra < 0.4 µm
O-ring sealing arrangement
EPDM O-ring supplied
Pressure rating up to 50 bar
Hygienic process equipment
Food and beverage systems
Process vessels
Industrial pipelines
Pressure sensor installations
Pharmaceutical process equipment
| Specification | Details |
|---|---|
| Product Code | E30122 |
| Product Name | Welding Adapter for Process Sensors |
| Designation | WELDING ADAPT D50/G1 |
| Product Category | Process Sensor Accessories |
| Brand | IFM |
| Adapter Type | Welding adapter |
| Sensor Connection | G1 internal thread |
| Connection System | Aseptoflex Vario |
| Welding Diameter | 50 mm |
| Installation Method | Welding |
| Pressure Rating | Up to 50 bar |
| Maximum Pressure | 5 MPa |
| Wetted Material | Stainless steel |
| Material Grade | 1.4435 / 316L |
| Surface Characteristic | Ra < 0.4 µm |
| Sealing Type | O-ring |
| Supplied O-Ring | 24 × 2 mm EPDM |
| Optional O-Ring | 24 × 2 mm FKM |
| O-Ring Compliance | FDA compliant versions available |
| Recommended Wall Thickness | ≤ 3 mm |
| Weight | 191.5 g |
| Pack Quantity | 1 piece |
| Application | Hygienic process installation |
| Product Family | IFM Process Sensor Accessories |
