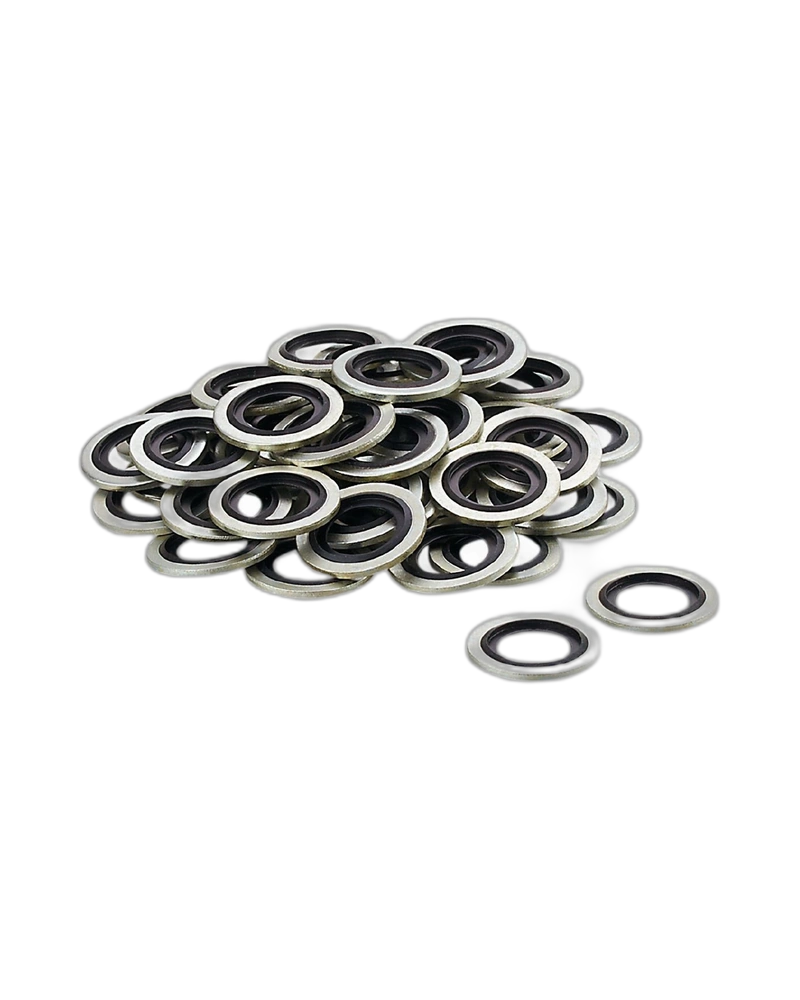

The IFM E30111 U-Seal is a sealing component designed for reliable sealing of suitable process sensor connections. It is intended for applications involving tanks, containers and pipes. The sealing element combines NBR with a steel support structure. Its high pressure and wide temperature range make it suitable for demanding process installations.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30111 helps create a dependable seal between compatible process components. It is designed to reduce the possibility of leakage at the connection point. Proper sealing is essential in pressurized process installations. The U-seal configuration supports effective sealing when correctly installed.
The gasket is specified for pressure applications up to 400 bar. This makes it suitable for high-pressure process equipment when used according to the applicable installation requirements. The pressure capability supports demanding industrial applications. Actual suitability depends on the complete system and operating conditions.
The E30111 is specified for ambient and medium temperatures from -30°C to +100°C. This allows it to be used across a broad range of industrial operating conditions. Temperature compatibility is important when selecting sealing materials. The specified range provides flexibility for suitable process installations.
The sealing assembly uses NBR and steel materials. This provides a combination of sealing performance and mechanical support. The design is intended for use with compatible process sensors and connections. Correct installation and material compatibility should be checked before use.
U-seal design
Pressure rating up to 400 bar
NBR sealing material
Steel construction
Wide operating temperature range
Suitable for tanks and containers
Suitable for pipes and process sensors
Reliable connection sealing
Process sensor sealing
Tanks and containers
Industrial piping
Pressure measurement systems
Process instrumentation
Industrial automation equipment
| Specification | Details |
|---|---|
| Product Code | E30111 |
| Product Name | Gasket / U-Seal |
| Designation | U-SEAL 50 ST |
| Product Category | Sealing Accessories |
| Brand | IFM |
| Seal Type | U-ring / U-seal |
| Application | Process connection sealing |
| Suitable Equipment | Process sensors and connections |
| Inside Diameter | 14.7 mm |
| Outside Diameter | 21 mm |
| Sealing Material | NBR |
| Support Material | Steel |
| Pressure Rating | Up to 400 bar |
| Maximum Pressure | 40 MPa |
| Ambient Temperature | -30°C to +100°C |
| Medium Temperature | -30°C to +100°C |
| Construction | Elastomer seal with steel support |
| Sealing Function | Leakage prevention |
| Installation | Process connection |
| Weight | 125 g |
| Pack Quantity | 1 piece |
| Application Area | Tanks, containers and pipes |
| Product Family | IFM Sealing Components |
