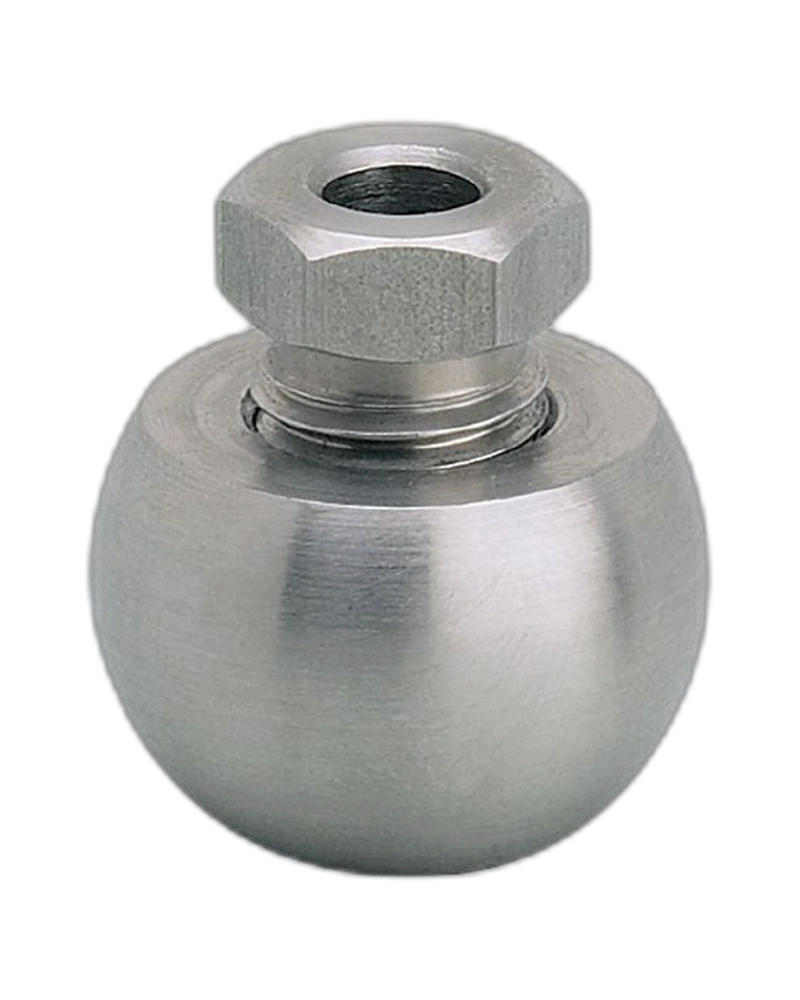

The IFM E30108 is a welding adapter designed for mounting temperature sensors with a 6 mm diameter. It provides a welded process connection with a compact 24.7 mm adapter diameter. The adapter is manufactured from stainless steel 316L for demanding industrial installations. It supports pressure ratings up to 160 bar.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The adapter is specifically designed for compatible temperature sensors with a 6 mm sensor diameter. It provides a dedicated mounting interface for integrating the sensor into process equipment. The arrangement supports stable positioning of the sensing element. This makes it suitable for industrial temperature measurement applications.
The welding-adapter design allows the component to be permanently integrated into suitable process equipment. This creates a strong connection between the process installation and sensor mounting point. The compact 24.7 mm adapter diameter supports space-conscious installation. It is suitable for fixed process measurement points.
The E30108 is made from stainless steel 1.4404 / 316L. This provides mechanical strength and suitability for demanding industrial environments. The stainless-steel construction supports long-term use in appropriate process applications. It also provides a durable mounting surface for the temperature sensor.
The adapter has a pressure rating of 160 bar / 16 MPa. This makes it suitable for compatible pressurized process installations within the specified operating conditions. Correct welding, installation and media compatibility are important for safe operation.
Designed for 6 mm temperature sensors
Welding adapter design
24.7 mm adapter diameter
316L stainless-steel construction
Pressure rating up to 160 bar
Secure permanent mounting
Compact process connection
Single-piece supply
Industrial temperature measurement
Process temperature sensors
Piping systems
Process vessels
Industrial automation
Temperature monitoring equipment
| Specification | Details |
|---|---|
| Product Code | E30108 |
| Product Name | Welding Adapter for Process Sensors |
| Designation | WELDING ADAPTER D6 |
| Product Category | Process Sensor Accessories |
| Brand | IFM |
| Sensor Application | Temperature measurement |
| Compatible Sensor Diameter | 6 mm |
| Adapter Type | Welding adapter |
| Installation Method | Welded process connection |
| Adapter Diameter | 24.7 mm |
| Pressure Rating | Up to 160 bar |
| Maximum Pressure | 16 MPa |
| Housing Material | Stainless steel |
| Material Grade | 1.4404 / 316L |
| Connection Design | Clamp fitting |
| Sensor Mounting | 6 mm sensor insertion |
| Construction | Compact welded body |
| Application Type | Fixed process installation |
| Weight | 63 g |
| Pack Quantity | 1 piece |
| Primary Function | Process sensor mounting |
| Product Family | IFM Temperature Sensor Accessories |
