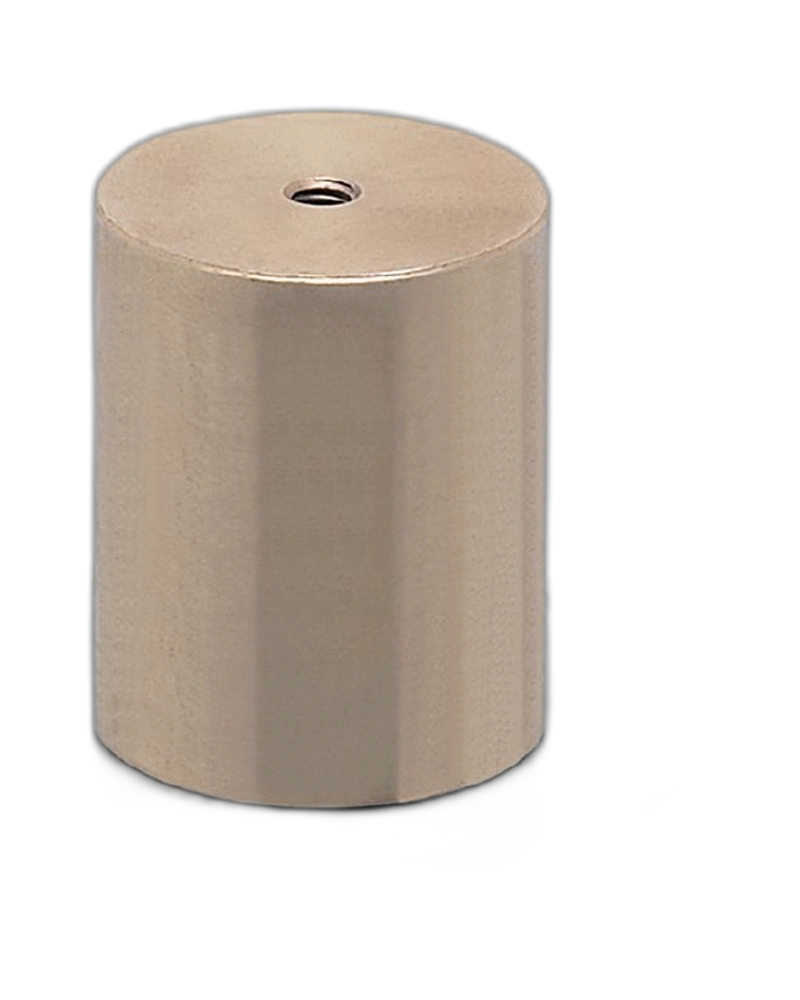

The IFM E30096 Magnetic Mount is designed for mounting compatible efector octavis vibration sensors. It uses a permanent magnetic mounting principle to provide convenient sensor positioning on suitable ferromagnetic surfaces. The strong magnetic holding force supports reliable attachment during vibration monitoring. Its compact design makes it useful for temporary or repeatable sensor mounting.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The magnetic mounting principle allows compatible vibration sensors to be installed without creating a permanent threaded mounting point. This can significantly simplify sensor positioning during machine inspection. It is convenient when measurements need to be taken at different locations. The mounting arrangement can also reduce installation effort.
The E30096 provides a holding force of up to 600 N at 20°C. This gives the mounting arrangement a strong grip on suitable ferromagnetic surfaces. A secure connection helps maintain sensor positioning during vibration measurement. The specified holding force is an important consideration when selecting the mounting location.
The mounting device combines brass with samarium cobalt magnetic material. This construction provides a robust mechanical solution for vibration sensor mounting. The magnetic material provides the required holding capability. The brass body contributes to the overall mechanical structure.
The accessory is specifically designed for use with efector octavis systems. It provides a convenient mechanical interface between the vibration sensor and the machine surface. This makes it useful for condition-monitoring activities. It is especially practical for inspection and measurement points that require flexible mounting.
Magnetic mounting principle
Designed for efector octavis
Holding force up to 600 N
Samarium cobalt magnetic material
Brass construction
Fast sensor installation
No permanent mounting hole required
Suitable for vibration measurement
Machine vibration monitoring
Condition monitoring
Rotating machinery inspection
Motor monitoring
Pump and gearbox monitoring
Temporary vibration measurement points
| Specification | Details |
|---|---|
| Product Code | E30096 |
| Product Name | Magnetic Mount for Vibration Sensors |
| Designation | MAGNETIC MOUNT |
| Product Category | Vibration Sensor Accessories |
| Brand | IFM |
| Intended System | efector octavis |
| Sensor Application | Vibration monitoring |
| Mounting Principle | Permanent magnet |
| Holding Force | Up to 600 N at 20°C |
| Magnetic Material | Samarium cobalt |
| Housing Material | Brass |
| Mounting Surface | Suitable ferromagnetic surface |
| Installation Method | Magnetic attachment |
| Permanent Fixing | Not required |
| Sensor Positioning | Direct machine-surface mounting |
| Primary Function | Temporary / repeatable vibration sensor mounting |
| Application Type | Condition monitoring |
| Construction | Compact magnetic assembly |
| Weight | 342 g |
| Pack Quantity | 1 piece |
| Maintenance Benefit | Fast sensor relocation |
| Product Family | IFM Vibration Monitoring Accessories |
