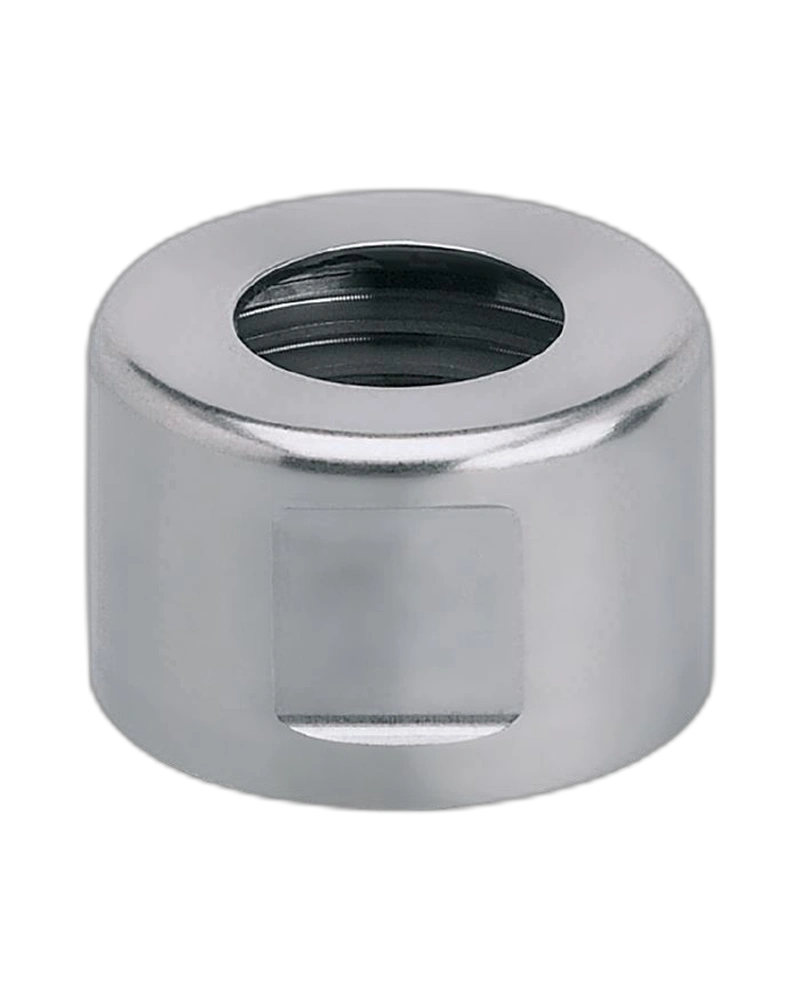

The IFM E30091 is a stainless-steel thread cover designed to protect G1/2 threaded connections used with compatible temperature sensors. It is intended particularly for installations in hygienic areas. The cover helps protect exposed threads when the connection is not being used. Its compact cylindrical design provides a neat and practical finishing solution.
Explore performance details, construction highlights, applications, and technical information in one clear overview.
The E30091 covers the G1/2 thread of compatible temperature sensor installations. This helps prevent the exposed connection from collecting contaminants or suffering mechanical damage. It provides a cleaner appearance around unused connection points. The accessory is especially useful during equipment installation and servicing.
The thread cover is designed for applications where temperature sensors are installed in hygienic areas. Its stainless-steel construction supports use in environments where cleanable and durable components are required. The cover provides a practical way of maintaining the connection area. It is suitable for compatible TR sensor designs.
The housing is made from stainless steel 1.4305 / 303. This gives the component suitable mechanical durability for industrial installations. The material also provides a professional finish for process equipment. Its compact construction allows convenient installation without adding significant bulk.
With a diameter of approximately 24 mm and a length of 15.5 mm, the E30091 is designed as a compact protective accessory. The small form factor allows it to fit around compatible G1/2 connections. It provides practical thread protection without requiring a large additional assembly.
Designed for G1/2 threaded connections
Suitable for TR temperature sensor types
Ideal for hygienic areas
Stainless steel construction
Protects exposed process threads
Compact 24 mm diameter design
Easy installation
Packaged as a single piece
Temperature sensor installations
Hygienic process equipment
Food and beverage machinery
Process instrumentation
Unused thread protection
Industrial temperature measurement systems
| Specification | Details |
|---|---|
| Product Code | E30091 |
| Product Name | Thread Cover for Temperature Sensors |
| Designation | THREAD COVER TR |
| Product Category | Temperature Sensor Accessories |
| Brand | IFM |
| Application | Thread protection |
| Suitable Sensor Type | TR temperature sensors |
| Thread Size | G1/2 |
| Connection Type | Thread cover |
| Cover Function | Protection of exposed sensor thread |
| Installation Area | Hygienic process applications |
| Housing Material | Stainless steel |
| Material Grade | 1.4305 / 303 |
| Outside Diameter | 24 mm |
| Overall Length | 15.5 mm |
| Construction | Cylindrical |
| Mounting Method | Threaded installation |
| Protection Purpose | Thread and connection protection |
| Weight | 20.5 g |
| Pack Quantity | 1 piece |
| Application Environment | Industrial / hygienic areas |
| Product Family | IFM Temperature Sensor Accessories |
